Contact for Pricing
Overview
- Hardware included

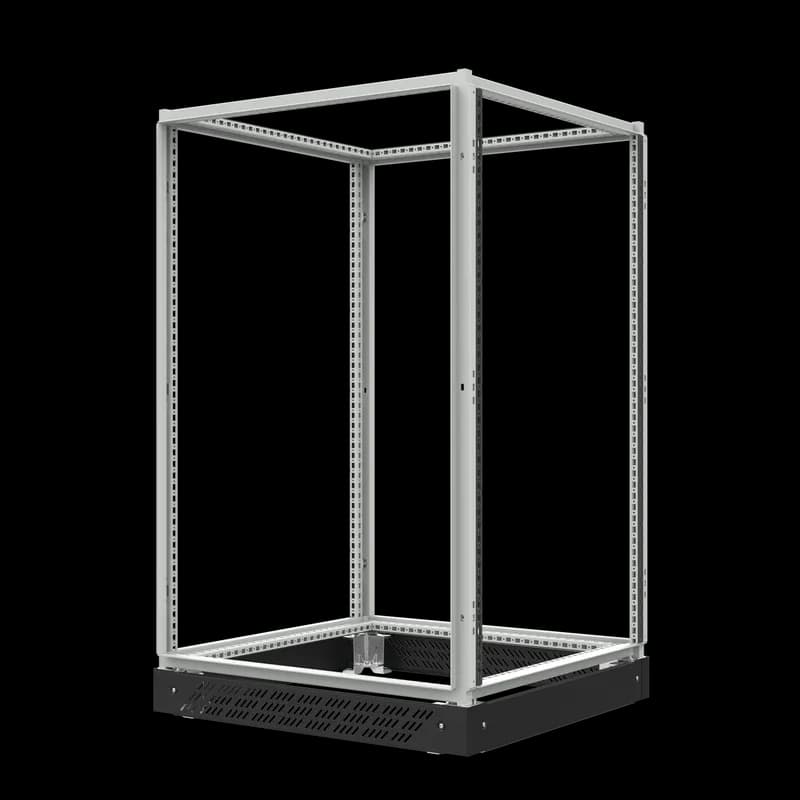

- Standard plinth base must be ordered in combination with Vented Plinth Base covers to form a Vented Plinth Base
- If a gland plate is needed, opt for a vented gland plate for optimum air flow
- Designed to fit 200x1000mm plinth base dimensions.
- Includes all necessary mounting hardware for straightforward installation.
Specifications
Application | Controls and Drives |
Color | Jet Black |
Color | Black |
Color Code | RAL 9005 |
Finish | Powder Coated |
Fits Frame Type | Single-Bay |
Fits Frame Width | 1,000 mm |
Material | Steel |
Material | Mild Steel |
Modification Services | Yes |
Mounting Type | Surface Mount |
Product Family | ProLine |
Size | 200x1000mm |
Size | fits 200x1000mm |
Thickness | 1.52 mm |
Thickness | 16 ga |
Type | External Mounting for ProLine Industrial Enclosures |
Weight | 18 lb |
Package Dimensions (L x W x H) | 40.25 IN x 13 IN x 2.75 IN |
Package Dimensions (L x W x H) | 102.235 cm x 33.02 cm x 6.985 cm |
Package Weight (Imperial) | 18.000 L |
Package Weight (Metric) | 8.165 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
How to Install the 100 mm Vented Plinth Base
This guide provides step-by-step instructions for replacing solid front and back panels with vented panels on a 100 mm plinth base.
Estimated time: 30m
Tools needed:
Screwdriver
Supplies needed:
Vented front panels, Vented back panels, Mounting screws
- Remove solid panels
Unscrew and remove the solid front and back panels from the 100 mm plinth base.
- Install vented front panel
Align the vented front panel with the mounting points on the plinth base and secure it using the provided mounting screws.
- Install vented back panel
Align the vented back panel with the mounting points on the plinth base and secure it using the provided mounting screws.
