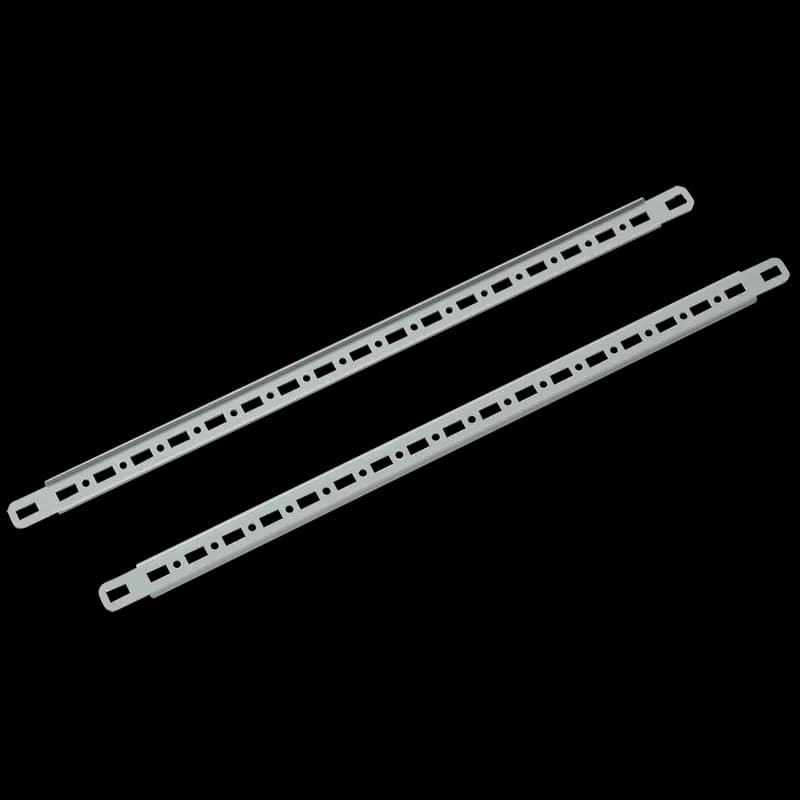

nVent PGH1S13 - Grid Straps for ProLine Frames 1-Row, 1300mm, Galvanized, Mild Steel
nVent

PGH1S13

UPC: 783510905200

Documents & Media
Installation Instructions

Contact for Pricing

Overview

Introducing the nVent ProLine Grid Straps (SKU: PGH1S13), a robust and versatile solution designed for secure cable management and equipment mounting in industrial and commercial environments. Engineered from high-quality galvanized mild steel, these grid straps provide exceptional corrosion resistance and structural integrity, ensuring long-term reliability even in demanding conditions. The 1300mm length and single-row hole pattern make them ideal for organizing and securing cables, conduits, or raceways on ProLine 1-row frames, while the specially designed rectangular holes accommodate cage nuts or front-loading cage nuts for flexible mounting options. Mounting holes are spaced at 25-mm centers, allowing precise alignment and easy installation with included hardware. These grid straps are furnished in pairs, providing a cost-effective solution for projects requiring multiple attachment points. The galvanized finish not only enhances durability but also ensures compatibility with a wide range of industrial applications, from data centers and telecommunications facilities to manufacturing plants and utility installations. Professionals in electrical, mechanical, and infrastructure sectors rely on nVent’s ProLine series for its engineering excellence and adherence to industry standards, making it a trusted choice for mission-critical applications. Key features of the nVent ProLine Grid Straps (PGH1S13) include: - **Galvanized mild steel construction** for superior corrosion resistance and strength. - **1300mm length** with a single-row hole pattern for versatile cable management. - **Rectangular holes** compatible with cage nuts or front-loading cage nuts, enabling quick and tool-free adjustments. - **25-mm center hole spacing** for precise alignment and secure mounting on ProLine frames. - **Included mounting hardware** for streamlined installation and reduced project downtime. The ProLine Grid Straps are part of nVent’s comprehensive portfolio of cable management and electrical solutions, trusted by engineers, contractors, and facility managers worldwide. Whether you’re retrofitting an existing system or designing a new installation, these grid straps deliver the performance and reliability required for high-density cable routing and equipment support. Their compatibility with ProLine frames ensures seamless integration, while the galvanized finish provides an added layer of protection against harsh environments. For professionals seeking a durable, easy-to-install solution for cable management, the nVent ProLine Grid Straps (PGH1S13) are an excellent choice. Their robust construction, flexible mounting options, and inclusion of necessary hardware make them a practical and efficient addition to any industrial or commercial project. Trust nVent’s legacy of innovation and quality to meet your cable management needs with confidence.
  • Can be mounted vertically between horizontally mounted Grid Straps
  • Can be mounted left-to-right horizontally between front-to-back pairs or from the sides of the ProLine frame
  • Can be mounted front-to-back horizontally across the bottom or sides of the ProLine frame
  • When mounting width-wise from vertical to vertical, the grid strap chosen must be 100mm greater than the nominal size (i.e. 800mm wide enclosure would take a 900mm grid strap in this orientation)
  • Furnished in pairs, and constructed from 14 gauge (1.75mm) conductive steel

Specifications

Application
Controls and Drives; Power Distribution
Color
Unpainted
Finish
Galvanized
Fits Frame Width
1,200 mm
Hole Pattern
One Row
Material
Mild Steel
Modification Services
No
Product Family
ProLine
Size
1142x25mm
Thickness
14 ga
Thickness
1.9 mm
Type
Internal Mounting for ProLine Industrial Enclosures
Weight
6.5 lb
Package Dimensions (L x W x H)
50.75 IN x 5.5 IN x 5 IN
Package Dimensions (L x W x H)
128.905 cm x 13.97 cm x 12.7 cm
Package Weight (Imperial)
6.500 L
Package Weight (Metric)
2.948 kg
