Contact for Pricing
Overview

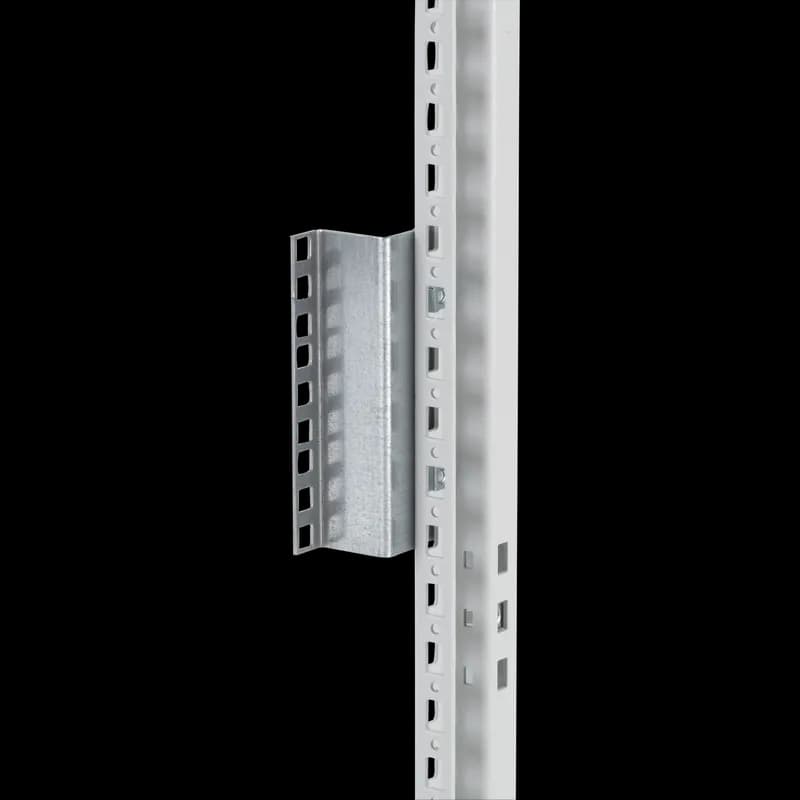

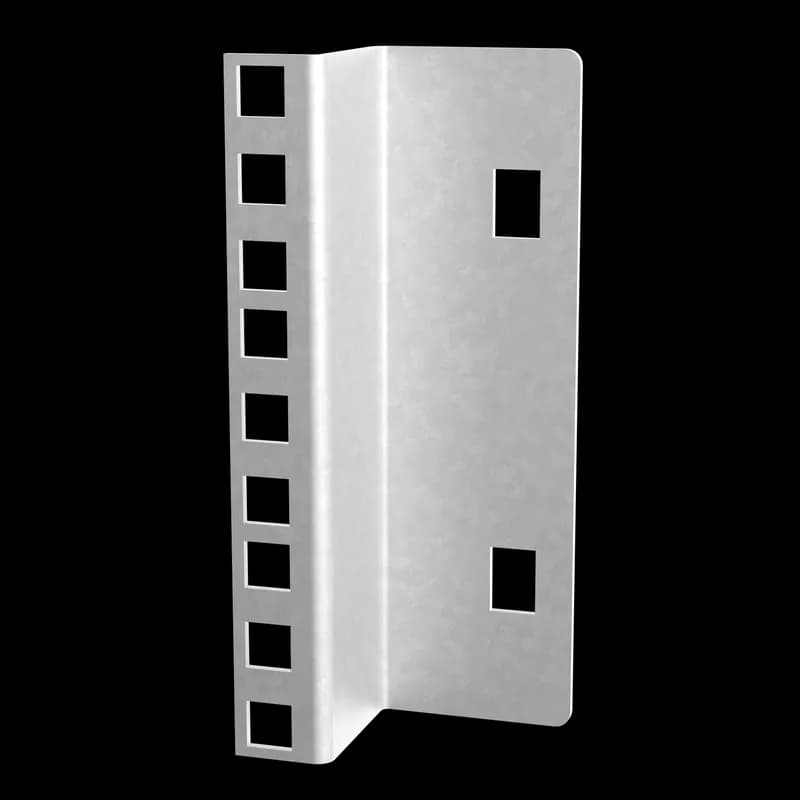

- Furnished in set of four; mounting hardware included
- 14 gauge (1.75 mm) conductive steel
- Designed for use within 700mm wide frames.
- Constructed from durable 14-gauge plated steel.
- Includes four brackets and all necessary mounting hardware.
Specifications
Application | Controls and Drives |
Color | Unpainted |
Finish | Galvanized |
Material | Mild Steel |
Material | Steel |
Modification Services | Yes |
Mounting Type | Direct frame mounting to ProLine frame |
Mounting Type | Mounts directly to ProLine frame |
Product Family | ProLine |
Series | ProLine |
Series | nVent ProLine |
Size | fits 700mm wide in |
Size | 24-in EIA Spacing, fits 700mm wide |
Thickness | 1.9 mm |
Thickness | 14 ga |
Type | Internal Mounting for ProLine Industrial Enclosures |
Weight | 1.5 lb |
Package Dimensions (L x W x H) | 6 IN x 6 IN x 4.25 IN |
Package Dimensions (L x W x H) | 15.24 cm x 15.24 cm x 10.795 cm |
Package Weight (Imperial) | 1.500 L |
Package Weight (Metric) | 0.680 kg |
