nVent PF20124 - Double-Bay Frames, 2000x1200x400
nVent

PF20124

UPC: 783510959203

Contact for Pricing

Overview

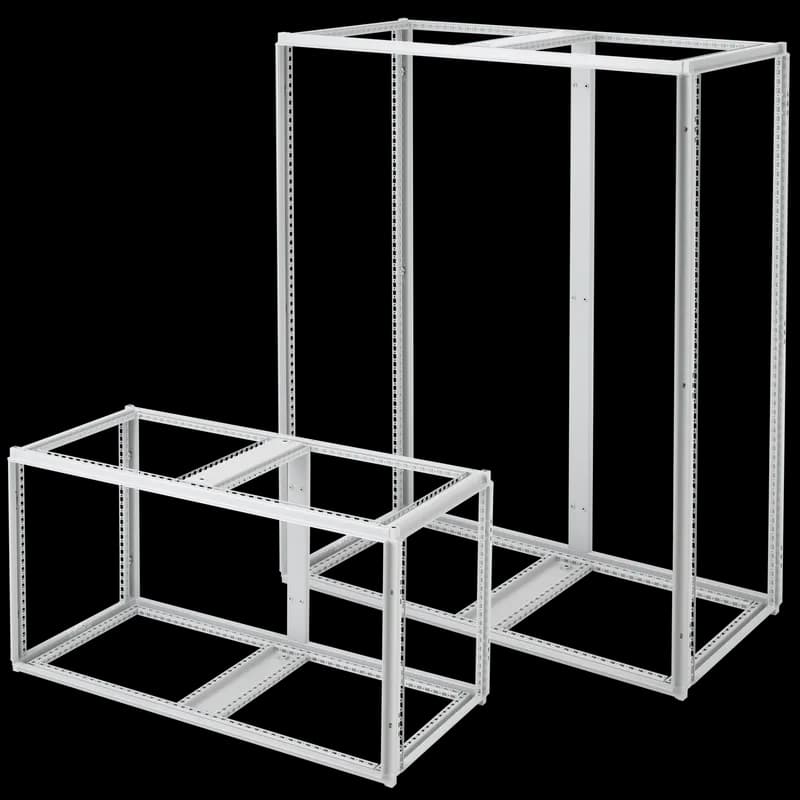

The nVent ProLine double-bay frame, model PF20124, is a foundational design element that protects the components inside this modular enclosure. The frame was designed to maintain a solid square structure, providing a solid foundation for the electrical enclosure. This double-bay frame is part of the ProLine series, which is known for its durability and versatility in various industrial applications. The nVent ProLine frame is ideal for use in electrical distribution, control, and automation systems. Some of the key features of this frame include: * A sturdy double-bay design for added strength and stability * A compact size of 2000x1200x400mm, making it suitable for a wide range of applications * Compatibility with a variety of enclosure accessories and components The ProLine frame is designed to meet the demands of industrial environments, where reliability and performance are crucial. nVent, a trusted manufacturer in the industry, has designed this frame to provide a secure and organized way to mount and protect electrical components. In addition to its technical specifications, the nVent ProLine frame is also designed with installation and maintenance considerations in mind. The frame's modular design allows for easy assembly and disassembly, making it simple to install and maintain. This is particularly important in industrial settings, where downtime can be costly and disruptive. The nVent ProLine double-bay frame is suitable for a variety of applications, including: * Electrical distribution and control systems * Automation and process control systems * Industrial control panels and motor control centers * Telecommunications and data communication systems When selecting a double-bay frame, professionals consider factors such as the frame's size, material, and compatibility with other components. The nVent ProLine frame is a popular choice among professionals due to its reputation for quality and reliability. With its sturdy design, compact size, and versatility, the nVent ProLine double-bay frame is an excellent choice for a wide range of industrial applications. Whether you're designing a new system or upgrading an existing one, the nVent ProLine frame is a reliable and trustworthy option. As a trusted manufacturer in the industry, nVent has a reputation for producing high-quality products that meet the demands of industrial environments. The ProLine frame is no exception, with its durable design and versatile features making it an ideal choice for professionals who require a reliable and efficient solution.
  • 12 gauge (2.5mm), roll-formed steel frame with welded steel corners
  • Open roll-formed profile design affords complete surface corrosion protection and assembly access
  • RAL 7035 textured light-gray polyester powder paint finish
  • Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
  • Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
  • Welded rear centerpost and cross members to facilitate population in either enclosure bay; no front center post allowing full access for subpanel mounting
  • Integral frame channels support the full weight of the mounting subpanel (sold separately)
  • Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
  • Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications; optional center upright to accomplish mounting in individual bays sold separately
  • Appropriate gasketed door(s) and covers are required to maintain a Type-12 environmental rating, sold separately

Specifications

Application
Power Distribution; Controls and Drives
Color
Light Gray
Color Code
RAL 7035
Finish
Powder Coated
IP Rating
IP55
Material
Mild Steel
Max Rack Mounting Space
42U x 2
Max Subpanel Size
1885 x 1130 mm
Max Subpanel Size
74.21 x 44.49 in
Modification Services
Yes
Nominal Frame Size
2000 x 1200 x 400 mm
Product Family
ProLine
Size
2000x1200x400mm
Thickness
12 ga
Thickness
2.66 mm
Type
Internal Mounting for ProLine Industrial Enclosures
Type Number
Type 12
Weight
114 lb
Package Dimensions (L x W x H)
54 IN x 26 IN x 83 IN
Package Dimensions (L x W x H)
137.16 cm x 66.04 cm x 210.82 cm
Package Weight (Imperial)
114.000 L
Package Weight (Metric)
51.710 kg
