Contact for Pricing

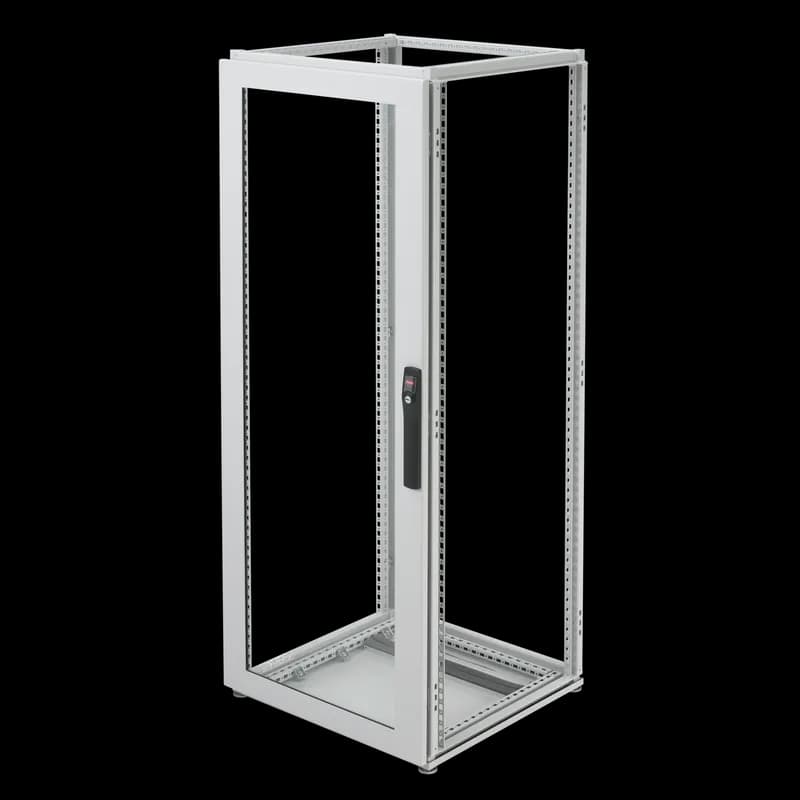

Overview
- Install easily on front or rear of enclosure frame; can be hinged on left or right
- Have two grounding brackets
- Have a .25-in.-thick window that provides maximum protection and viewing area
- Have foam-in-place urethane gaskets for door and window to provide optimum sealing
- Flush bezel latch with 3-point (or 2-point for 700mm) latching
- Flush bezel latch for secure, tamper-resistant access
- Compatible with NEMA 4X and IP66-rated enclosures
Specifications
Application | Controls and Drives |
Color | Light Gray |
Color | Aluminum |
Color Code | RAL 7035 |
Finish | Powder Coated |
Fits Frame | 2000 x 700 mm |
IP Rating | IP66 |
Material | Aluminum frame, Polycarbonate/Glass window |
Material | Mild Steel |
Modification Services | Yes |
Mounting Type | Flush-Mounted |
Nema Rating | NEMA 4X |
Product Family | ProLine |
Safety Glass | 76.34 x 27.28 in |
Safety Glass | 1939 x 693 mm |
Series | ProLine |
Size | fits 2000x700mm |
Size | 2000x700mm |
Thickness | 14 ga |
Thickness | 1.9 mm |
Type | External Mounting for ProLine Industrial Enclosures |
Weight | 38 lb |
Window Door Type | Mild Steel and Polycarbonate |
Window Size | 1818 x 546 mm |
Window Size | 71.56 x 21.48 in |
Package Dimensions (L x W x H) | 78 IN x 28 IN x 2 IN |
Package Dimensions (L x W x H) | 198.12 cm x 71.12 cm x 5.08 cm |
Package Weight (Imperial) | 38.000 L |
Package Weight (Metric) | 17.237 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
How to Install the PDWG86 Controller
This guide provides step-by-step instructions for installing and configuring the PDWG86 Controller on a DIN rail.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Mount the controller
Secure the PDWG86 controller to the DIN rail using the integrated clips. Ensure the controller is level and firmly attached.
- Connect the power supply
Using wire strippers, prepare the power supply wires and connect them to the designated terminals on the controller. Verify the connections are secure.
- Configure the controller settings
Power on the controller and use the interface to set the desired parameters. Follow the on-screen instructions to complete the initial configuration.
- Calibrate the controller
Perform a calibration check by following the calibration procedure outlined in the manual. Use a multimeter to verify output readings.
