Contact for Pricing

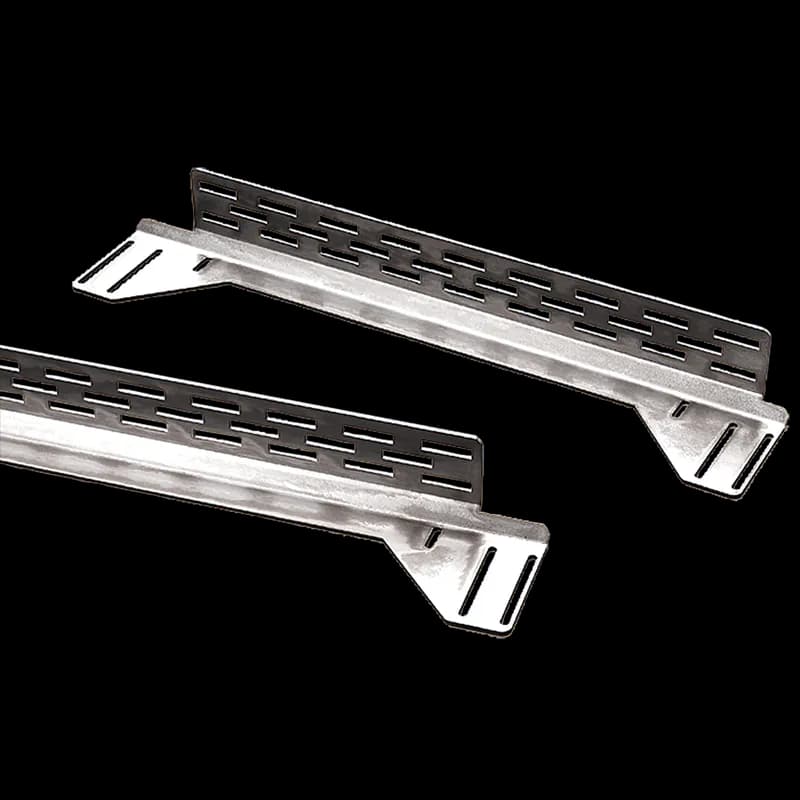

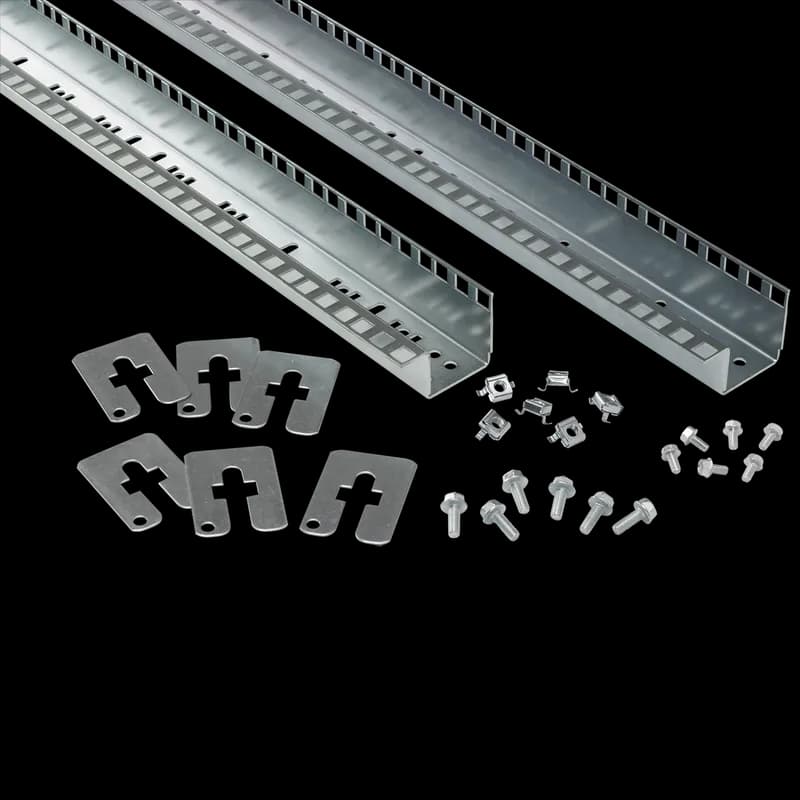

Overview
- Furnished in set of four, two right-hand and two left-hand; mounting hardware included
- Constructed of 12 gauge conductive steel; items ending in 'B' are RAL 9005 black
- Rails mount depth-wise (front-to-back)
- Includes two left-hand and two right-hand rails with mounting hardware
- Compatible with ProLine G2 and ProLine frames
Specifications
Application | Controls and Drives |
Color | Unpainted |
Finish | Plated |
Fits Frame Depth | 800 mm |
Material | Mild Steel |
Material | Steel |
Modification Services | Yes |
Mounting Type | Rack-Mounting |
Product Family | ProLine |
Series | ProLine |
Series | nVent ProLine |
Size | 800mm |
Size | fits 800mm deep in |
Size | 800mm deep |
Thickness | 12 ga |
Thickness | 2.66 mm |
Type | Internal Mounting for ProLine Industrial Enclosures |
Weight | 11.3 lb |
Package Dimensions (L x W x H) | 32.5 IN x 5.5 IN x 4.7 IN |
Package Dimensions (L x W x H) | 82.55 cm x 13.97 cm x 11.938 cm |
Package Weight (Imperial) | 11.300 L |
Package Weight (Metric) | 5.126 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
How to Install Adjustable Rack Angle Brackets
This guide provides step-by-step instructions for installing adjustable rack angle brackets to ensure proper alignment and secure mounting.
Estimated time: 30m
Tools needed:
Drill, Screwdriver
Supplies needed:
M5x10 screws, M6x16 screws, Drilling template
- Center the rack angle
Position the rack angle vertically in the frame and trace the top and middle row slots onto the rack angle.
- Drill holes
Remove the rack angle and drill 0.25 inch (6mm) diameter holes at the marked locations. Ensure that the holes are vertically aligned.
- Repeat for other angles
Follow the same procedure for the other end of the rack angle and for all other rack angles as needed.
