Overview

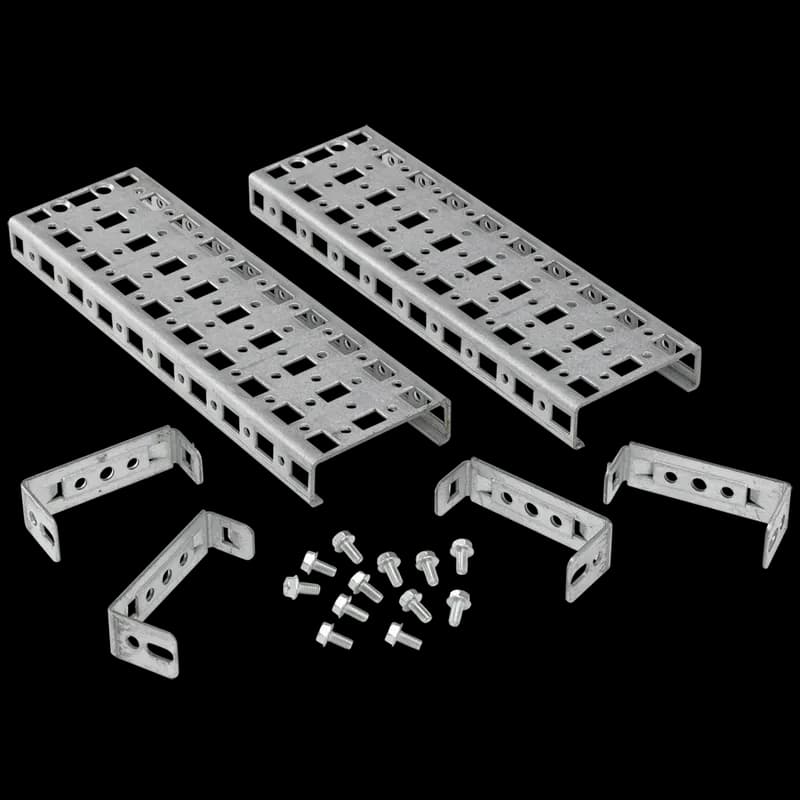

- Quick installation of grid strap(s) using the patented front-load BV-M6 fastener (Blind, Variable M6 screw based fastener), which is an innovative alternative to cage nuts or self-tapping screws
- Mounting hole pattern is 25-mm on center, alternating round and rectangular holes to accommodate various hardware: rectangular holes accept BV-M6 fasteners or front-loading cage nuts
- Horizontal grid straps are offered in both 1-row and 3-row configurations, as well as bracket or tabbed (single-piece) mounting options
- Width-mounting Grid Straps requires an increase in length of 100mm over the nominal frame width (i.e. 600mm wide enclosure requires 700mm grid strap)
- Horizontal, Bracket-Mount Grid Straps: Mounting brackets are installed using a single BV-M6 (or front-loading cage nut) per bracket. Grid Strap hooks onto the mounted brackets, and snaps into place for easy installation; this design Grid Strap can be moun
- Horizontal, Tab-Mount, Single-Piece Grid Straps: Grid Strap is constructed from a single piece, with a jogged tab that allows the Grid Strap to sit flush with the frame; this design Grid Strap should not be used when mounting vertically between other Grid
- Furnished in pairs, and constructed from 14 gauge (1.75mm) conductive steel
Specifications
Application | Controls and Drives; Power Distribution |
Color | Unpainted |
Finish | Galvanized |
Fits Frame Depth | 800 mm |
Material | Mild Steel |
Product Family | ProLine |
Thickness | 14 ga |
Thickness | 1.9 mm |
Type | Internal Mounting for ProLine Industrial Enclosures |
Weight | 2.66 lb |
Package Dimensions (L x W x H) | 39.13 IN x 5.5 IN x 5 IN |
Package Dimensions (L x W x H) | 99.3902 cm x 13.97 cm x 12.7 cm |
Package Weight (Imperial) | 2.660 L |
Package Weight (Metric) | 1.207 kg |
