nVent P2G1RT10 - ProLine G2 Grid Strap, 1-Row, Tab-Mnt, 1000mm, Steel
nVent

P2G1RT10

UPC: 783510361679

Documents & Media
Installation Instructions

Contact for Pricing

Overview

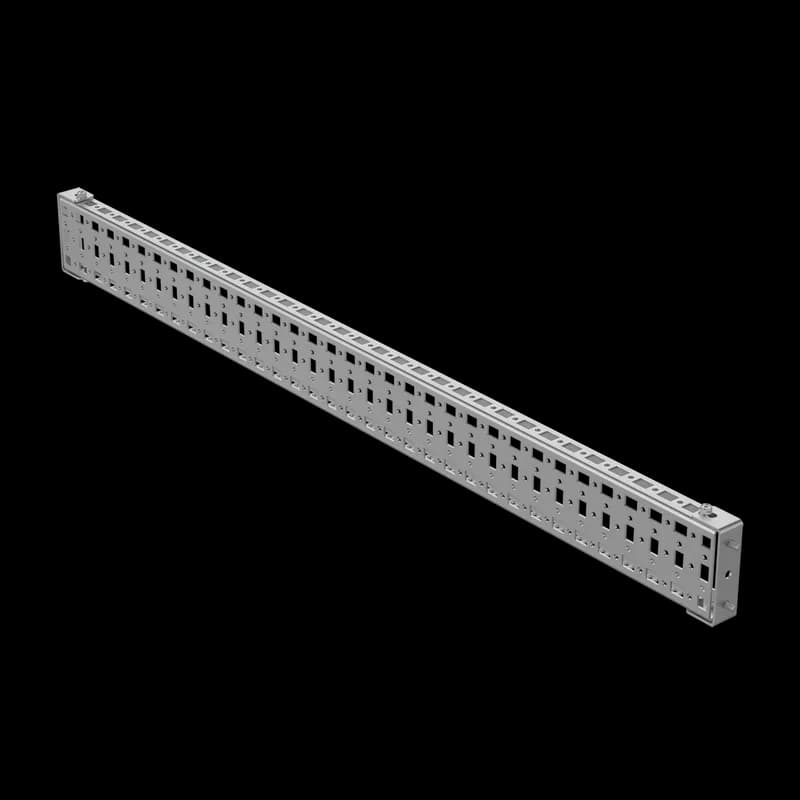

The nVent ProLine G2 Grid Strap (SKU: P2G1RT10) is a robust steel component designed to enhance the structural integrity and mounting capabilities within industrial enclosures. Manufactured by nVent, a recognized leader in electrical enclosure solutions, this 1000mm grid strap is engineered for reliability and versatility in demanding environments. Its primary function is to create a flexible and secure mounting or support network directly within the frame of an enclosure, allowing for customized organization and attachment of various electrical and electronic components. Furnished in pairs, ProLine G2 Grid Straps are available in multiple configurations to suit diverse application needs. The P2G1RT10 model features a single-piece horizontal design with integrated tabs, facilitating straightforward tab-mounting installations. This design is particularly advantageous for creating horizontal support structures between frame verticals, enabling both front-to-back (depth-mounted) and side-to-side (width-mounted) configurations. Furthermore, these horizontal straps can be vertically positioned between other grid straps, offering unparalleled flexibility in internal enclosure layout. Key benefits of integrating nVent ProLine G2 Grid Straps into your enclosure system include: * **Enhanced Mounting Versatility:** Easily create custom mounting points for a wide array of equipment, from cable management accessories to control panels and power distribution units. * **Structural Reinforcement:** Adds rigidity to the enclosure frame, improving its overall load-bearing capacity and resistance to vibration. * **Simplified Installation:** The tab-mount design of the P2G1RT10 model allows for quick and secure attachment without the need for specialized tools or hardware. * **Optimized Space Utilization:** Enables efficient use of internal enclosure space by providing structured support for components, reducing clutter and improving accessibility. * **Durable Construction:** Made from high-quality steel, ensuring longevity and performance in harsh industrial settings, including those with significant temperature fluctuations or exposure to corrosive elements. These grid straps are integral to building organized and functional electrical enclosures for a multitude of industries, including manufacturing, automation, telecommunications, and power generation. Their ability to adapt to various mounting orientations makes them ideal for complex control cabinets, server racks, and power distribution panels. The nVent ProLine G2 series is synonymous with quality and innovation, providing professionals with the confidence that their critical infrastructure is supported by dependable components. The P2G1RT10, with its 1000mm length and tab-mount design, offers a practical solution for creating robust internal support systems, ensuring that equipment is securely housed and easily maintained.
  • Quick installation of grid strap(s) using the patented front-load BV-M6 fastener (Blind, Variable M6 screw based fastener), which is an innovative alternative to cage nuts or self-tapping screws
  • Mounting hole pattern is 25-mm on center, alternating round and rectangular holes to accommodate various hardware: rectangular holes accept BV-M6 fasteners or front-loading cage nuts
  • Horizontal grid straps are offered in both 1-row and 3-row configurations, as well as bracket or tabbed (single-piece) mounting options
  • Width-mounting Grid Straps requires an increase in length of 100mm over the nominal frame width (i.e. 600mm wide enclosure requires 700mm grid strap)
  • Horizontal, Bracket-Mount Grid Straps: Mounting brackets are installed using a single BV-M6 (or front-loading cage nut) per bracket. Grid Strap hooks onto the mounted brackets, and snaps into place for easy installation; this design Grid Strap can be moun
  • Horizontal, Tab-Mount, Single-Piece Grid Straps: Grid Strap is constructed from a single piece, with a jogged tab that allows the Grid Strap to sit flush with the frame; this design Grid Strap should not be used when mounting vertically between other Grid
  • Furnished in pairs, and constructed from 14 gauge (1.75mm) conductive steel

Specifications

Application
Controls and Drives; Power Distribution
Color
Unpainted
Finish
Galvanized
Fits Frame Depth
1,000 mm
Material
Steel
Material
Mild Steel
Mounting Type
Tab-Mounted
Mounting Type
Tab-mount
Product Family
ProLine
Series
ProLine G2
Size
1000mm
Thickness
14 ga
Thickness
1.9 mm
Type
Internal Mounting for ProLine Industrial Enclosures
Weight
3.41 lb
Package Dimensions (L x W x H)
39.13 IN x 5.5 IN x 5 IN
Package Dimensions (L x W x H)
99.3902 cm x 13.97 cm x 12.7 cm
Package Weight (Imperial)
3.410 L
Package Weight (Metric)
1.547 kg
