Contact for Pricing
Overview

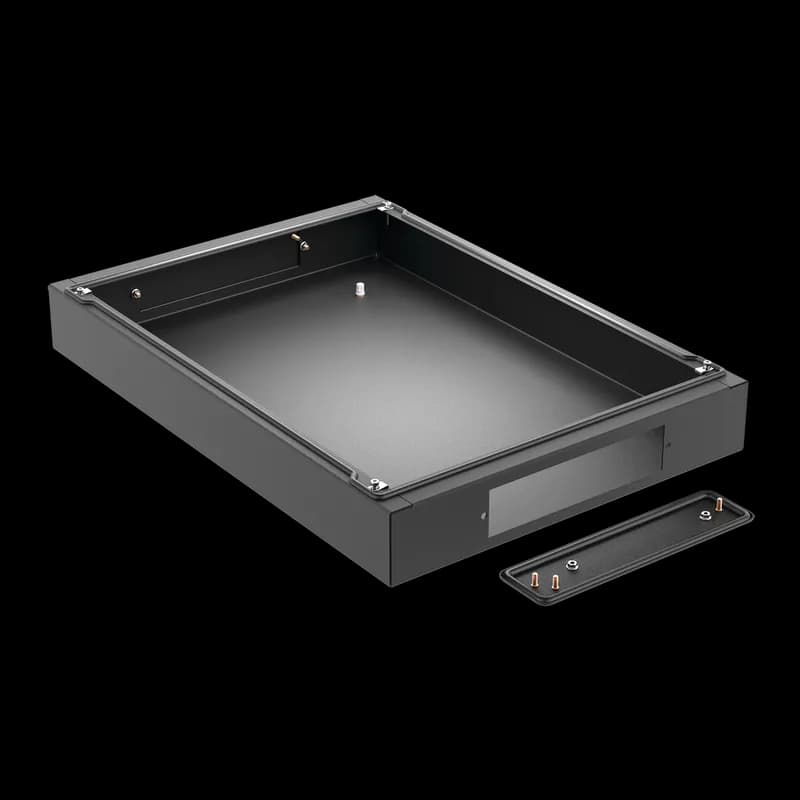

- Maintains NEMA 12 rating without requiring gland plate
- Two side gland plates for cable management options
- Seamless polyurethane gasket (UL component recognized) provides a water-tight, dust-tight seal against moisture and contaminants
- Optional Cable Entry Gland Plate for additional cable management solutions
- Welded corners
- Drill points for locating casters (not included)
- Installation hardware included
- Installation hardware included
Specifications
Application | Power Distribution; Controls and Drives |
Color | Jet Black |
Color Code | RAL 9005 |
Depth | 39.3 |
Depth | 999 |
Finish | Powder Coated |
Fits Frame | 1000x400 mm |
Height | 3.94 |
Height | 100 |
Material | Mild Steel |
Product Family | ProLine |
Thickness | 14 ga |
Thickness | 1.9 mm |
Type | External Mounting for ProLine Industrial Enclosures |
Weight | 29 lb |
Width | 14.4 |
Width | 365 |
Package Dimensions (L x W x H) | 42 IN x 17 IN x 6 IN |
Package Dimensions (L x W x H) | 106.68 cm x 43.18 cm x 15.24 cm |
Package Weight (Imperial) | 29.000 L |
Package Weight (Metric) | 13.154 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
How to Install the P2B1104 Controller
This guide provides step-by-step instructions for installing and configuring the P2B1104 Controller, ensuring proper wiring and setup.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Wire connectors
- Mount the controller
Secure the P2B1104 controller to the designated mounting surface using the provided mounting screws. Ensure it is level and firmly attached.
- Connect the power supply
Using wire connectors, connect the power supply wires to the designated terminals on the controller. Verify that the connections are secure and insulated.
- Configure initial settings
Power on the controller and access the configuration menu. Set the required parameters according to your application needs, and save the settings.
- Calibrate the controller
Follow the calibration procedure outlined in the manual to ensure accurate readings. Use a multimeter to verify output signals during calibration.
