Contact for Pricing
Overview

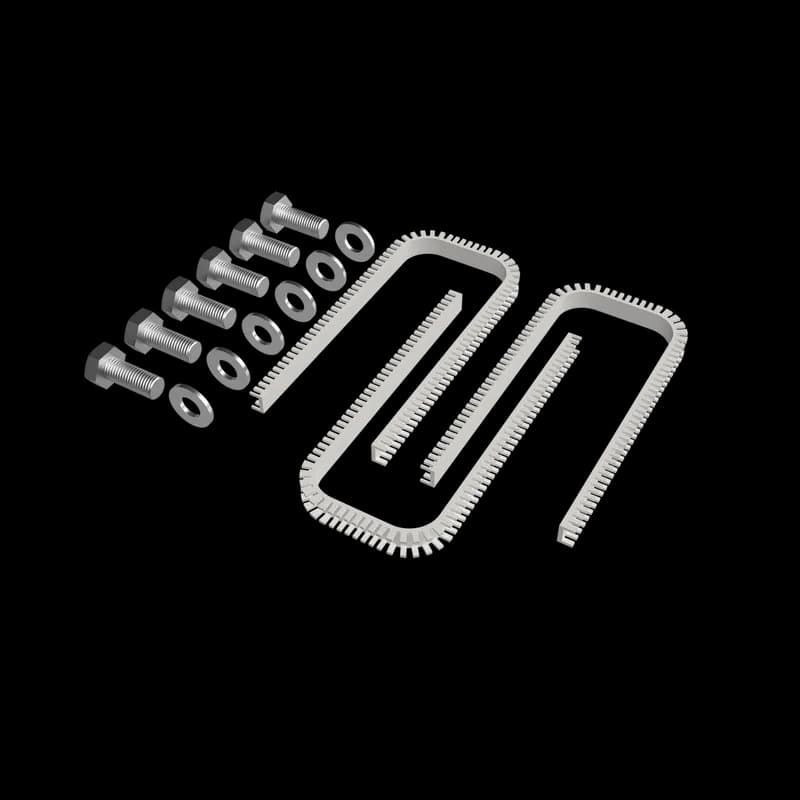

- P2AJ is the standard side-to-side joining solution for ProLine G2. Two unique gaskets are supplied in the kit: the L-shaped gasket mounts to the frame’s knife edge at the top and bottom; while the flat gasket mounts to the frame’s vertical rails. The supp

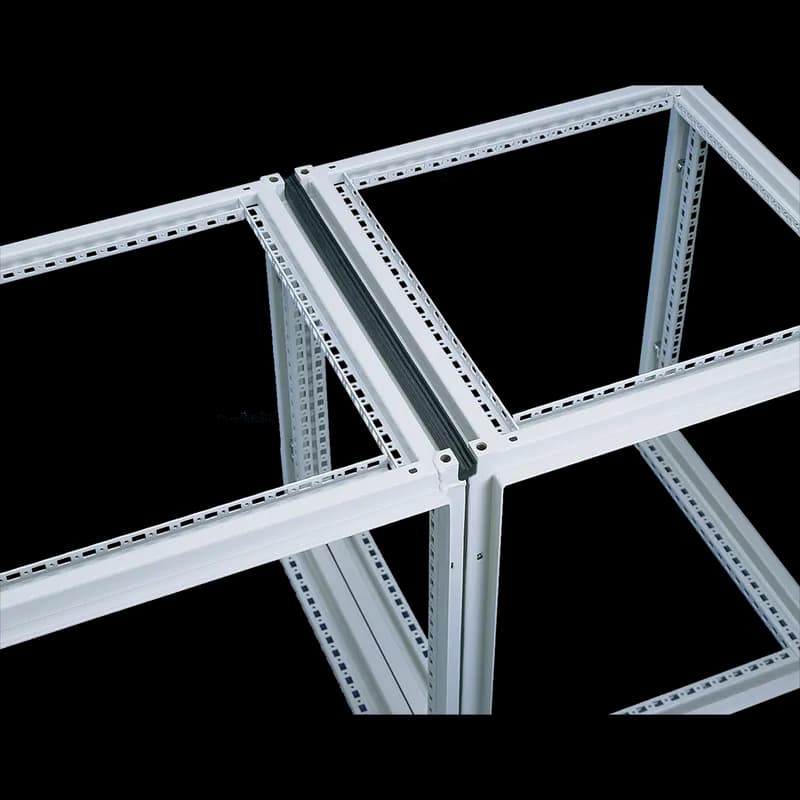

- P2AJJ relies on the same gasketing as P2AJ, but utilizes a new two-piece bracket that mounts between enclosures on the frame mounting holes. The two-piece nature of this bracket allows the user to bay enclosures for initial population, separate for transp
- P2AJF and P2AJS are designed for front-to-back and front-to-side joining respectively. P2AJS would be used in applications where a bayed-system makes a 90-degree turn in or around a corner.
- P2AJB is designed for top-to-bottom joining, where G2 enclosures are stacked vertically. Joining occurs through the opening in the top through the frames, so covers/barriers isolating the enclosures cannot be incorporated: this solution would not be recom
- P2AJP and P2AJR are designed for side-to-side joining of G2 enclosures to ProLine (Gen 1) and modular enclosures with a closed frame profile respectively. Please note that kits only accommodate solutions 2000Hx800D.
- P2AJHF is a side-to-side EMC joining kit where UL94HP-rated urethane foam gasket ensures proper metal to metal contact
Specifications
Application | Controls and Drives; Power Distribution |
Color | Black |
Finish | Smooth Matte |
Material | Rubber |
Mounting Type | Frame joining (baying) |
Product Family | ProLine |
Series | ProLine G2 |
Thickness | 5 mm |
Thickness | 0.19 in |
Type | External Mounting for ProLine Industrial Enclosures |
Weight | 1.38 lb |
Package Dimensions (L x W x H) | 19 IN x 15 IN x 3 IN |
Package Dimensions (L x W x H) | 48.26 cm x 38.1 cm x 7.62 cm |
Package Weight (Imperial) | 1.380 L |
Package Weight (Metric) | 0.626 kg |
