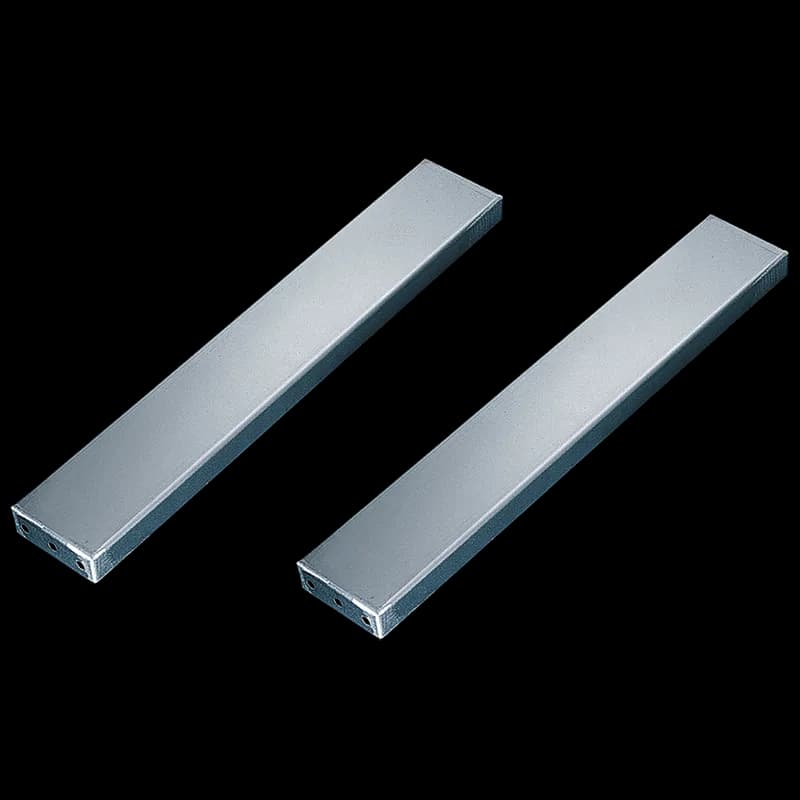

nVent P2ACB8 - ProLine G2 Support Bracket Kit, 800mm, Conductive, Steel
nVent

P2ACB8

UPC: 783510308346

Documents & Media
Installation Instructions

Contact for Pricing

Overview

Enhance the structural integrity of your nVent PROLINE G2 modular enclosures with the P2ACB8 Conductive Steel Support Bracket Kit. Designed to provide robust additional support, this kit is essential for applications involving heavy-duty components mounted on the sides or tops of your enclosure's mounting subpanels. The PROLINE G2 Panel Support Bracket is engineered to be installed in the vertical center sides of the PROLINE G2 Mounting Subpanel, offering a critical reinforcement point that significantly improves load-bearing capacity and stability. This is particularly crucial in demanding industrial environments where vibration and weight can compromise the performance and longevity of sensitive equipment. Each P2ACB8 kit includes a set of two brackets, ensuring comprehensive support across the depth of your modular enclosure. These brackets are constructed from conductive steel, a vital feature for maintaining electrical continuity and ensuring proper grounding within your system, which is paramount for safety and operational reliability. The installation process is designed for efficiency, attaching to the enclosure frame using the secure BV-M6 fastener and connecting to the subpanel with a hex bolt. All necessary mounting hardware is included, streamlining the setup and minimizing downtime. Beyond simply adding support, these panel support braces play a key role in minimizing vibration generated by components mounted on the panel. This reduction in vibration contributes to the overall stability of your enclosure's contents, protecting delicate electronics and ensuring consistent performance. The ability to install these braces on existing systems without the need to remove the panel further adds to their practicality and value, allowing for upgrades and enhancements with minimal disruption. Applications for the nVent P2ACB8 support bracket kit are widespread across various industries, including: * **Industrial Automation:** Supporting heavy PLCs, drives, and power supplies. * **Telecommunications:** Reinforcing racks and enclosures for critical network equipment. * **Data Centers:** Ensuring stability for servers and other high-density computing hardware. * **Energy Sector:** Providing reliable support for control systems in power generation and distribution. When selecting support solutions for your modular enclosures, the nVent PROLINE G2 system offers a comprehensive and reliable choice. The P2ACB8 kit, with its conductive steel construction and thoughtful design, exemplifies nVent's commitment to providing high-quality, durable, and effective solutions for complex industrial challenges. Trust nVent for enclosures and accessories that meet the highest standards of performance and safety.
  • Brackets provide additional support for large air conditioners or other heavy devices that can be mounted on ProLine G2 sides or tops
  • Can be positioned at various heights to accommodate any size air conditioner or device
  • Support brackets fit on the sides, top or base (along the depth) to provide two horizontal rigid supports
  • Furnished in pairs
  • Installation hardware included
  • Installation hardware included

Specifications

Application
Controls and Drives; Power Distribution
Color
Unpainted
Finish
Plated
Fits Frame Depth
800 mm
Length
656 mm
Length
25.8 in
Material
Mild Steel
Material
Conductive Steel
Mounting Type
BV-M6 fastener and hex bolt
Product Family
ProLine
Series
nVent ProLine G2
Size
800mm
Thickness
14 ga
Thickness
1.5 mm
Type
External Mounting for ProLine Industrial Enclosures
Weight
6 lb
Package Dimensions (L x W x H)
43.25 IN x 5.5 IN x 5 IN
Package Dimensions (L x W x H)
109.855 cm x 13.97 cm x 12.7 cm
Package Weight (Imperial)
6.000 L
Package Weight (Metric)
2.722 kg
