Overview

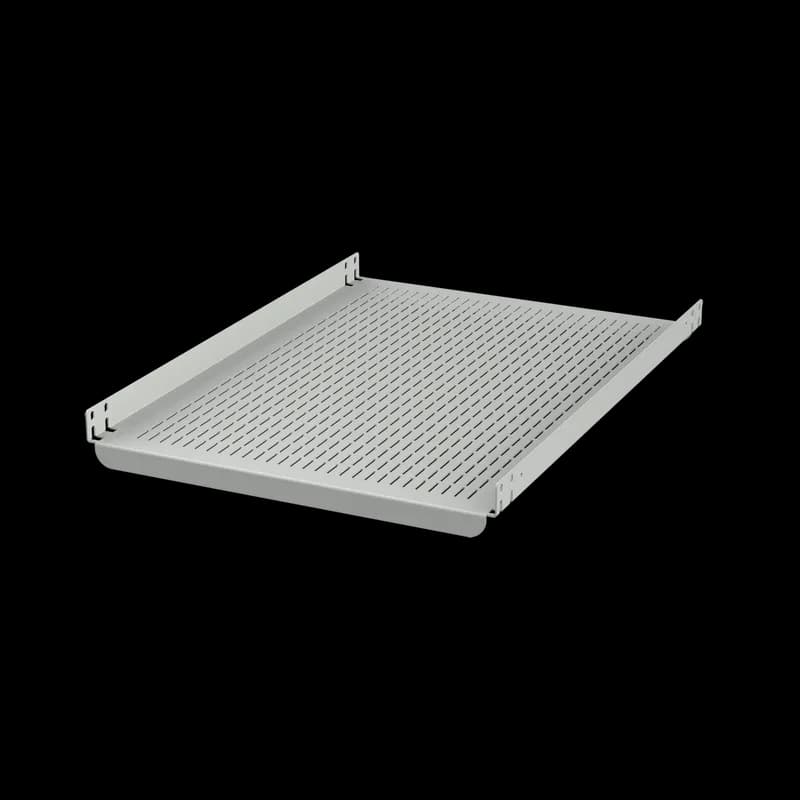

- 23-inch (800mm) fixed shelf for 19-inch rack systems
- 150 lb (68 kg) static load capacity
- 12-gauge steel supports with light gray powder-coated finish
- Mounts to front and rear rack angles for stability
- Ventilation slots and cable management cutouts included
Specifications
Application | Controls and Drives |
Color | Light Gray |
Color Code | RAL 7035 |
Finish | Powder Coated |
Fits Rack Width | 23 in. in |
Material | Mild Steel |
Modification Services | No |
Product Family | ProLine |
Size | fits 23 in Rack A in |
Thickness | 14 ga |
Thickness | 1.9 mm |
Type | Internal Mounting for ProLine Industrial Enclosures |
Weight | 16 lb |
Package Dimensions (L x W x H) | 27 IN x 24.25 IN x 3 IN |
Package Dimensions (L x W x H) | 68.58 cm x 61.595 cm x 7.62 cm |
Package Weight (Imperial) | 16.000 L |
Package Weight (Metric) | 7.258 kg |
