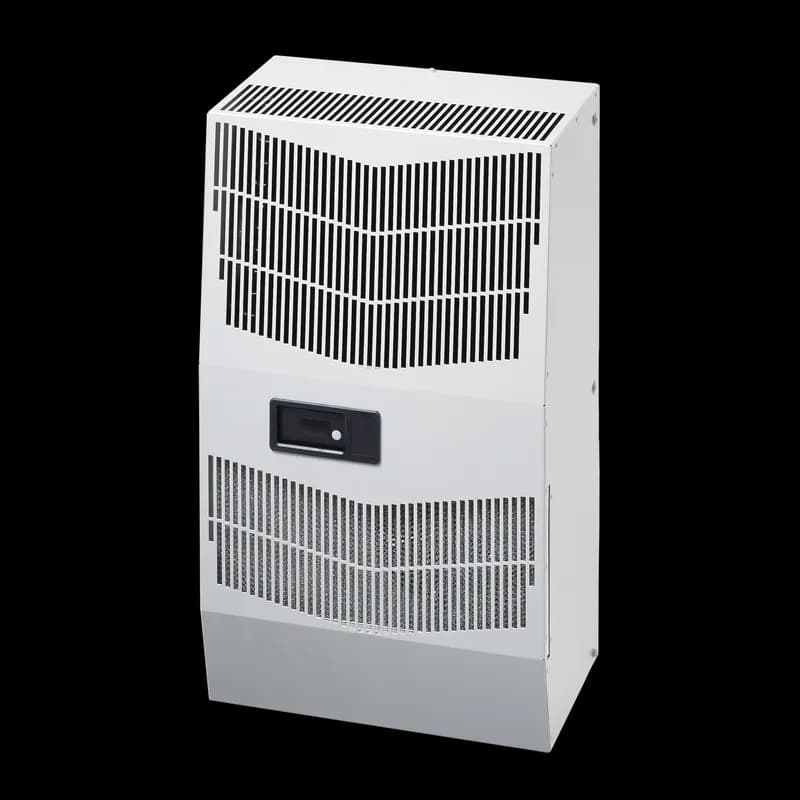

Overview
- Narrow design accommodates 12-inch (300-mm) deep cabinets
- Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Attractive industrial design with minimal use of visible fasteners
- Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Narrow design accommodates 12-inch deep cabinets
- R407C, R513A or R134a refrigerants
- Models for 115, 230 and 400/460 3-phase VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
- Reliable mechanical thermostat on enclosure side of the unit; indoor air conditioner models include digital display on ambient side
Specifications
Ambient Temperature | 40 Deg C |
Ambient Temperature | -40-131 °F |
Amperage Rating | 8.6/9.4 A |
Application | Controls and Drives;Power Distribution |
Btu Rating | 6,000 |
Color | Light Gray |
Color | Gray |
Color Code | RAL 7035 |
Corrosion Resistant | No |
Depth | 14 in |
Depth | 356 mm |
Finish | Powder Coated |
Frequency Rating | 50/60 Hz |
Frequency Rating, Maximum | 60 Hz |
Frequency Rating, Minimum | 50 Hz |
Height | 36 in |
Height | 914 mm |
Material | Mild Steel |
Max Current | 9.4 A |
Mechanical Advantage | Galvanized Sheet Metal Standard (Optional: Stainless Steel) |
Mounting | Side wall |
NEMA Rating | 4 Watertight |
Nominal Capacity Btu/h | 6,000 Btu/h |
Nominal Capacity Watts | 1,757 W |
Nominal Voltage | 115 V |
Number Of Phases | 1 |
Operating Temperature | -40-131 |
Operating Temperature | -40-55 |
Operating Temperature | -40-55 °C |
Outdoor Installation | Yes |
Power | 914/1074 W |
Product Family | SpectraCool |
Protection Rating | NEMA Type 4 |
Refrigerant | R513A |
Remote Access Control | No |
Thickness | 1.21 mm |
Thickness | 18 ga |
Thickness | 51.40mm (2.024") |
Type | Air Conditioners |
Voltage AC | 100-120 V |
Voltage Rating | 115 V |
Weight | 114 lb |
Weight | 45 kg |
Width | 292 mm |
Width | 11.5 in |
Package Dimensions (L x W x H) | 18 IN x 14 IN x 38 IN |
Package Dimensions (L x W x H) | 45.72 cm x 35.56 cm x 96.52 cm |
Package Weight (Imperial) | 114.000 L |
Package Weight (Metric) | 51.710 kg |
How to Install the N360826G050 Air Conditioner
This guide provides step-by-step instructions for installing and configuring the N360826G050 air conditioner, ensuring proper functionality and safety.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors, Mounting gasket kit
- Inspect the air conditioner
Check for any visible damage and verify functionality before proceeding with the installation. Ensure the unit is upright for at least five minutes before operation.
- Install mounting gaskets
Using the mounting gasket kit provided, attach the gaskets to the air conditioner to ensure a watertight seal.
- Mount the air conditioner
Securely mount the air conditioner onto the enclosure, taking care not to damage the installed gaskets. Avoid dragging the unit to prevent tearing the gaskets.
- Wire the air conditioner
Refer to the nameplate for electrical requirements and connect the unit to a properly grounded power supply using copper conductors. Ensure the circuit is fused with a slow blow or HACR circuit breaker.
- Connect the thermostat
If required, wire the remote mounted thermostat outputs to the appropriate terminals on the 24 VAC terminal strip, following the wiring diagram provided.
- Set the thermostat
Adjust the thermostat to the desired cabinet temperature, ensuring it is set within the operational parameters outlined in the Sequence of Operation.
- Test the air conditioner
After wiring and configuration, power on the unit and verify that the evaporator blower starts running. Allow the compressor to operate for 5-10 minutes to ensure proper cooling.
