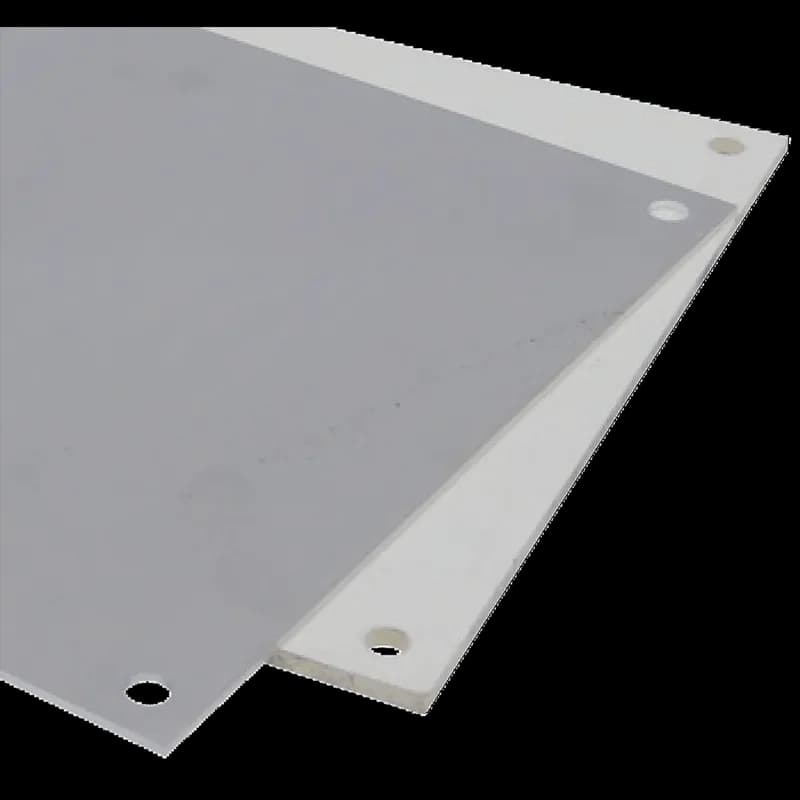

Overview
- Include a labeled ground hole sized for an M6 screw
- Panels mount on studs provided in the enclosure or to optional DIN mounting brackets
- Dimensions: 211mm x 751mm (8.31 x 29.57 in.)
- Features a labeled M6 ground hole
- Includes external welded-on mounting brackets for easy installation
Specifications
Application | Controls and Drives |
Color | White |
Color | Unpainted |
Color | White or Conductive |
Finish | Galvanized |
Height | 211 mm |
Height | 8.31 in |
IP Rating | IP66 |
Material | 12-gauge steel |
Material | Steel |
Material | Mild Steel |
Modification Services | Yes |
Mounting Type | External welded-on mounting brackets |
Mounting Type | Inline mounting with welded brackets |
Nema Rating | Type 3/4/12 |
Panel Size | 8.31 x 29.57 in |
Panel Size | 211 x 751 mm |
Product Family | InLine |
Series | nVent HOFFMAN |
Series | Hoffman |
Size | 211 x 751 mm |
Size | fits 230x770mm |
Thickness | 2.66 mm |
Thickness | 12 ga |
Type | Industrial Panels and Panel Accessories |
Weight | 7.4 lb |
Width | 29.57 in |
Width | 751 mm |
Works With | NEMA |
Package Dimensions (L x W x H) | 32.25 IN x 12 IN x 0.25 IN |
Package Dimensions (L x W x H) | 81.915 cm x 30.48 cm x 0.635 cm |
Package Weight (Imperial) | 7.400 L |
Package Weight (Metric) | 3.357 kg |
