nVent LLB252512 - Solid-Back Body for InLine HMI Type 4, fits 250x250mm, Lt Gray, Steel
nVent

LLB252512

UPC: 783510499402

Contact for Pricing

Overview

The nVent LLB252512 is a 16-gauge steel solid-back body enclosure designed for InLine Human-Machine Interface (HMI) components. Measuring 250x250x102 mm (9.84x9.84x4.02 in.), this light gray, powder-coated steel enclosure offers robust protection suitable for Type 4 applications. Its open front is configured to accept optional fixed bezels, deep-hinged windows, or fixed windows, allowing for flexible HMI integration. Panels or DIN rails can be mounted on studs located in the rear of the enclosure, simplifying component arrangement and wiring. A ground stud is furnished. Drill points on the enclosure mark locations for pendant or pedestal mounting. This enclosure is ideal for industrial automation, control, and monitoring systems where reliable HMI protection is essential. Compatible with nVent accessories such as LP2520 panels and LMK20/LMK25 mounting brackets. The enclosure meets UL 508A, cUL, NEMA Type 4, 12, 13, and IEC 60529 IP66 standards.
  • Ground stud furnished
  • Drill points on enclosure mark location for pendant or pedestal mounting
  • Rear-mounted studs for panel or DIN rail installation
  • Ground stud and drill points for pendant/pedestal mounting
  • Meets UL 508A, cUL, NEMA Type 4/12/13, and IEC 60529 IP66 standards

Specifications

Application
Controls and Drives
Color
Light Gray
Color
LtGray
Color Code
RAL 7035
Depth
4.02
Depth
102
Depth
102 mm
Finish
Powder Coated
Height
250 mm
Height
9.84
Height
250
IP Rating
IP66
Material
Mild Steel
Material
Steel
Modification Services
Yes
Mounting Type
Pendant or pedestal mounting
Mounting Type
Studs in rear
Nema Rating
Type 4
Product Family
InLine
Protection Rating
IP66
Series
InLine HMI
Size
250x250x102
Size
250x250x102 mm (9.84x9.84x4.02 in.)
Size
fits 250x250mm
Thickness
1.52 mm
Thickness
16 ga
Type
HMI Enclosure Systems
Type Number
Type 4
Weight
5 lb
Width
9.84
Width
250
Width
250 mm
Package Dimensions (L x W x H)
10.5 IN x 7.75 IN x 11 IN
Package Dimensions (L x W x H)
26.67 cm x 19.685 cm x 27.94 cm
Package Weight (Imperial)
5.000 L
Package Weight (Metric)
2.268 kg
Solid-Back Body for InLine HMI Type 4, fits 166x160mm, Lt Gray, Steel

LLB161612

Solid-Back Body for InLine HMI Type 4, fits 166x160mm, Lt Gray, Steel

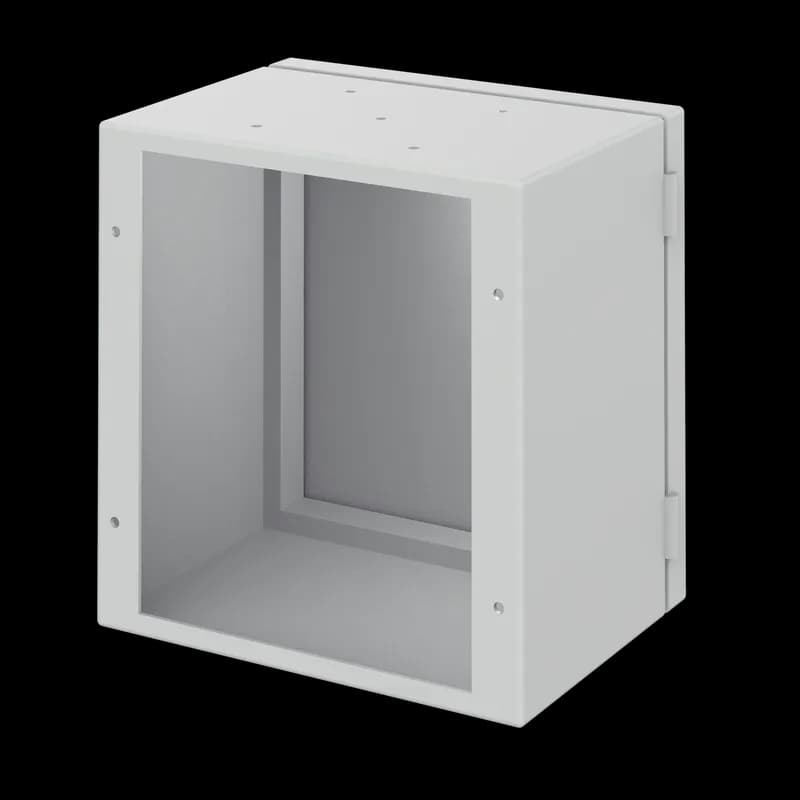

Rear-Access Body for InLine HMI Type 4, fits 250x250mm, Lt Gray, Steel

LLBR252512

Rear-Access Body for InLine HMI Type 4, fits 250x250mm, Lt Gray, Steel
Rear-Access Body for InLine HMI Type 4, fits 166x160mm, Lt Gray, Steel

LLBR161612

Rear-Access Body for InLine HMI Type 4, fits 166x160mm, Lt Gray, Steel
Concept HMI Enclosure Blue Handle Type 4, 300x400x120mm, Light Gray, Mild Steel

CP304012B

Concept HMI Enclosure Blue Handle Type 4, 300x400x120mm, Light Gray, Mild Steel

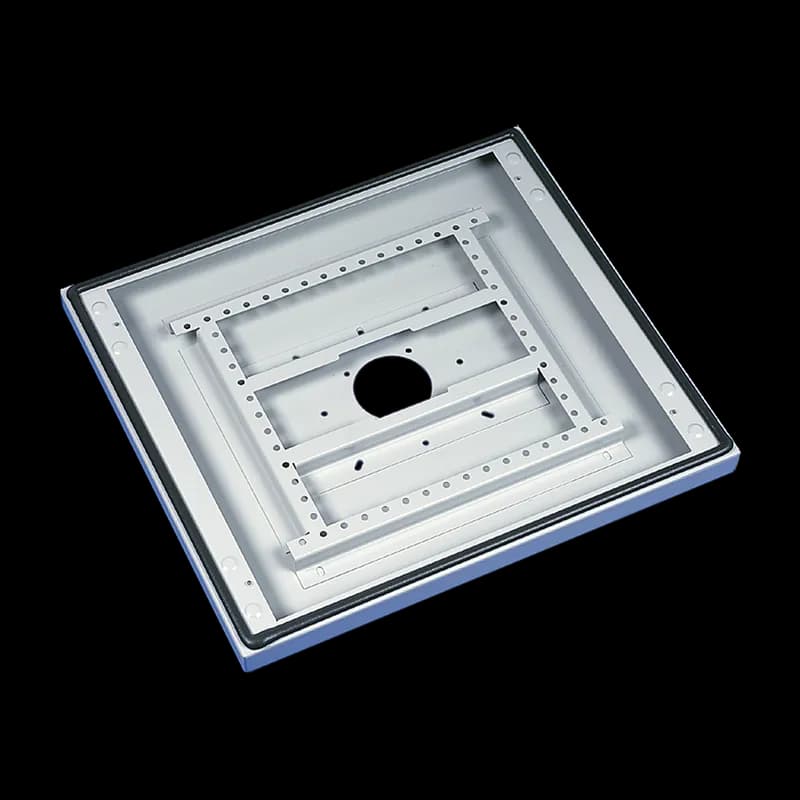

Base with Cutout for ProLine Sloped Front HMI, fits 600x600mm, Lt Gray, Steel

PBSK66

Base with Cutout for ProLine Sloped Front HMI, fits 600x600mm, Lt Gray, Steel
Concept HMI Enclosure Blue Handle Type 4, 250x350x120mm, Light Gray, Mild Steel

CP253512B

Concept HMI Enclosure Blue Handle Type 4, 250x350x120mm, Light Gray, Mild Steel
Concept HMI Enclosure Black Handle Type 4, 250x350x120mm, Light Gray, Mild Steel

CP253512

Concept HMI Enclosure Black Handle Type 4, 250x350x120mm, Light Gray, Mild Steel
Concept HMI Enclosure Black Handle Type 4, 300x400x120mm, Light Gray, Mild Steel

CP304012

Concept HMI Enclosure Black Handle Type 4, 300x400x120mm, Light Gray, Mild Steel
Concept HMI Enclosure Black Handle Type 4, 320x350x120mm, Light Gray, Mild Steel

CP323512

Concept HMI Enclosure Black Handle Type 4, 320x350x120mm, Light Gray, Mild Steel
Concept HMI Enclosure Blue Handle Type 4, 320x350x120mm, Light Gray, Mild Steel

CP323512B

Concept HMI Enclosure Blue Handle Type 4, 320x350x120mm, Light Gray, Mild Steel
Concept HMI Enclosure Black Handle Type 4, 350x450x120mm, Light Gray, Mild Steel

CP354512

Concept HMI Enclosure Black Handle Type 4, 350x450x120mm, Light Gray, Mild Steel
Concept HMI Enclosure Blue Handle Type 4, 350x450x120mm, Light Gray, Mild Steel

CP354512B

Concept HMI Enclosure Blue Handle Type 4, 350x450x120mm, Light Gray, Mild Steel
