nVent G800SMP425H - Half-Height Side Panel, 800x425xmm, Steel
nVent

G800SMP425H

UPC: 783510191146

Documents & Media
Installation Instructions

Contact for Pricing

Overview

The nVent G800SMP425H Half-Height Side Panel is a robust and reliable component engineered for demanding industrial environments. Constructed from high-quality steel, this panel offers exceptional durability and structural integrity, making it an ideal choice for protecting sensitive equipment within enclosures, cabinets, and custom housings. Its specific dimensions of 800mm in height and 425mm in width are designed to integrate seamlessly into standard industrial configurations, providing efficient space utilization. The half-height design of the G800SMP425H is a key functional advantage. This configuration facilitates easier access to internal components for maintenance, upgrades, or troubleshooting without requiring the removal of a full-height panel. This not only streamlines operational workflows but also minimizes downtime, a critical factor in industrial settings. Despite its reduced height, the panel maintains significant structural support, ensuring the overall stability and security of the enclosure. Manufactured by nVent, a globally recognized leader in electrical enclosure solutions, the G800SMP425H benefits from the company's extensive expertise in designing products that withstand harsh conditions. The steel construction is typically finished with a protective coating, such as galvanization, to provide superior resistance against corrosion and environmental degradation. This makes the panel suitable for a wide array of applications, including: * **Electrical Control Panels:** Safeguarding control systems, PLCs, and power distribution units. * **Telecommunications Equipment:** Housing critical network infrastructure and communication devices. * **Industrial Automation:** Protecting sensors, drives, and other automation components. * **Data Centers:** Providing secure and organized housing for IT equipment. * **Harsh Environments:** Applications exposed to moisture, dust, or corrosive elements. The UNSPSC code 39121321 categorizes this product under 'Enclosure panels,' underscoring its primary function in building and securing industrial enclosures. Professionals in electrical engineering, panel building, and system integration will appreciate the straightforward installation process and the dependable performance this nVent side panel delivers. Its robust build quality ensures longevity and consistent protection, contributing to the overall reliability and safety of industrial installations. When selecting components for critical infrastructure, the nVent G800SMP425H Half-Height Side Panel stands out as a dependable and cost-effective solution for ensuring the integrity and accessibility of your equipment.
  • Durable steel construction for robust protection
  • Half-height design for easy access and maintenance
  • Dimensions: 800mm (H) x 425mm (W)
  • Corrosion-resistant finish for harsh environments
  • Ideal for electrical, telecom, and industrial enclosures

Specifications

Application
Controls and Drives
Color
Unpainted
Finish
Galvanized
Fits
31.50 x 16.73 in
Material
Steel
Material
Mild Steel
Modification Services
Yes
Panel Size
14.57 x 14.45 in
Product Family
Fusion G7
Series
G800SMP
Size
800x425xmm
Size
800x425 mm
Thickness
1.5 mm
Type
Industrial Panels and Panel Accessories
Weight
4.7 lb
Package Dimensions (L x W x H)
18 IN x 18 IN x 1.7 IN
Package Dimensions (L x W x H)
45.72 cm x 45.72 cm x 4.318 cm
Package Weight (Imperial)
4.700 L
Package Weight (Metric)
2.132 kg
Half-Height Side Panel, 1200x325xmm, Steel

G1200SMP325H

Half-Height Side Panel, 1200x325xmm, Steel
Half-Height Back Panel, 600x600xmm, Steel

G600P600H

Half-Height Back Panel, 600x600xmm, Steel

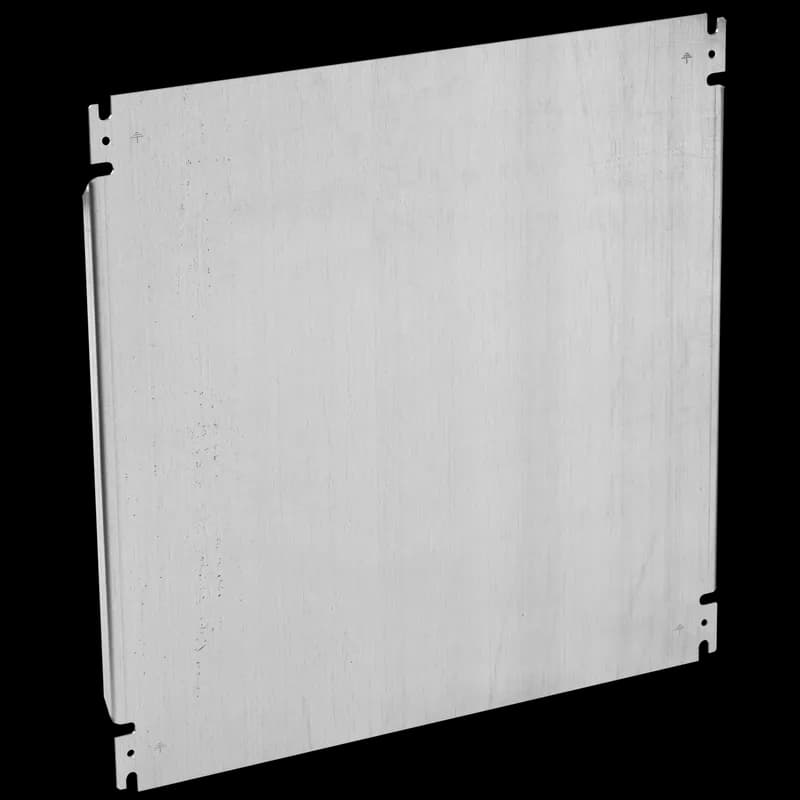

Full-Height Back Panel, 500x400xmm, Steel

G500P400

Full-Height Back Panel, 500x400xmm, Steel
Half-Height Side Panel, 1200x300xmm, Steel

G1200SMP300H

Half-Height Side Panel, 1200x300xmm, Steel
Horizontal Separator, Fits 500x300mm, White, Steel

GHS500300

Horizontal Separator, Fits 500x300mm, White, Steel
Horizontal Separator, Fits 600x325mm, White, Steel

GHS600325

Horizontal Separator, Fits 600x325mm, White, Steel
Full-Height Side Panel, 800x300xmm, Steel

G800SMP300

Full-Height Side Panel, 800x300xmm, Steel
Full-Height Side Panel, 600x325xmm, Steel

G600SMP325

Full-Height Side Panel, 600x325xmm, Steel
Half-Height Back Panel, 700x500xmm, Steel

G700P500H

Half-Height Back Panel, 700x500xmm, Steel
Full-Height Side Panel, 700x250xmm, Steel

G700SMP250

Full-Height Side Panel, 700x250xmm, Steel
Full-Height Side Panel, 800x225xmm, Steel

G800SMP225

Full-Height Side Panel, 800x225xmm, Steel

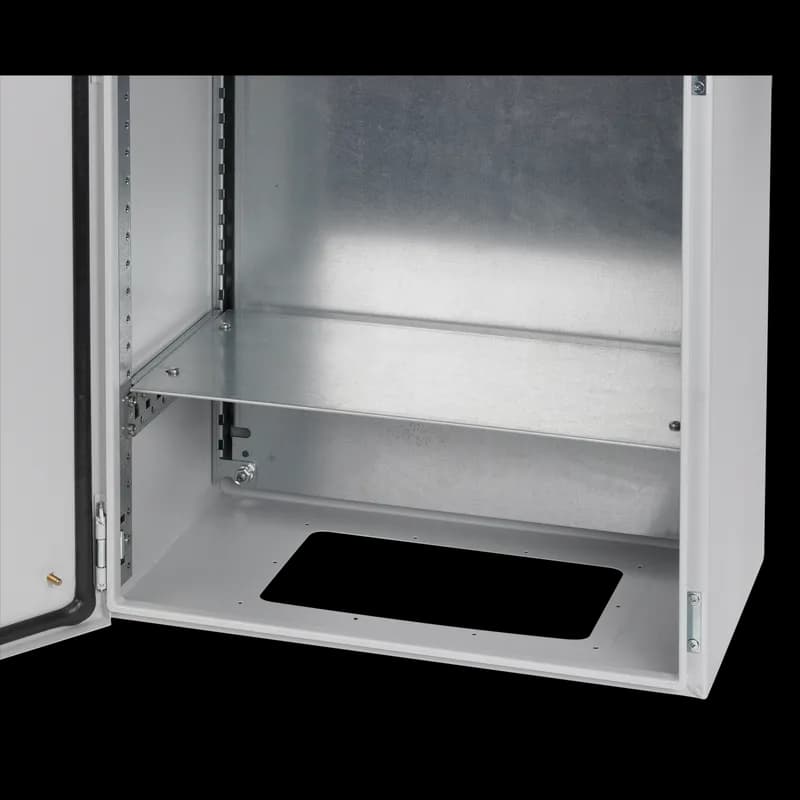

Horizontal Separator, Fits 600x250mm, White, Steel
