nVent
F88GUCGV
UPC: 783510888404
Contact for Pricing
Overview

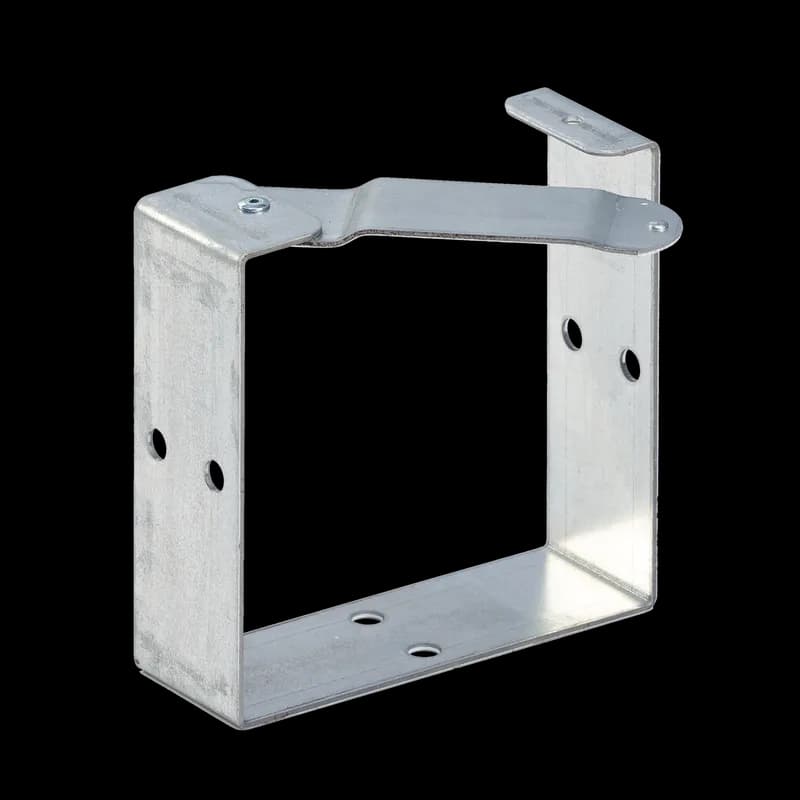

- Galvanized U-Connectors are used to rigidly join fittings to lay-in wireway straight sections
- Top swings aside to retain the lay-in feature
- One U-connector required at each wireway joint except telescope fittings, panel adapters, open adapters, closure plates or reducers
- Joins wireway sections and fittings for a secure connection
- Ideal for industrial and commercial cable management
Specifications
Application | Power Distribution |
Color | Unpainted |
Finish | Alum/Black;Galvanized |
Finish | Galvanized |
Height | 44 IN |
Height | 8 |
Height | 203 |
Material | Mild Steel |
Material | Galvanized Mild Steel |
Material | Mild Steel;Steel |
Modification Services | Yes |
Mounting Type | U-Connector for Lay-In Wireway |
NEMA Rating | 1 Indoor, electrical protection |
Protection Rating | NEMA Type 1 |
Series | nVent Lay-in Wireway |
Size | 8.00x8.00 inches |
Thickness | 14 ga |
Thickness | 51.40mm (2.024") |
Thickness | 1.9 mm |
Type | U-Connector |
Type | Commercial Lay-in Galvanized Flat-Cover Type 1 Wireway;U-Connector |
Type Number | Type 1 |
Weight | 1.7 lb |
Width | 8 |
Width | 203 |
Width | 23 IN |
Wireway | Lay-In NEMA Type 1 Galvanized Wireway |
Package Dimensions (L x W x H) | 7.9 IN x 7.9 IN x 2 IN |
Package Dimensions (L x W x H) | 20.066 cm x 20.066 cm x 5.08 cm |
Package Weight (Imperial) | 1.700 L |
Package Weight (Metric) | 0.771 kg |
