nVent F121245EGV - Elbow 45-Degree Lay-in, 12.00x12.00, Galvanized, Steel
nVent

F121245EGV

UPC: 783510890001

Contact for Pricing

Overview

Enhance your industrial cable and wire management systems with the nVent F121245EGV 45-Degree Lay-in Elbow. Engineered for robust performance in demanding environments, this galvanized steel elbow facilitates seamless 45-degree turns within continuous wireway runs. Its innovative lay-in design significantly simplifies installation and maintenance, allowing for cables and wires to be effortlessly placed into the conduit run without the need for pulling. This feature is crucial for preventing damage to wire insulation, a common issue with traditional pull-through wiring methods, thereby ensuring the longevity and reliability of your electrical infrastructure. The nVent F121245EGV elbow is constructed from durable, high-quality galvanized steel, offering superior corrosion resistance and structural integrity. This makes it an ideal choice for applications in harsh industrial settings, including manufacturing plants, chemical processing facilities, and outdoor electrical installations where exposure to moisture, chemicals, or extreme temperatures is a concern. The 12.00x12.00 inch dimensions provide ample space for managing a substantial volume of cables, supporting complex electrical layouts. A key advantage of this nVent elbow is its versatile lay-in capability, which can be utilized from any side. This flexibility ensures that the elbow can be integrated into existing or new wireway configurations regardless of orientation, streamlining the installation process and reducing labor costs. The sides of the elbow are securely fastened with screws, ensuring a tight and reliable connection that maintains the integrity of the wireway system and protects its contents from environmental contaminants and physical damage. Key Features and Benefits: * **Lay-in Design:** Facilitates easy wire and cable placement, eliminating the need for pulling and preventing insulation damage. * **45-Degree Turn:** Enables smooth directional changes in continuous wireway runs. * **Durable Galvanized Steel Construction:** Provides excellent corrosion resistance and long-term durability in industrial environments. * **Versatile Orientation:** Can be accessed from any side, offering installation flexibility. * **Secure Screw Fastening:** Ensures a robust and reliable connection for system integrity. * **12.00x12.00 Inch Size:** Accommodates substantial cable volumes for complex wiring needs. When selecting wireway components, professionals prioritize solutions that offer both efficiency and protection. The nVent F121245EGV elbow meets these demands by combining ease of use with the robust protection expected from a leading manufacturer like nVent. Trust nVent for your critical electrical infrastructure needs, ensuring safety, compliance, and operational continuity.
  • Lay-in Galvanized 45-Degree Elbows are used for continuous run with 45-degree turns
  • Any side can be removed, retaining lay-in feature regardless of how the elbow is oriented
  • Lay-in feature allows wires and cables can be laid in along wireway run
  • No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system
  • Sides are held together with screws

Specifications

Application
Power Distribution
Color
Unpainted
Finish
Alum/Black;Galvanized
Finish
Galvanized
Height
44 IN
Height
12
Height
305
Material
Galvanized Steel
Material
Mild Steel
Material
Mild Steel;Steel
Modification Services
Yes
NEMA Rating
1 Indoor, electrical protection
Protection Rating
NEMA Type 1
Size
12.00x12.00 inch
Thickness
1.9 mm
Thickness
14 ga
Thickness
51.40mm (2.024")
Type
Elbow
Type
Commercial Lay-in Galvanized Flat-Cover Type 1 Wireway;Elbow
Type Number
Type 1
Weight
9 lb
Width
23 IN
Width
12
Width
305
Wireway
Lay-In NEMA Type 1 Galvanized Wireway
Package Dimensions (L x W x H)
13.5 IN x 13 IN x 13 IN
Package Dimensions (L x W x H)
34.29 cm x 33.02 cm x 33.02 cm
Package Weight (Imperial)
9.000 L
Package Weight (Metric)
4.082 kg

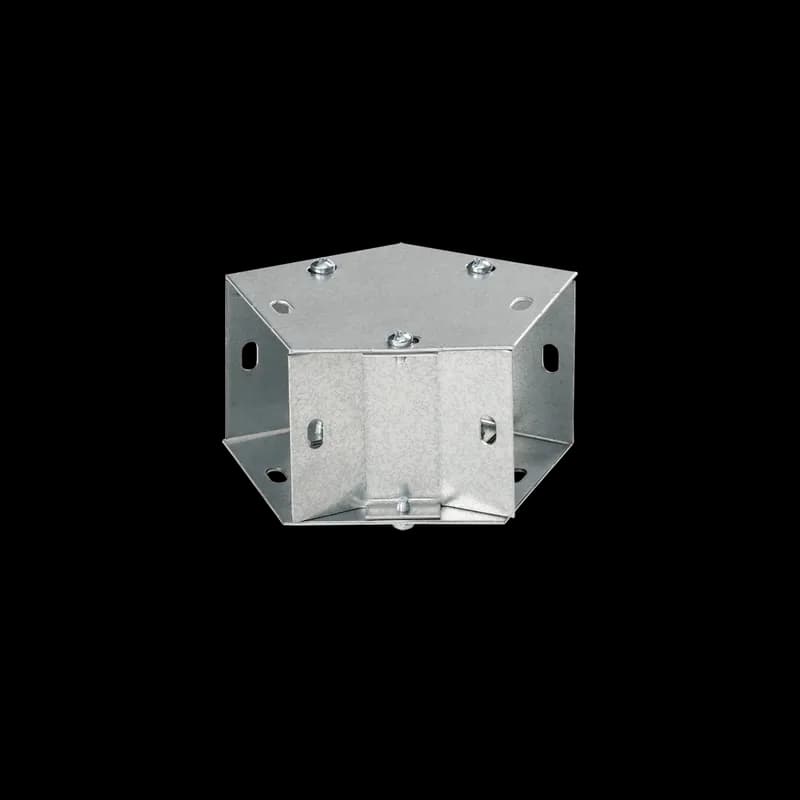

Elbow 45-Degree Lay-in, 10.00x10.00, Galvanized, Steel

F101045EGV

Elbow 45-Degree Lay-in, 10.00x10.00, Galvanized, Steel
Closure Plate With Knockouts, 12.00x12.00, Galvanized, Steel

F1212GCPGV

Closure Plate With Knockouts, 12.00x12.00, Galvanized, Steel
Closure Plate, 12.00x12.00, Galvanized, Steel

F1212GCPNKGV

Closure Plate, 12.00x12.00, Galvanized, Steel

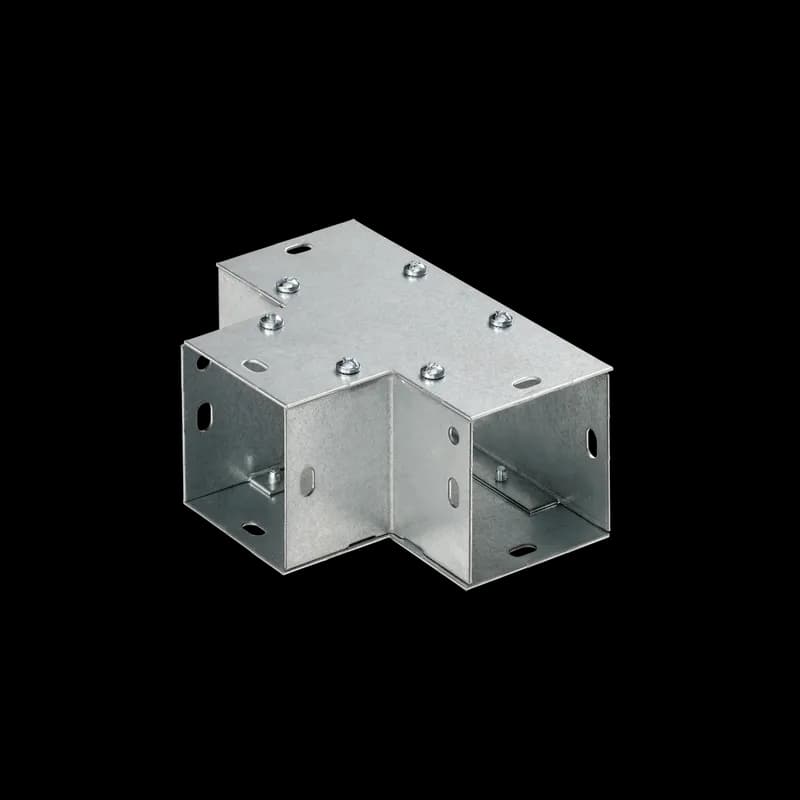

Flush Tee 90-Degree Lay-in, 12.00x12.00, Gray, Steel

F1212GTGV

Flush Tee 90-Degree Lay-in, 12.00x12.00, Gray, Steel

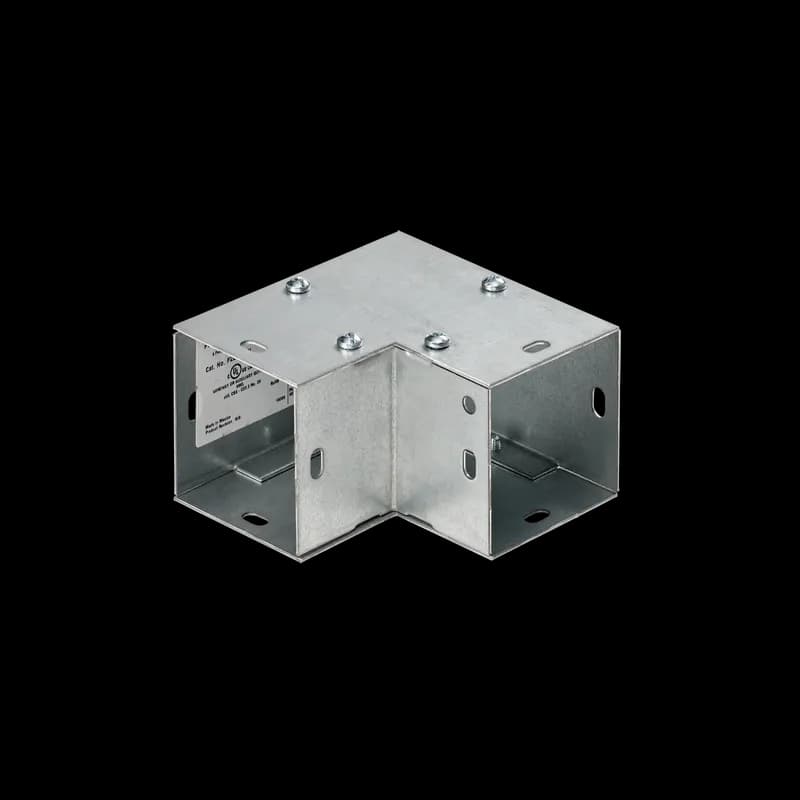

Elbow 90-Degree Lay-in, 12.00x12.00, Galvanized, Steel

F121290EGV

Elbow 90-Degree Lay-in, 12.00x12.00, Galvanized, Steel
Elbow 90-Degree Lay-in-Tee-Cross, 12.00x12.00, Galvanized, Steel

F121290TXGV

Elbow 90-Degree Lay-in-Tee-Cross, 12.00x12.00, Galvanized, Steel
Elbow Sweep 90-Degree Lay-in, 12.00x12.00, Galvanized, Steel

F121290SEGV

Elbow Sweep 90-Degree Lay-in, 12.00x12.00, Galvanized, Steel

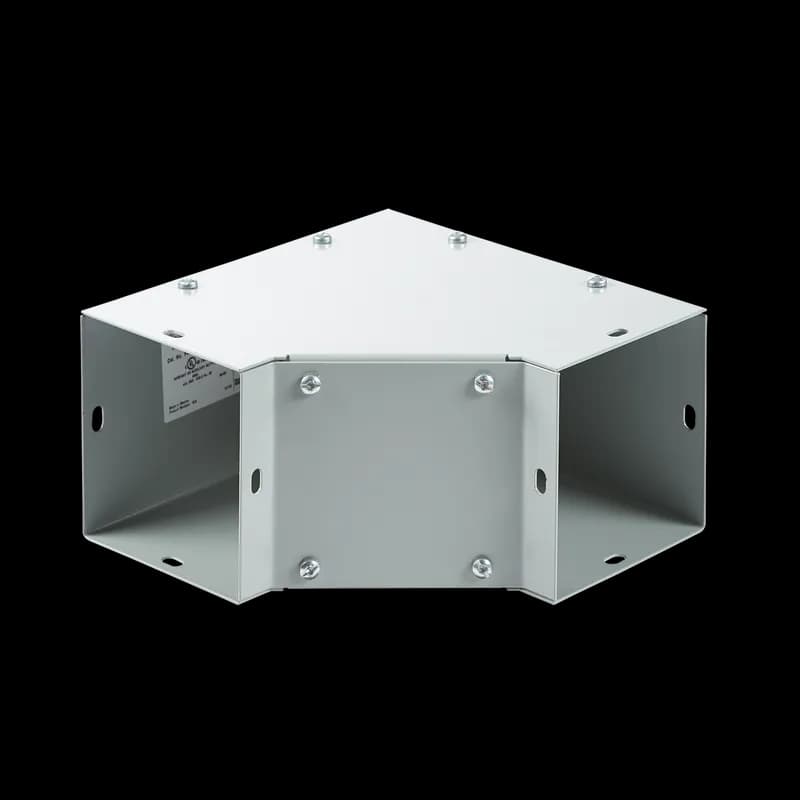

Elbow 90-Degree Lay-in Inside Opening, fits 12.00x12.00, Gray, Steel

F121290EIN

Elbow 90-Degree Lay-in Inside Opening, fits 12.00x12.00, Gray, Steel

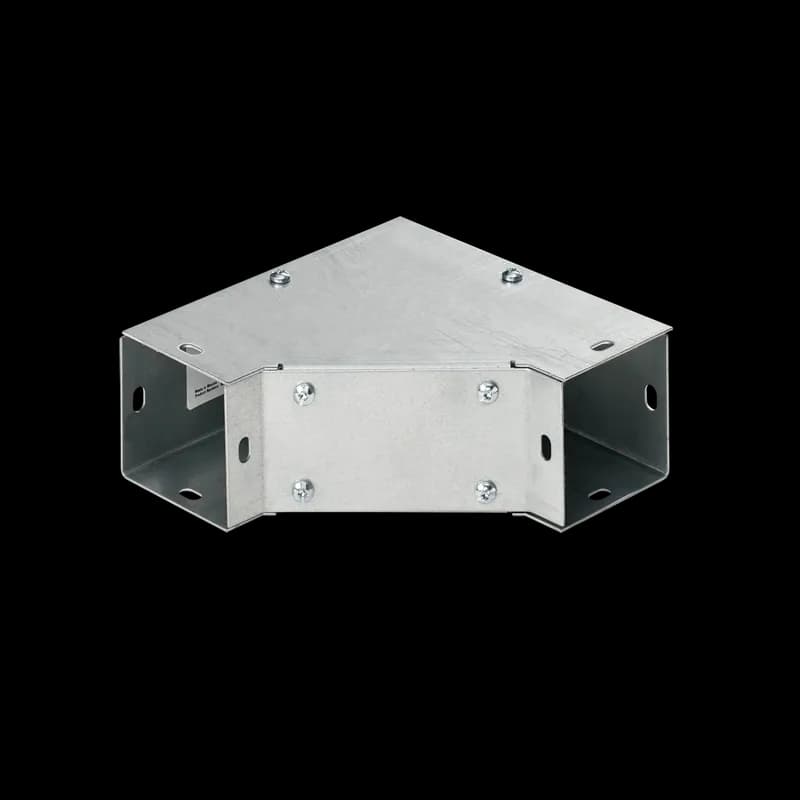

Elbow 90-Degree Lay-in Inside Opening, fits 12.00x12.00, Galvanized, Steel

F121290EINGV

Elbow 90-Degree Lay-in Inside Opening, fits 12.00x12.00, Galvanized, Steel
Elbow 90-Degree Lay-in Outside Opening, fits 12.00x12.00, Galvanized, Steel

F121290EOUTGV

Elbow 90-Degree Lay-in Outside Opening, fits 12.00x12.00, Galvanized, Steel
Sweep Tee LayIn Wireway, fits 12.00x12.00, Galvanized, Mild Steel

F1212TGV

Sweep Tee LayIn Wireway, fits 12.00x12.00, Galvanized, Mild Steel

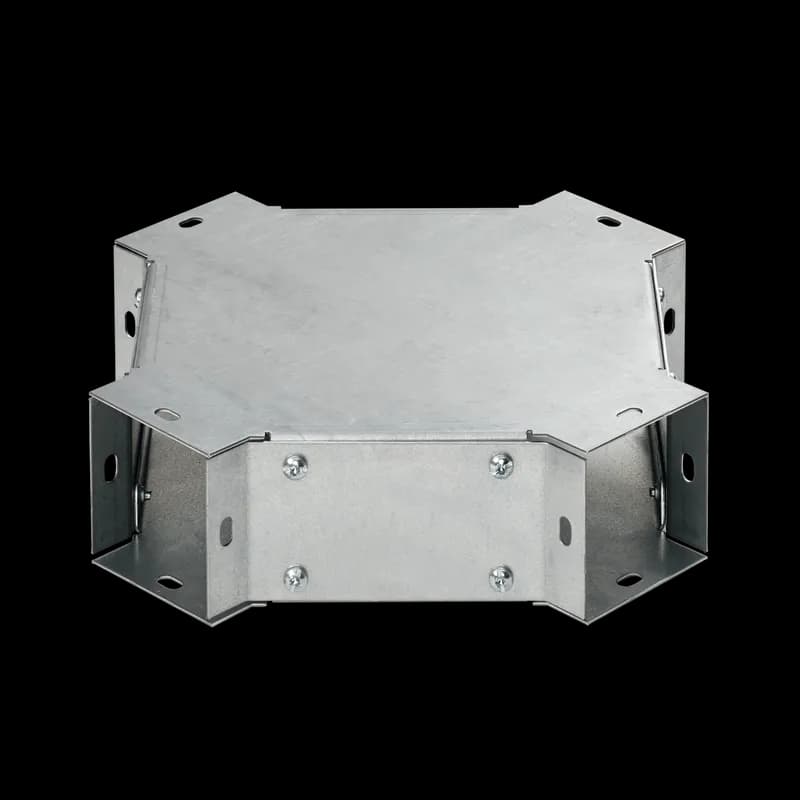

Cross Fitting, fits 12.00x12.00, Galvanized, Steel

F1212XGV

Cross Fitting, fits 12.00x12.00, Galvanized, Steel
