Overview
- Description: Filter fan for forced ventilation. nVent HOFFMAN filter fans save time on installation as they are installed with a click-in system without screws. The hinged front cover can be easily opened for quick and easy filter replacement. The airflo
- Material: Front cover manufactured from injection-moulded thermoplastic, self-extinguishing, UL94V0.
- Temperature range: -40 °C to +55 °C.
- Protection: IP 54, TYPE 12.
- Finish: RAL 7035.
- Pack quantity: One fan with filter.
- The filter fan is reliable due to its high quality motor, as well as being easy to install
- Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the enclosure and the reliable motor ensures that there is constant ventilation
- The click-in feature reduces the customer's labour cost due to the ease of installation

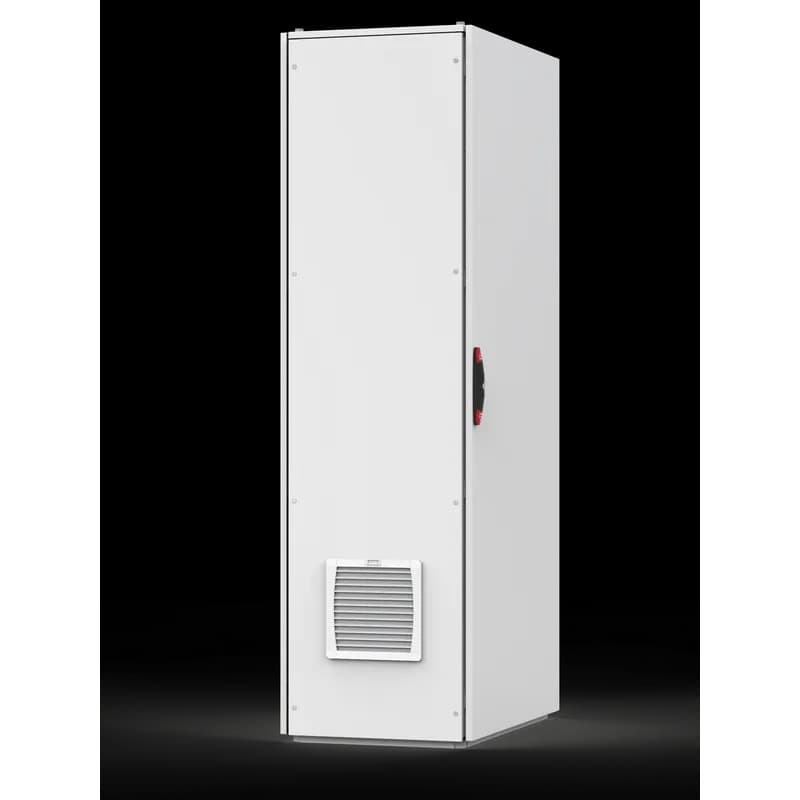

- The filter fan should be installed together with at least one exhaust filter, EFA
Specifications
Connection Type | Spring-type |
Current Rating | 0.53/0.72 A |
Frequency | 50/60 Hz |
IP Rating | IP54 |
Material | Plastic |
Material | Thermoplastic |
Mounting Type | Click-in |
Mounting Type | Click-in system |
Mounting Type | Screwless click-in |
Series | EF |
Series | EF500 |
Size | 292 × 292 mm |
Voltage Rating | 230 V |
Voltage Rating | 230 VAC |
Package Dimensions (L x W x H) | 12.97 IN x 12.97 IN x 13.22 IN |
Package Dimensions (L x W x H) | 32.9438 cm x 32.9438 cm x 33.5788 cm |
Package Weight (Imperial) | 9.500 L |
Package Weight (Metric) | 4.309 kg |
