nVent EF200-24R5 - Filter Fan Air flow 61 m3/h, 24V DC, IP54
nVent

EF200-24R5

UPC: 783510474522

Contact for Pricing

Overview

The nVent EF200-24R5 is a high-performance filter fan engineered for reliable environmental control within industrial enclosures. Designed to maintain optimal operating temperatures and prevent the ingress of contaminants, this unit is an essential component for safeguarding sensitive electrical and electronic equipment in demanding industrial settings. With an impressive airflow of 61 cubic meters per hour, the EF200-24R5 effectively dissipates heat generated by internal components, thereby extending the lifespan and ensuring the consistent performance of your machinery. Installation of the nVent EF200-24R5 is streamlined and efficient, thanks to its innovative click-in mounting system. This user-friendly design significantly reduces installation time and complexity, allowing for quicker deployment and minimizing potential downtime. The robust construction and IP54 protection rating provide a high level of defense against dust and water splashes, making it suitable for a wide range of environments, including manufacturing floors, outdoor control panels, and areas prone to moisture or particulate contamination. This protection is crucial for preventing costly equipment failures and ensuring operational continuity. At the core of the EF200-24R5's reliability is its durable fan motor. Engineered for longevity and consistent operation, this motor guarantees continuous ventilation, which is paramount for preventing overheating. Unnecessary downtime, a significant drain on productivity and profitability, is effectively avoided by the combination of superior filtration and dependable ventilation. The filter itself is designed for easy replacement, ensuring that the fan's performance remains at its peak with minimal maintenance effort. Professionals choose nVent for their enclosure thermal management solutions due to the manufacturer's extensive experience and commitment to quality, ensuring that products like the EF200-24R5 meet stringent industry standards and deliver exceptional value. This 24V DC model offers flexibility in power sourcing for various electrical systems. Key features of the nVent EF200-24R5 include: * **High Airflow Capacity:** 61 m³/h ensures effective cooling. * **IP54 Protection Rating:** Guards against dust and water ingress. * **Easy Installation:** Click-in mounting system for rapid deployment. * **Reliable Fan Motor:** Engineered for long-term, consistent operation. * **24V DC Operation:** Versatile power option for diverse applications. This filter fan is ideal for applications in sectors such as: * Industrial Automation * Manufacturing Facilities * Telecommunications * Food and Beverage Processing * Water Treatment Plants By maintaining a stable internal environment within enclosures, the nVent EF200-24R5 plays a critical role in preventing thermal runaway, reducing the risk of component failure, and ultimately enhancing the overall efficiency and safety of industrial operations. Its robust design and advanced features make it a trusted solution for critical enclosure cooling needs.
  • High-performance filter fan with 61 m³/h airflow for effective enclosure cooling.
  • IP54 protection rating safeguards against dust and water ingress.
  • Easy click-in installation system reduces deployment time and complexity.
  • Reliable fan motor ensures continuous ventilation and prevents overheating.
  • 24V DC power supply for versatile integration into industrial electrical systems.
  • Pack quantity: One fan with filter.
  • The filter fan is reliable due to its high quality motor, as well as being easy to install
  • Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the enclosure and the reliable motor ensures that there is constant ventilation
  • The click-in feature reduces the customer's labour cost due to the ease of installation
  • The filter fan should be installed together with at least one exhaust filter, EFA

Specifications

Package Dimensions (L x W x H)
6.08 IN x 6.08 IN x 6.33 IN
Package Dimensions (L x W x H)
15.4432 cm x 15.4432 cm x 16.0782 cm
Package Weight (Imperial)
1.100 L
Package Weight (Metric)
0.499 kg
Filter Fan Air flow 98 m3/h, 24V DC, 50/60HZ, IP54

EF220-24R5

Filter Fan Air flow 98 m3/h, 24V DC, 50/60HZ, IP54
Filter Fan Air flow 19 m3/h, 24V DC, IP54

EF100-24R5

Filter Fan Air flow 19 m3/h, 24V DC, IP54
Filter Fan Air flow 223 m3/h, 24V DC, 50/60HZ, IP54

EF300-24R5

Filter Fan Air flow 223 m3/h, 24V DC, 50/60HZ, IP54
Filter Fan Air flow 156 m3/h, 24V DC, 50/60HZ, IP54

EF250-24R5

Filter Fan Air flow 156 m3/h, 24V DC, 50/60HZ, IP54

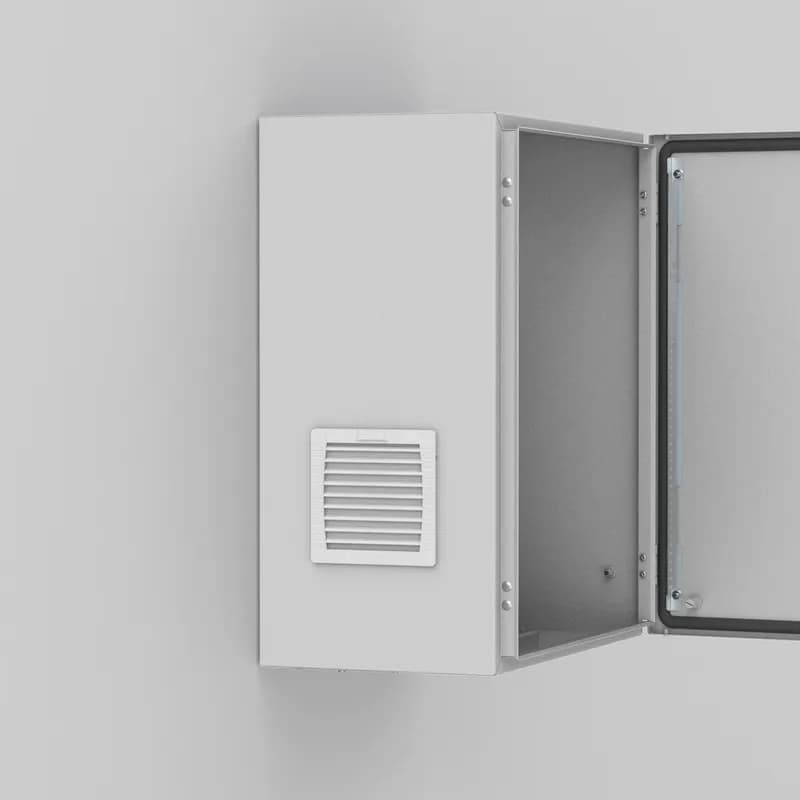

Exhaust filter, IP54
