Contact for Pricing

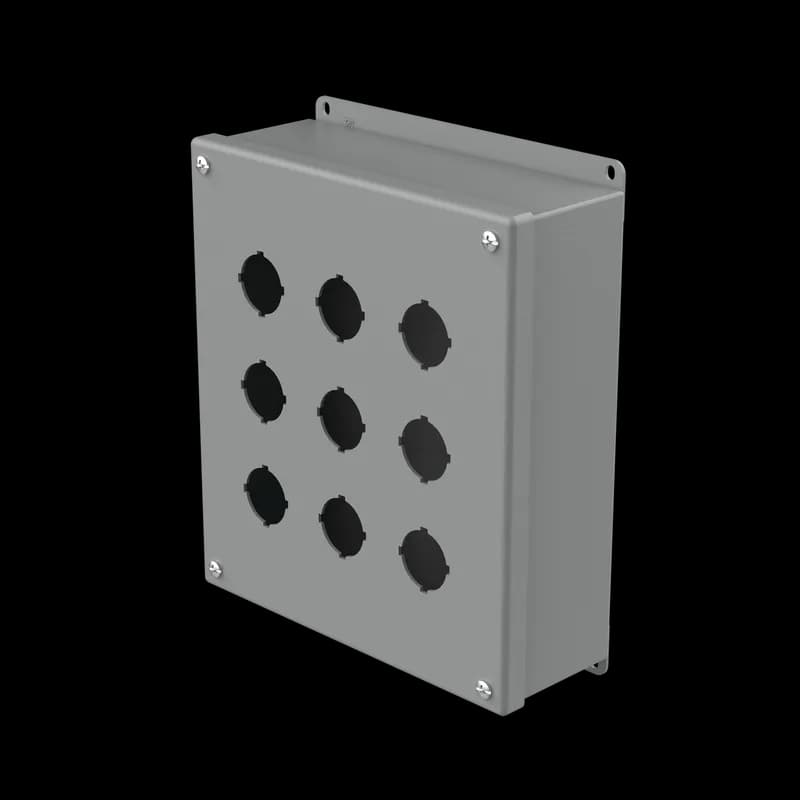

Overview
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding stud on body
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
- 30.5-mm or 22.5-mm size holes
Specifications
Application | Controls and Drives |
Color | Gray |
Color Code | ANSI 61 |
Depth | 13 IN |
Depth | 3 IN |
Finish | Powder Coated |
Height | 44 IN |
Height | 9.5 |
Height | 241 |
Hole Quantity | 6 |
Hole Size | 0.88-0.88 in |
Hole Size | 22.5 mm mm |
Hole Size | 14.3-14.3 |
IP Rating | IP65 |
Material | Mild Steel;Steel |
Material | Mild Steel |
Modification Services | Yes |
Mounting | Wall Mounting Brackets Available |
Mounting | 10.00 x 5.38 in |
NEMA Rating | 12 Indoor, dust-resistant |
NEMA Rating | 12 |
Number Of Holes | 6 |
Overall Dimensions | 114 x 88 mm |
Overall Dimensions | 10.50 x 6.47 in |
Product Family | PushButton |
Protection Rating | NEMA Type 12 |
Size | 6PB x 22.5mm |
Thickness | 1.9 mm |
Thickness | 14 ga |
Thickness | 51.40mm (2.024") |
Type | Mild Steel Terminal and Junction Boxes |
Type | Mild Steel Industrial Terminal and Junction Boxes |
Type Number | Type 13 |
Weight | 3.9 lb |
Width | 6.25 |
Width | 159 |
Width | 23 IN |
Package Dimensions (L x W x H) | 10.5 IN x 6.5 IN x 3.25 IN |
Package Dimensions (L x W x H) | 26.67 cm x 16.51 cm x 8.255 cm |
Package Weight (Imperial) | 5.000 L |
Package Weight (Metric) | 2.268 kg |
How to Repaint Hoffman Enclosures
This guide provides step-by-step instructions for repainting Hoffman enclosures to ensure proper adhesion and finish.
Estimated time: 1h
Tools needed:
Screwdriver, Sandpaper, Paint sprayer or brush
Supplies needed:
180 grit sandpaper, 220 or 240 grit sandpaper, Solvent, Paint compatible with polyester powder
- Prepare the surface
Thoroughly sand all enclosure surfaces with 180 grit sandpaper. If sanding marks are objectionable, finish sanding with 220 or 240 grit sandpaper.
- Clean the surfaces
Wet wipe all surfaces with a solvent to remove any possible contaminants before applying paint.
- Apply paint
Apply two or three medium to light coats of paint, allowing two or three minutes for flash off between coats.
- Cure the paint
Allow the paint to cure adequately according to the manufacturer's instructions for proper cure time and hardness.
- Test adhesion
Consult with your paint manufacturer for proper testing methods to ensure the paint adheres well before finalizing the repainting process.
