Overview
- Plastic mounting foot kits are rated for 500 lb (227 kg) maximum load
- Sealing washers are provided with each kit to maintain Type 4 and 12 after installation
- Stainless steel and plastic mounting bracket kits are rated to Type 4X
- All hardware is included
- Compatible with IS/GSC boxes with B=6.00 or 8.00 dimensions.
Specifications
Accessory Type | Mounting Accessories |
Application | Controls and Drives |
Color | Unpainted |
Depth | 0.07 in |
Depth | 2 mm |
Fastener Thread Size | #10-32 |
Finish | Plated |
Height | 1.5 IN |
Height | 44 IN |
L | 4.75 in |
L | 2 in |
Material | Mild Steel |
Material | Plated Steel |
Material | Mild Steel;Steel |
Modification Services | Yes |
Mounting Type | Field-installable |
Series | nVent DMFK1 |
Size | 6.00 or 8.00 inches |
Thickness | 1.9 mm |
Thickness | 51.40mm (2.024") |
Thickness | 14 ga |
Type | External Mounting for Industrial Enclosures |
Use On | Instrumentation enclosures D664IS through D1086IS |
Weight | 0.32 lb |
Width | 4.75 IN |
Width | 120 mm |
Works With | NEMA |
Package Dimensions (L x W x H) | 7 IN x 5 IN x 0.3 IN |
Package Dimensions (L x W x H) | 17.78 cm x 12.7 cm x 0.762 cm |
Package Weight (Imperial) | 0.320 L |
Package Weight (Metric) | 0.145 kg |
How to Install the DMFK1 Mounting Foot Kit
This guide provides step-by-step instructions for installing the DMFK1 Mounting Foot Kit, ensuring secure mounting for your enclosure.
Estimated time: 30m
Tools needed:
Screwdriver, Center punch, Drill, Torque wrench
Supplies needed:
Mounting foot studs, Sealing washers, Nuts
- Locate and mark mounting holes
Identify the locations for the mounting foot studs using the provided dimensions. Use a center punch to mark the centers of the holes.
- Drill holes
Drill four holes with a diameter of .219 inches at the marked locations. Ensure the holes are clean and free of debris.
- Insert mounting foot studs
Insert the mounting foot studs into the drilled holes. Turn the enclosure upright and ensure the studs are properly positioned.
- Attach sealing washers
Lightly lubricate the sealing washers and press them onto the mounting foot studs with the neoprene side facing down.
- Secure with nuts
Thread the nuts onto the studs and tighten them to a torque of 15 to 20 in-lbs to ensure a secure fit.
- Repeat for the other end
Repeat steps 3 to 5 for the other end of the enclosure to complete the installation.
Frequently Asked Questions about nVent
What industries and applications are nVent products used for?
nVent products are engineered for critical infrastructure and industrial applications across multiple demanding sectors. Key markets include Construction, Data Centers, Defense, Healthcare, Mining, Oil & Gas Refineries, Power Plants, Rail/Transit, Renewable Energy, Security, Ship Building, Steel Mills, Telecom, and Utilities. Their solutions are designed to withstand extreme environmental conditions, with temperature ranges from -55°C to 105°C and specialized features like UV resistance, oil resistance, and flame resistance.
What environmental ratings do nVent products have?
nVent enclosures feature comprehensive environmental ratings, including UL 508A, CSA, and NEMA Type 1, 2, 3, 4, 4X, 12, and 13 certifications. They are rated IEC 60529 IP66, providing robust protection against dust, water, and corrosion in both indoor and outdoor environments. These products operate effectively in temperatures ranging from -40°F to 266°F, with enhanced UV inhibitors for outdoor weathering and oil-resistant gaskets for superior sealing.
What accessories are available for nVent products?

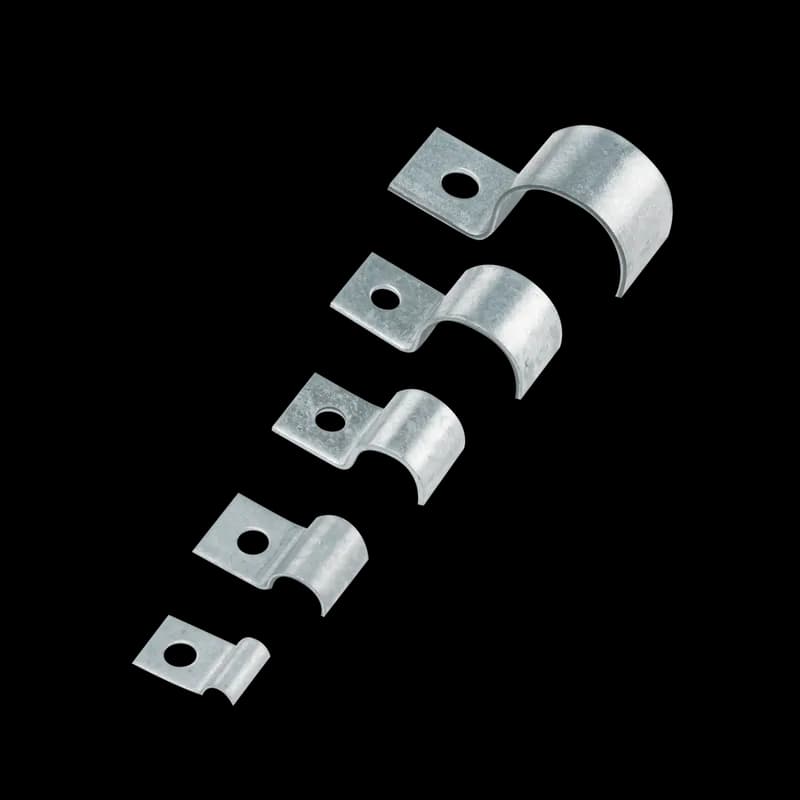

nVent offers a comprehensive range of accessories across multiple product lines, including EMC accessories like bonding cable clamps and strain reliefs, inline accessories such as lock inserts and mounting brackets, CONCEPT accessories including panel conversion kits and rack-mount angles, and seismic accessories for specialized mounting requirements. Key accessory categories include grounding kits, DIN rail mounting solutions, panel supports, handles, and various mounting hardware compatible with different enclosure types.
