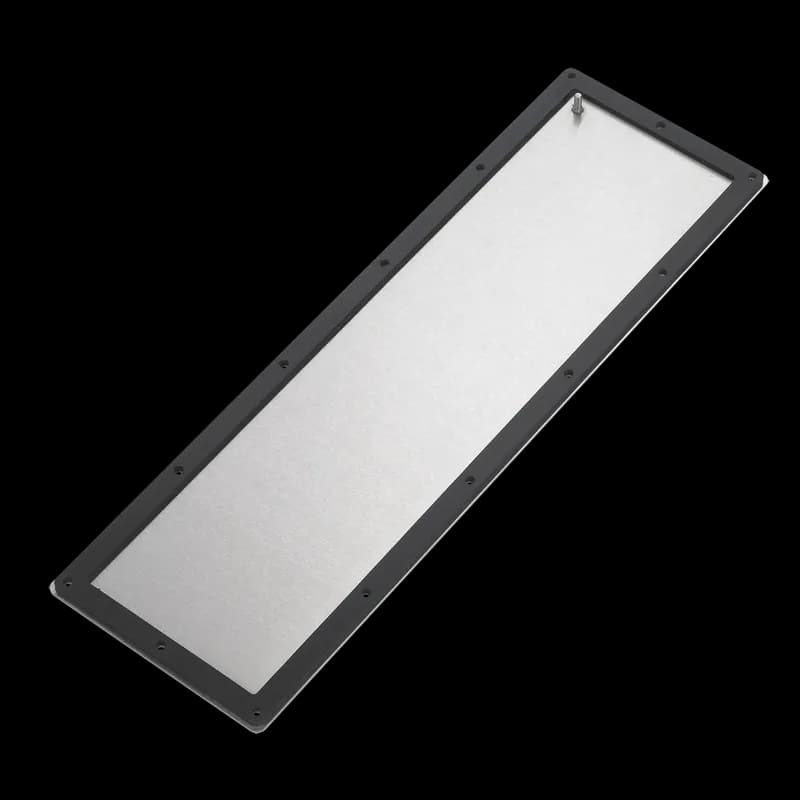

Overview
- Maintains UL/NEMA Type 12 if properly installed in an nVent HOFFMAN enclosure
- Fits 17.00 x 5.00 inch rectangular openings
- ANSI 61 gray polyester powder paint finish
- Maintains UL Type 12 enclosure integrity
- Includes hardware for easy installation
Specifications
Accessory Type | Shelves, Keyboard Trays and Gland Plates |
Application | Controls and Drives |
Color | Gray |
Color Code | ANSI 61 |
Finish | Powder Coated |
Material | Steel |
Material | Mild Steel |
Material | Mild Steel;Steel |
Modification Services | Yes |
Mounting Type | Tool-free with wing nuts |
Mounting Type | Cut opening with wing nuts |
Nema Rating | Type 12 |
Size | fits 17.00x5.00 in |
Size | 17.00x5.00 |
Thickness | 1.52 mm |
Thickness | 16 ga |
Thickness | 51.40mm (2.024") |
Type | External Mounting for Industrial Enclosures |
Weight | 2.9 lb |
Works With | NEMA |
Package Dimensions (L x W x H) | 21.3 IN x 13.5 IN x 1.6 IN |
Package Dimensions (L x W x H) | 54.102 cm x 34.29 cm x 4.064 cm |
Package Weight (Imperial) | 2.900 L |
Package Weight (Metric) | 1.315 kg |
How to Install the Gland Plate
This guide provides step-by-step instructions for installing a gland plate onto an enclosure box to maintain UL/CSA Type 12 compliance.
Estimated time: 15m
Tools needed:
Screwdriver
Supplies needed:
Wing nuts, Brackets
- Make the cut-out
Cut a hole in the enclosure box as specified in the documentation. The cut-out can be positioned on any side of the box.
- Install the gland plate
Slip the supports under the back side of the cut-out, push the gland plate down over the cut-out, and slide the bracket under the front edge of the cut-out.
- Secure the installation
Tighten the wing nuts to secure the gland plate in place, ensuring it is firmly attached.
