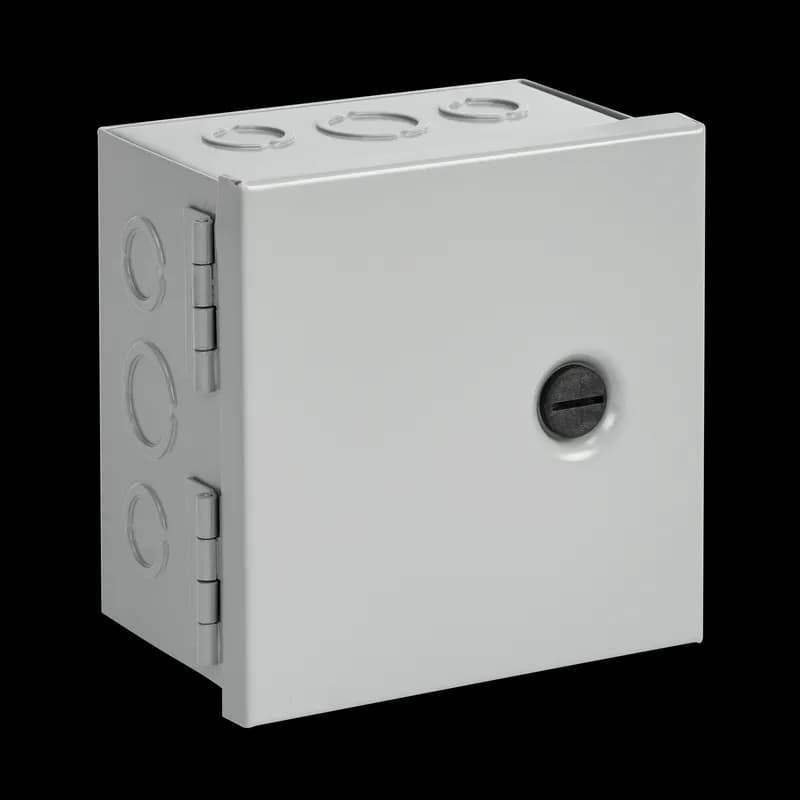

Overview

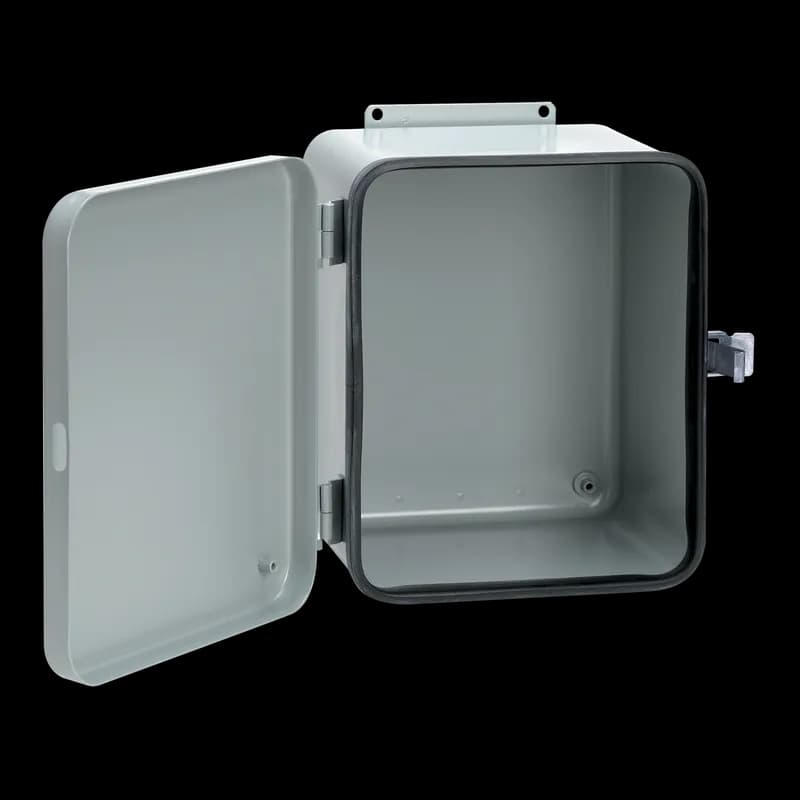

- Drawn enclosure
- No welded seams or sharp corners
- Removable door with unique lift-off hinges
- Oil-tight quarter-turn slotted latches
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels
- Bonding provision on door
Specifications
Application | Controls and Drives |
Color | Gray |
Color Code | ANSI 61 |
Conductive Panel | A8P6G |
Depth | 13 IN |
Depth | 4 in |
Depth, Maximum | 4 |
Depth, Minimum | 4 |
Finish | Powder Coated |
Height | 8 IN |
Height | 44 IN |
IP Rating | IP55 |
Material | Steel |
Material | Mild Steel;Steel |
Modification Services | Yes |
NEMA Rating | 12 |
Overall Dimensions | 114 x 88 mm |
Overall Dimensions | 8.09 x 6.45 in |
Panel | A8P6 |
Panel Size | 6.75 x 4.88 in |
Panel Size | 72.00 x 72.00 in |
Protection Rating | NEMA Type 12 |
Size | 8.00x6.00x4.00 in |
Thickness | 51.40mm (2.024") |
Thickness | 16 ga |
Type | Mild Steel Industrial Terminal and Junction Boxes |
Type | Mild Steel Terminal and Junction Boxes |
Type Number | Type 12 |
Weight | 4 lb |
Width | 152 mm |
Width | 6 IN |
Package Dimensions (L x W x H) | 7.5 IN x 6 IN x 5 IN |
Package Dimensions (L x W x H) | 19.05 cm x 15.24 cm x 12.7 cm |
Package Weight (Imperial) | 4.000 L |
Package Weight (Metric) | 1.814 kg |
How to Install the Grounding Kit for E9PBY25M
This guide provides step-by-step instructions for installing the grounding kit for the E9PBY25M, ensuring proper electrical continuity and safety.
Estimated time: 15m
Tools needed:
Screwdriver, Torque wrench
Supplies needed:
10-32x5/8 screws, Keps nuts, 10-32 hex nuts, Lockwashers, Ground wire, Grounding label
- Insert the mounting screw
Insert the 10-32x5/8 screw through the designated hole in the panel.
- Secure the screw
Tighten the screw using a keps nut, ensuring that the nut penetrates into the paint for proper electrical continuity.
- Attach the ground wire
Connect the ground wire and secure it using a 10-32 hex nut.
- Install the lockwasher
Place a lockwasher under one of the screws securing the panel to ensure grounding between the panel and the enclosure. Do not exceed a torque of 30 in-lbs.
- Apply the grounding label
Attach the included grounding label adjacent to the bolt as indicated in the installation instructions.
