Overview

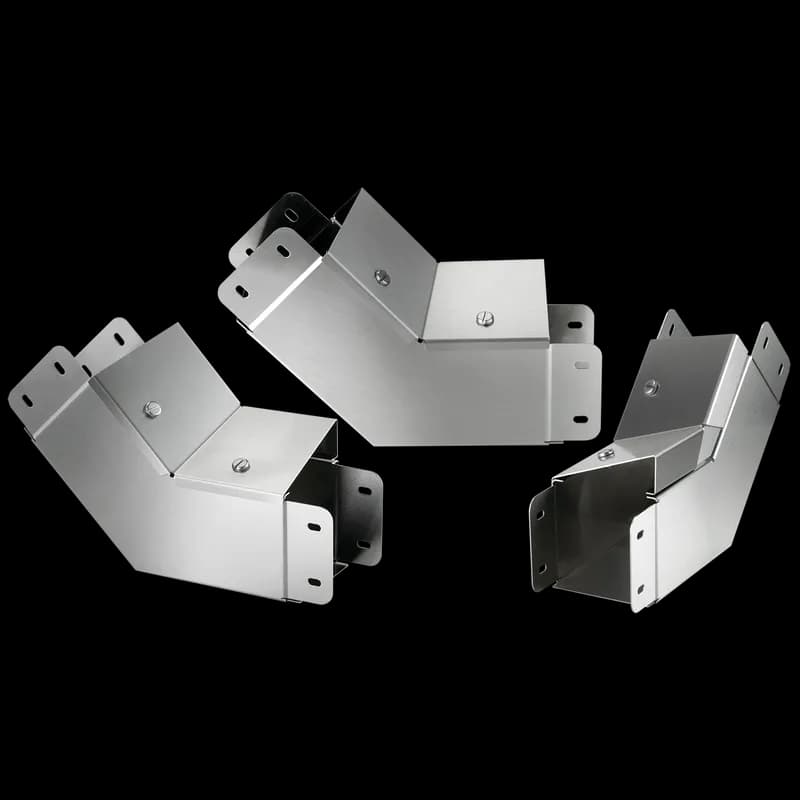

- Clean Tray 45-Degree Elbows are used for continuous runs with 45-degree turns
- The Clean Tray stainless steel system is designed to protect rated cabling in applications that require frequent washdown
- Designed for 45-degree cable tray transitions
- Sloped outward design for efficient drainage
- Ideal for washdown and hygienic environments
Specifications
Application | Hygienic Environments; Corrosive Environments; Power Distribution |
Color | Brushed |
Color | Unpainted |
Finish | Brushed #3 |
Height | 4 IN |
Height | 102 mm |
Material | Stainless Steel |
Material | SS304 Stainless Steel |
Modification Services | Yes |
NEMA Rating | 1 Indoor, electrical protection |
Product Family | CleanTray |
Protection Rating | NEMA Type 1 |
Series | CleanTray |
Size | 4.00 x 4.00 inch (102 x 102 mm) |
Thickness | 18 ga |
Thickness | 1.27 mm |
Type | Elbow |
Type | Industrial Lay-in Wireway |
Weight | 5 lb |
Width | 102 mm |
Width | 4 IN |
Wireway | Clean Tray Stainless Steel Cable Tray |
Package Dimensions (L x W x H) | 14 IN x 9 IN x 5 IN |
Package Dimensions (L x W x H) | 35.56 cm x 22.86 cm x 12.7 cm |
Package Weight (Imperial) | 5.000 L |
Package Weight (Metric) | 2.268 kg |
