Contact for Pricing
Overview

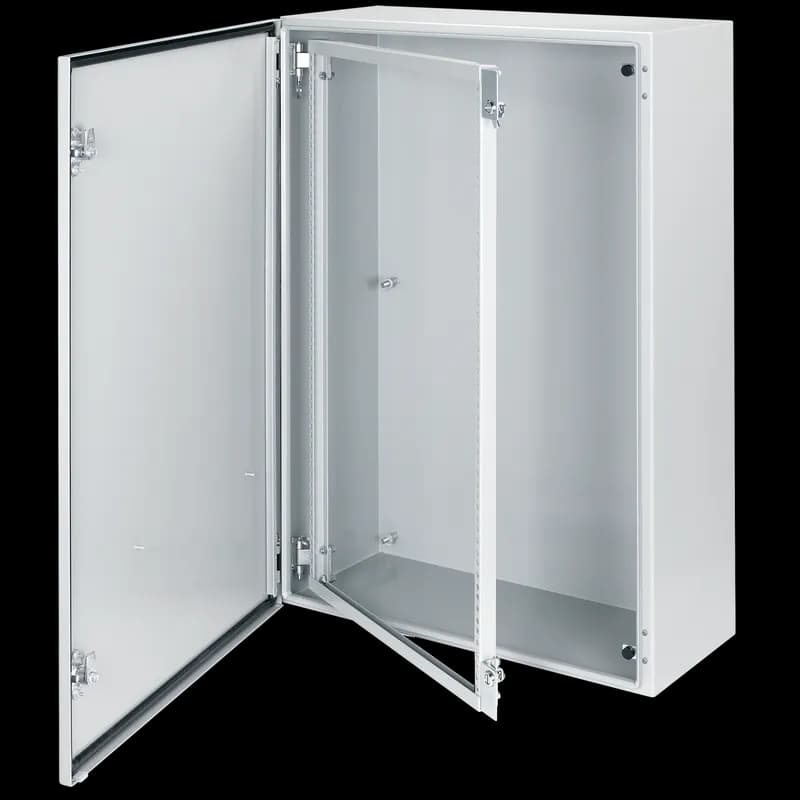

- CSPB panels, maximum swing is 94 degrees
- CSP panels, maximum panel swing is 106 degrees
- Distance from panel surface to door when in the latched position is 1.71 in. (43 mm) for solid doors and 1.45 in. (37 mm) for window doors
- Kits include panel, brackets and hardware to mount to the front flange
- Two quarter-turn latches for secure closure
- Mounts to front-to-back adjustable rails
- Light gray (RAL 7035) finish
- Made in the USA
Specifications
Application | Arc Flash Safety;Controls and Drives;Power Distribution |
Application | Power Distribution; Controls and Drives; Arc Flash Safety |
Color | White |
Color | Light Gray |
Color | Gray;White |
Finish | Powder Coated |
Fits Enclosure Size | 24.00 x 24.00 in |
Fits Enclosure Size | 24.00 x 20.00 in |
Height | 44 IN |
Height | 21.78 in |
Material | Mild Steel |
Material | Mild Steel;Steel |
Material | Steel |
Modification Services | Yes |
Mounting Type | Swing-Out |
Mounting Type | Front flange mounting |
Mounting Type | Front-to-Back Adjustable Rails |
Panel Size | 553 x 555 mm |
Panel Size | 21.78 x 21.84 in |
Product Family | Concept |
Series | Concept Swing-Out Panel |
Size | fits 24.00x24.00 in |
Size | 24.00x24.00 inch |
Size | 24.00x24.00 inches |
Thickness | 2.66 mm |
Thickness | 12 ga |
Thickness | 51.40mm (2.024") |
Type | Industrial Panels and Panel Accessories |
Weight | 19 lb |
Width | 554 mm |
Width | 21.84 in |
Works With | NEMA |
Package Dimensions (L x W x H) | 25 IN x 24.75 IN x 3.25 IN |
Package Dimensions (L x W x H) | 63.5 cm x 62.865 cm x 8.255 cm |
Package Weight (Imperial) | 19.000 L |
Package Weight (Metric) | 8.618 kg |
How to Install the CSP2424 Controller
This guide provides step-by-step instructions for installing and configuring the CSP2424 Controller on a DIN rail.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Mount the controller
Secure the CSP2424 controller to the DIN rail using the integrated clips. Ensure the controller is level and firmly attached.
- Connect power supply
Use terminal connectors to connect the power supply wires to the designated terminals on the CSP2424 controller. Verify the connections are secure.
- Configure initial settings
Power on the controller and use the interface to configure the initial settings according to your application requirements. Refer to the user manual for specific configuration options.
Frequently Asked Questions about nVent
What industries and applications are nVent products used for?
nVent products are engineered for critical infrastructure and industrial applications across multiple demanding sectors. Key markets include Construction, Data Centers, Defense, Healthcare, Mining, Oil & Gas Refineries, Power Plants, Rail/Transit, Renewable Energy, Security, Ship Building, Steel Mills, Telecom, and Utilities. Their solutions are designed to withstand extreme environmental conditions, with temperature ranges from -55°C to 105°C and specialized features like UV resistance, oil resistance, and flame resistance.
What environmental ratings do nVent products have?
nVent enclosures feature comprehensive environmental ratings, including UL 508A, CSA, and NEMA Type 1, 2, 3, 4, 4X, 12, and 13 certifications. They are rated IEC 60529 IP66, providing robust protection against dust, water, and corrosion in both indoor and outdoor environments. These products operate effectively in temperatures ranging from -40°F to 266°F, with enhanced UV inhibitors for outdoor weathering and oil-resistant gaskets for superior sealing.
What accessories are available for nVent products?
nVent offers a comprehensive range of accessories across multiple product lines, including EMC accessories like bonding cable clamps and strain reliefs, inline accessories such as lock inserts and mounting brackets, CONCEPT accessories including panel conversion kits and rack-mount angles, and seismic accessories for specialized mounting requirements. Key accessory categories include grounding kits, DIN rail mounting solutions, panel supports, handles, and various mounting hardware compatible with different enclosure types.
What certifications and standards do nVent products comply with?
nVent products meet critical international certifications including UL (United States), CSA (Canada), CE (European Community), and EAC (Russia). Our products are designed to comply with rigorous industrial standards such as NEMA enclosure ratings, IEC 60529 IP ratings, and international safety standards across multiple industrial markets including oil & gas, power, manufacturing, and infrastructure.
What is nVent's warranty policy?
nVent offers a standard 18-month warranty from invoicing date for most automation products, covering defects in workmanship and materials. The warranty requires proper transportation, handling, storage, and installation within specified environmental conditions. Warranty coverage includes repair or replacement at nVent's discretion, with certain conditions such as authorized service repairs and operation within designed capacity limits.
What technical support does nVent offer?
nVent offers comprehensive technical support through multiple global contact centers across North America, South America, Europe, Middle East, India, and Asia. Customers can reach technical experts by phone at regional numbers, with the North American headquarters in Minneapolis, MN providing primary support at +1.763.421.2240. Additionally, nVent provides online support resources through their website, including CAD drawing downloads and an 'Ask The Expert' feature to assist with product technical inquiries.
