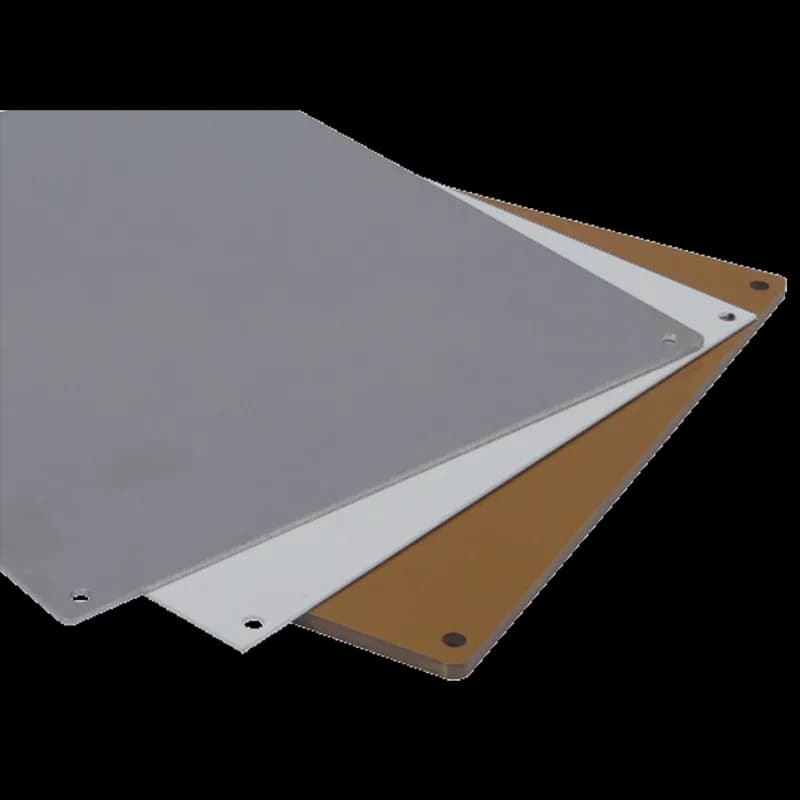

nVent CP2012 - Concept Panel, fits 20.00x12.00 inch Enclosure, White, Mild Steel
nVent

CP2012

UPC: 783510156343

Documents & Media
Installation Instructions

Contact for Pricing

Overview

The nVent CP2012 Concept Panel is a robust and versatile mounting solution designed to enhance the internal organization and component accessibility within electrical enclosures. Engineered by nVent, a recognized leader in electrical enclosure solutions, this panel (SKU: CP2012) offers superior dimensions compared to standard NEMA-sized panels, providing an expanded surface area for component mounting. Its white, mild steel construction ensures durability and a clean aesthetic, making it suitable for a wide range of industrial and commercial applications. This Concept Panel is specifically designed to fit 20.00x12.00 inch enclosures, offering a precise and secure fit. The increased height and width of Concept panels over their NEMA-sized counterparts are a key design advantage, allowing for more efficient layout of electrical components, wiring, and control devices. This extra space can significantly simplify installation, maintenance, and future modifications, reducing downtime and labor costs. Professionals often select these panels when dealing with complex control systems, high-density component arrangements, or when anticipating future expansion needs. The mild steel material provides excellent structural integrity and resistance to common industrial environments. The white finish not only contributes to a professional appearance but also aids in visibility within the enclosure, making it easier to identify components and troubleshoot issues. The nVent CP2012 is an ideal choice for applications requiring reliable internal panel mounting, including: * **Industrial Automation:** Mounting PLCs, VFDs, HMIs, and associated control circuitry. * **Power Distribution:** Organizing circuit breakers, terminal blocks, and power supplies. * **Telecommunications:** Housing networking equipment and signal processing units. * **Building Management Systems:** Integrating HVAC controls, lighting systems, and security components. When selecting an enclosure panel, factors such as component weight, environmental conditions, and the need for future expansion are critical. The nVent CP2012 addresses these considerations with its sturdy construction and generous mounting area. Its compatibility with 20x12 inch enclosures streamlines the selection process, ensuring a seamless integration into existing or new electrical installations. Trust nVent's commitment to quality and innovation for your critical electrical infrastructure needs.
  • Painted white or conductive finish
  • Include a formed flange along any side that is longer than 22.20 in (564 mm)
  • Optional wood panels are made of 3/4-in plywood, pre-cut and pre-drilled to install on panel mounting studs in the rear of the cabinet
  • Ideal for industrial automation, power distribution, and control systems
  • Enhances internal enclosure organization and accessibility

Specifications

Application
Power Distribution; Arc Flash Safety; Controls and Drives
Application
Arc Flash Safety;Controls and Drives;Power Distribution
Color
White
Finish
Powder Coated
Gauge
12 ga
Height
462 mm
Height
18.2 in
Material
Mild Steel
Material
Steel
Modification Services
Yes
Product Family
Concept
Series
Concept Panel
Size
20.00x12.00 inch
Size
fits 20.00x14.00 in
Thickness
12 in
Thickness
2.66 mm
Thickness
51.40mm (2.024")
Type
Painted Steel
Type
Industrial Panels and Panel Accessories;Painted Steel
Weight
5.4 lb
Width
10.2 in
Width
259 mm
Works With
NEMA
Package Dimensions (L x W x H)
20.75 IN x 17 IN x 0.25 IN
Package Dimensions (L x W x H)
52.705 cm x 43.18 cm x 0.635 cm
Package Weight (Imperial)
5.400 L
Package Weight (Metric)
2.449 kg
