Contact for Pricing
Overview
- Kits include slide mechanisms and hardware

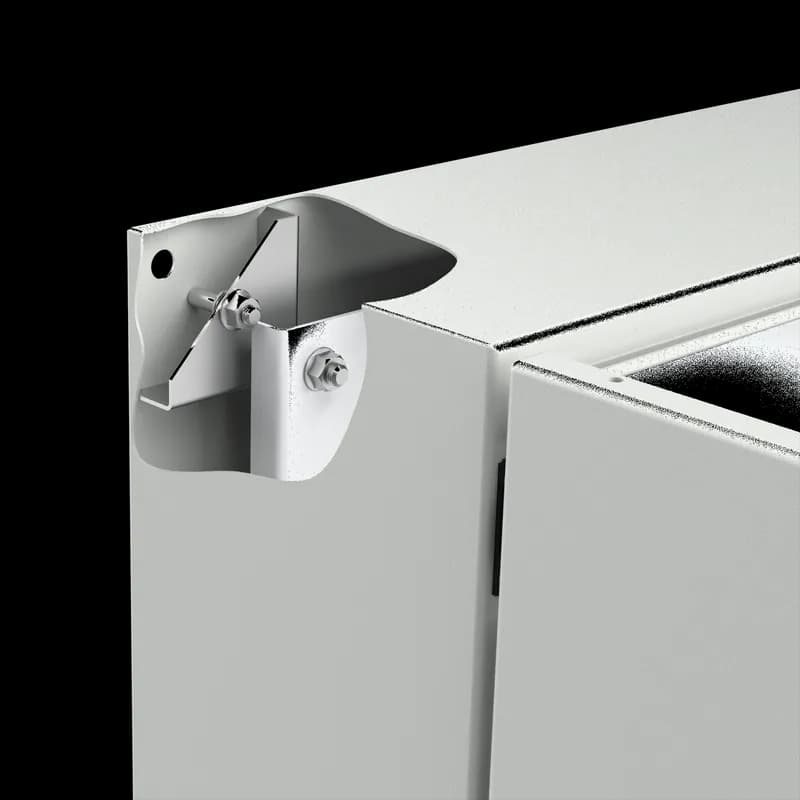

- Use two kits when enclosure has six collar studs for mounting panel
- Kit catalog numbers ending in 2 contain two slide mechanisms; catalog numbers ending in 4 contain four slide mechanisms
- Includes two slide mechanisms and necessary hardware
- Part of the adaptable nVent Concept accessory series
Specifications
Application | Controls and Drives |
Color | Unpainted |
Finish | Plated |
Fits Concept Enclosure | When C = 305 mm |
Fits Concept Enclosure | When C = 12.00 in |
Fits Depth | 12 in |
Fits Depth | 9.84 in |
Material | Mild Steel |
Material | Plated Steel |
Material | Mild Steel;Steel |
Modification Services | Yes |
Mounting Type | Adjustable-Depth Mounting |
Product Family | Concept |
Series | Concept |
Size | fits 12.00 deep + in |
Size | 12.00 inches |
Type | Industrial Panels and Panel Accessories |
Weight | 1.14 lb |
Works With | NEMA |
Package Dimensions (L x W x H) | 13.6 IN x 4.5 IN x 3 IN |
Package Dimensions (L x W x H) | 34.544 cm x 11.43 cm x 7.62 cm |
Package Weight (Imperial) | 1.140 L |
Package Weight (Metric) | 0.517 kg |
