nVent AHE18X12X4 - Hinged-Cover with Knockouts Type 1, 18.00x12.00x4.00, Gray, Steel
nVent

AHE18X12X4

UPC: 783510511609

Contact for Pricing

Overview

The nVent AHE18X12X4 Hinged-Cover Pull Box with Knockouts, Type 1, is a premium-grade steel enclosure designed for secure and versatile electrical installations. Engineered with a durable gray powder-coated finish, this pull box measures 18.00" x 12.00" x 4.00" and meets NEMA Type 1 standards for indoor use, providing reliable protection against dust and incidental contact. The recessed, slotted flush latch ensures tamper resistance while maintaining easy access for maintenance and inspections, making it ideal for commercial, industrial, and institutional applications where security and durability are paramount. Constructed from high-quality steel, the AHE18X12X4 is built to withstand demanding environments. Its hinged cover design allows for quick access to wiring and components, reducing downtime during troubleshooting or upgrades. The box features knockouts on all four sides, offering flexible cable entry points to accommodate various conduit sizes and routing configurations. This versatility simplifies installation in tight spaces or complex layouts, ensuring compliance with NEC and local electrical codes. Typical applications for the nVent AHE18X12X4 include junction and pull points in commercial buildings, data centers, healthcare facilities, and manufacturing plants. It is particularly well-suited for: - **Conduit systems** requiring frequent access for wire pulls or modifications - **Telecommunications and networking** installations where cable management is critical - **Industrial control panels** and machinery enclosures - **Renovation projects** where existing wiring needs to be reorganized or expanded Professionals choose nVent for its reputation as a leader in electrical protection and connectivity solutions. The AHE18X12X4 reflects the brand’s commitment to innovation, safety, and long-term performance. When selecting an electrical pull box, consider factors such as material durability, NEMA rating, and knockout configuration to match your project’s requirements. The Type 1 rating ensures basic protection against environmental hazards, making it a cost-effective choice for most indoor applications. Installation is straightforward with standard mounting hardware and pre-punched knockouts for quick customization. Always ensure proper grounding and secure fastening to maintain electrical safety and structural integrity. For outdoor or more demanding environments, consider NEMA Type 3R or 4X enclosures from nVent’s portfolio. Trust nVent for reliable, code-compliant electrical solutions that stand the test of time. The AHE18X12X4 pull box is more than just an enclosure—it’s a critical component in building resilient, future-ready electrical systems.
  • Butt hinges on door
  • Various sizes of easily removable concentric knockouts on all four sides
  • Mounting holes on back of box
  • Provision for grounding
  • 16 or 14 gauge steel

Specifications

Application
Controls and Drives;Power Distribution
Color
Gray
Color Code
ANSI 61
Depth
13 IN
Depth
4 in
Depth, Maximum
4
Depth, Minimum
4
Finish
Powder Coated
Height
18 IN
Height
44 IN
IP Rating
IP30
Knockout Pattern Along A Sides
A-B-C-D-E-F-G-H-I
Knockout Pattern Along B Sides
C-D-E-F-G
Knockouts
True
Material
Mild Steel;Steel
Material
Steel
Modification Services
Yes
NEMA Rating
1
NEMA Rating
Type 1
Protection Rating
NEMA Type 1
Size
18.00x12.00x4.00 in
Size
18.00x12.00x4.00
Thickness
51.40mm (2.024")
Thickness
16 ga
Type
Mild Steel Wall Mounted Industrial Enclosures
Type
Wall-Mounted / Pad-Mounted Enclosures
Type Number
Type 1
Weight
12.3 lb
Width
305 mm
Width
12 IN
Package Dimensions (L x W x H)
17.9 IN x 12.4 IN x 4.3 IN
Package Dimensions (L x W x H)
45.466 cm x 31.496 cm x 10.922 cm
Package Weight (Imperial)
12.300 L
Package Weight (Metric)
5.579 kg
Screw-Cover Enclosure Type 1 no Knockouts, 18x12x4, Gray, Steel

ASE18X12X4NK

Screw-Cover Enclosure Type 1 no Knockouts, 18x12x4, Gray, Steel
Screw-Cover Enclosure Type 1 with Knockouts, 18x12x4, Gray, Steel

ASE18X12X4

Screw-Cover Enclosure Type 1 with Knockouts, 18x12x4, Gray, Steel

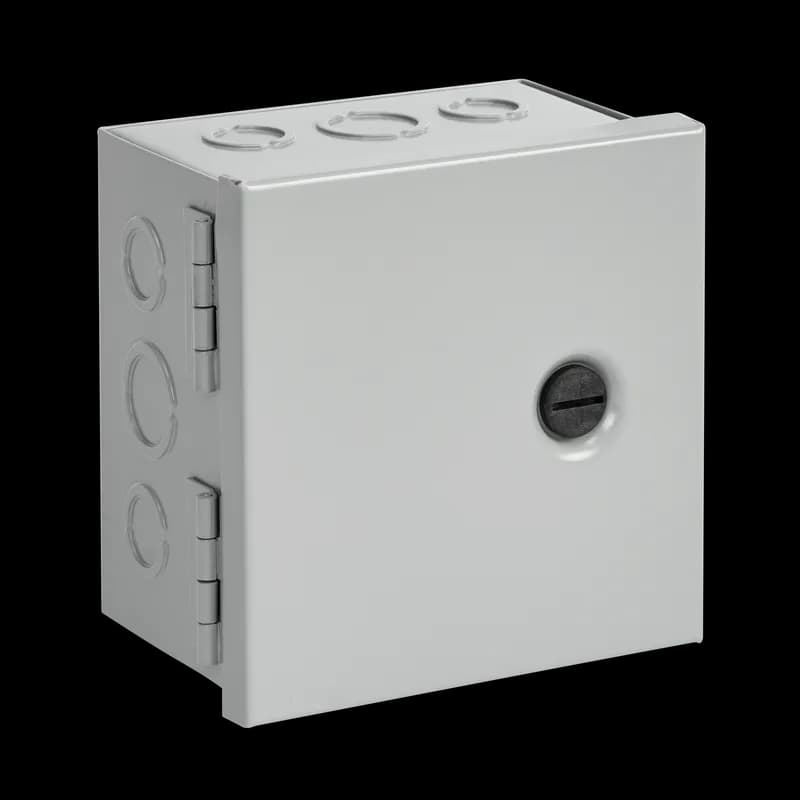

Hinged-Cover with Knockouts Type 1, 16.00x12.00x4.00, Gray, Steel
