Contact for Pricing
Overview

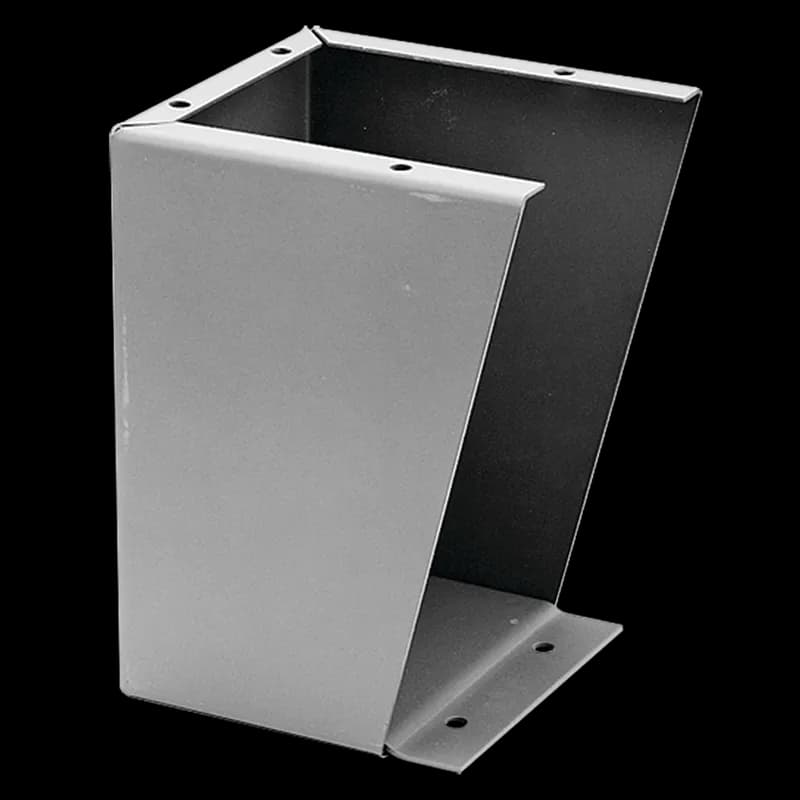

- Each kit includes two stands
- Two sets of floor stands are recommended for enclosures larger than double door Free-Stand enclosures
- Compatible with wall-mount or free-standing enclosures
- No need to remove existing wall-mount brackets
- Enhances airflow and equipment stability
Specifications
Accessory Type | Floor Stand Kits |
Application | Corrosive Environments; Controls and Drives; Power Distribution |
Application | Controls and Drives;Corrosive Environments;Power Distribution |
Color | Unpainted |
Color | Brushed |
Finish | Brushed |
Height | 6 IN |
Height | 152 mm |
Material | Stainless Steel 304 |
Material | SS Type 304;Stainless Steel 304 |
Modification Services | Yes |
Mounting Type | Floor Mounting |
Series | AFK Series |
Size | 6.00x18.06 inch |
Size | 6.00x18.06 in |
Thickness | 2.66 mm |
Thickness | 12 ga |
Thickness | 51.40mm (2.024") |
Type | Base Mounting for Industrial Enclosures |
Weight | 24.4 lb |
Width | 18.06 in |
Width | 459 mm |
Works With | NEMA |
Package Dimensions (L x W x H) | 25.9 IN x 9.8 IN x 8 IN |
Package Dimensions (L x W x H) | 65.786 cm x 24.892 cm x 20.32 cm |
Package Weight (Imperial) | 24.400 L |
Package Weight (Metric) | 11.068 kg |
How to Install the AFK1224SS Enclosure
This guide provides step-by-step instructions for securely installing the AFK1224SS enclosure on a floor stand.
Estimated time: 1h
Tools needed:
Screwdriver, Drill, Torque wrench
Supplies needed:
3/8-inch diameter studs, 3/8−16x1.00 hex head screws, Washers, Nuts, Lockwashers
- Verify enclosure depth
Check the depth of the floor stand (”C” dimension) to ensure it matches the enclosure depth dimension.
- Anchor floor studs
Securely anchor six 3/8-inch diameter studs (not provided with kit) in the floor as shown in the installation diagram.
- Drill enclosure holes
Drill the appropriate hole pattern in the bottom of the enclosure as indicated in the installation diagram.
- Bolt floor stand to enclosure
Using the provided 3/8−16x1.00 hex head screws, washers, and nuts, bolt the floor stand to the enclosure. Firmly tighten all fasteners.
- Position the enclosure
Position the enclosure with the attached floor stands over the anchored floor studs, ensuring the studs extend through the base holes in the floor stands.
- Secure floor stands
Secure the floor stands to the anchored floor studs using 3/8 inch nuts and lockwashers or with 3/8 inch locknuts and washers. Torque to 120 in-lbs.
- Check electrical clearances
WARNING: To avoid electric shock, do not energize any circuits before checking all internal and external electrical and mechanical clearances to ensure safe operation.
