Contact for Pricing
Overview

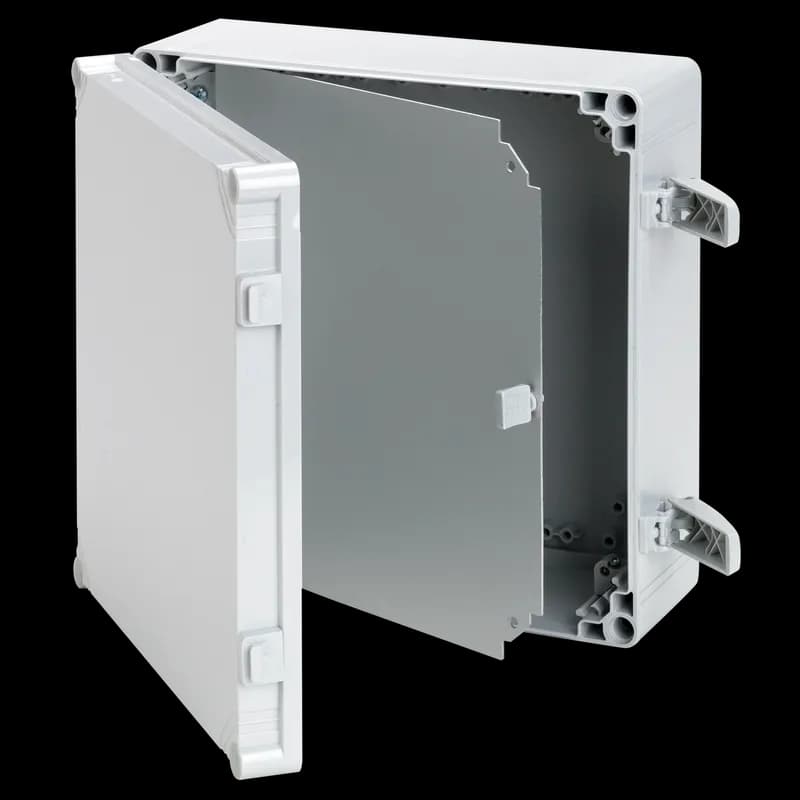

- Includes four PolyPro Adjustable Panel Blocks. No enclosure modification is required for installation.
- 7.00 x 7.62 inch (178 x 194 mm) dimensions for versatile internal organization.
- Integrates with PolyPro internal rail system for adjustable height within the top 5 inches.
- Tool-free installation with included PolyPro Adjustable Panel Blocks and Allen wrench.
- Allows for simultaneous mounting of multiple panels for scalable enclosure layouts.
Specifications
Application | Controls and Drives;Corrosive Environments |
Color | Unpainted |
Finish | Anodized |
Height | 7 in |
Height | 44 IN |
Material | Anodized Aluminum |
Material | Aluminum |
Material | PolyPro |
Modification Services | Yes |
Mounting Type | Swing-Out Panel with Adjustable Blocks |
Mounting Type | Swing-Out Panel Adjustable |
Panel Size | 178 x 194 mm |
Panel Size | 7.00 x 7.62 in |
Product Family | PolyPro |
Series | PolyPro |
Size | 6.75x6.88 |
Size | 7.00 x 7.62 in (178 x 194 mm) |
Size | 6.75x6.88 in |
Thickness | 0.08 in |
Thickness | 51.40mm (2.024") |
Type | Industrial Panels and Panel Accessories |
Weight | 0.5 lb |
Width | 193 mm |
Width | 7.62 in |
Works With | NEMA |
Package Dimensions (L x W x H) | 12 IN x 8.5 IN x 1.5 IN |
Package Dimensions (L x W x H) | 30.48 cm x 21.59 cm x 3.81 cm |
Package Weight (Imperial) | 0.500 L |
Package Weight (Metric) | 0.227 kg |
How to Install the A64PSWPNL Controller
Complete installation guide for mounting and wiring the A64PSWPNL Controller on a DIN rail.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Mount the controller
Secure the A64PSWPNL controller to the DIN rail using the integrated clips. Ensure the controller is level and firmly attached.
- Connect the power supply
Use terminal connectors to connect the power supply wires to the designated terminals on the controller. Ensure the connections are tight and secure.
- Verify the connections
Use a multimeter to check the voltage at the power terminals to ensure proper power supply. Confirm that the voltage matches the specifications outlined in the documentation.
