Overview
- Back Panels used with Free-Stand enclosures
- White polyester powder paint finish

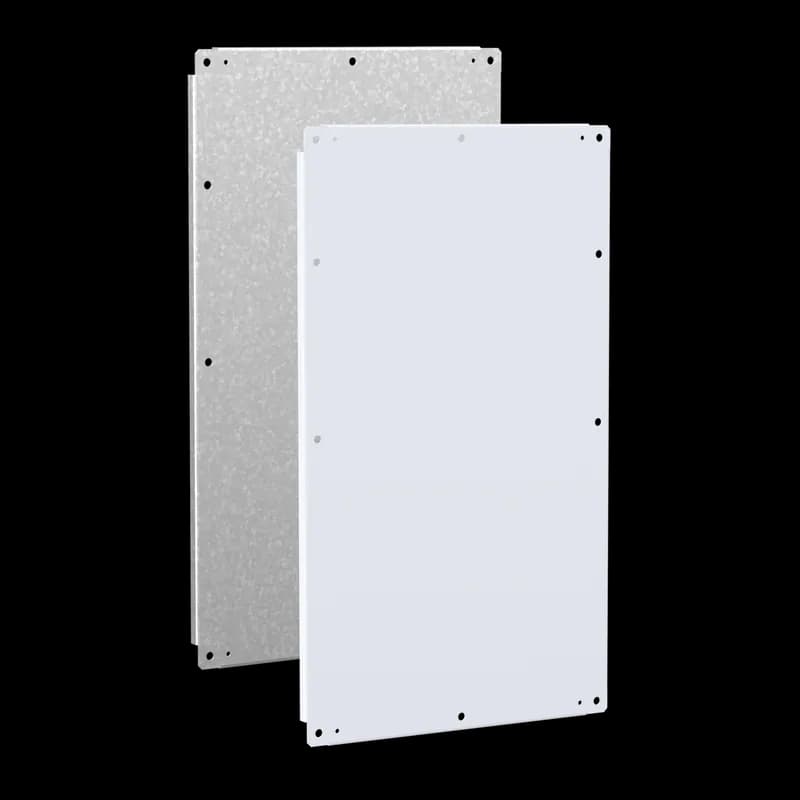

- Designed for nVent Free-Stand Type 1 one-door enclosures
- Provides organized mounting surface for electrical components
- Ensures NEMA 1 protection by facilitating systematic component mounting
Specifications
Application | Controls and Drives;Power Distribution |
Application | Power Distribution; Controls and Drives |
Color | White |
Finish | Powder Coated |
Height | 1,858 mm |
Height | 73.16 in |
Ip Rating | IP1 |
Material | Mild Steel |
Material | 12-gauge steel |
Material | Mild Steel;Steel |
Modification Services | Yes |
Mounting Type | Free-Stand, Type 1 One-Door Enclosures |
NEMA Rating | Type 1 |
Panel Size | 1858 x 813 mm |
Panel Size | 73.16 x 32.00 in |
Size | fits 84.00x36/37 in |
Size | 84.00x36/37 |
Size | 84.00x36/37 inches |
Thickness | 2.66 mm |
Thickness | 12 ga |
Thickness | 51.40mm (2.024") |
Type | Industrial Panels and Panel Accessories |
Weight | 50 lb |
Width | 813 mm |
Width | 32 in |
Width | 812 mm |
Works With | NEMA |
Package Dimensions (L x W x H) | 81 IN x 31 IN x 4 IN |
Package Dimensions (L x W x H) | 205.74 cm x 78.74 cm x 10.16 cm |
Package Weight (Imperial) | 50.000 L |
Package Weight (Metric) | 22.680 kg |
How to Install the A40P30 Panel Enclosure
This guide provides step-by-step instructions for installing and configuring the A40P30 panel enclosure for optimal performance.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Wire connectors
- Mount the enclosure
Secure the A40P30 panel enclosure to a suitable surface using the provided mounting screws. Ensure it is level and stable.
- Connect power supply
Use wire connectors to connect the power supply wires to the designated terminals inside the enclosure. Ensure all connections are tight and secure.
- Verify electrical connections
Use a multimeter to check the voltage at the terminals to ensure proper power supply. Confirm that the readings are within the specified range.
- Configure settings
Access the control panel of the A40P30 and configure the necessary settings according to your operational requirements.
- Calibrate the system
Follow the calibration procedure outlined in the user manual to ensure the system operates accurately and efficiently.
