Overview

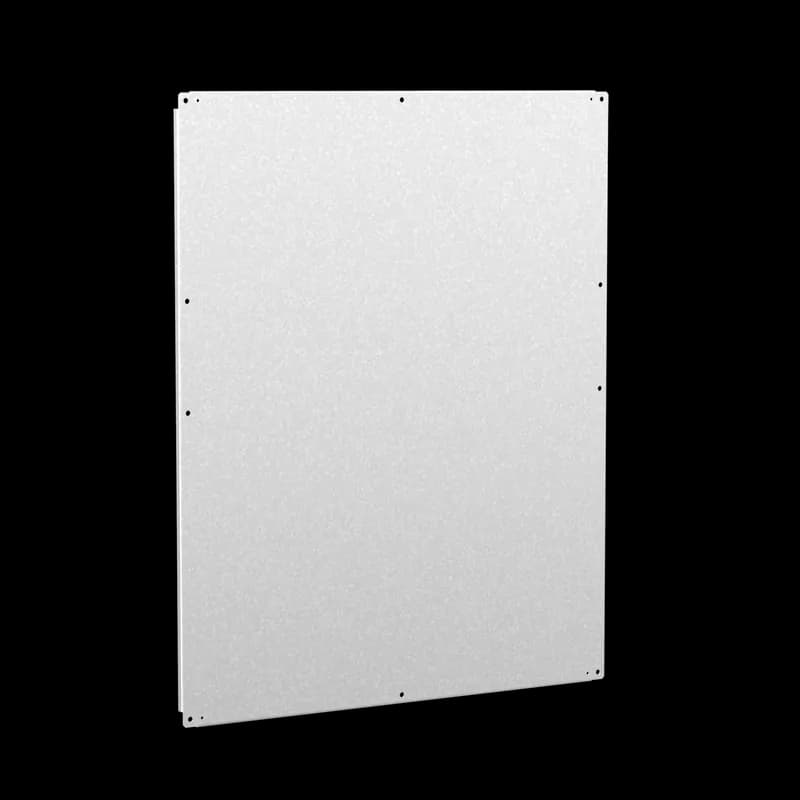

- Panel mounting hardware is furnished with all enclosures which accept these panels
- Integrated mounting studs for easy accessory attachment
- Designed for nVent Free-Stand Multi-Door Enclosures
- Includes top and bottom stiffeners for superior load support
- Pre-drilled lifting holes facilitate safe and efficient installation
Specifications
Application | Arc Flash Safety;Controls and Drives;Corrosive Environments;Power Distribution |
Application | Controls and Drives; Power Distribution; Corrosive Environments; Arc Flash Safety |
Color | White |
Finish | Powder Coated |
Fits Enclosure Height | 72 in |
Height | 60 in |
Height | 1,524 mm |
Hole Quantity | 10 |
Material | Steel |
Material | Mild Steel |
Modification Services | Yes |
Mounting Type | Mounting Stud |
Mounting Type | Free-Stand with Mounting Stud |
Panel Size | 60.00 x 60.00 in |
Panel Size | 1524 x 1524 mm |
Size | 72x66 |
Size | 72x66 inches |
Thickness | 3.04 mm |
Thickness | 11 ga |
Thickness | 51.40mm (2.024") |
Type | Industrial Panels and Panel Accessories |
Weight | 146 lb |
Width | 1,524 mm |
Width | 60 in |
Works With | NEMA |
Package Dimensions (L x W x H) | 72 IN x 72 IN x 1 IN |
Package Dimensions (L x W x H) | 182.88 cm x 182.88 cm x 2.54 cm |
Package Weight (Imperial) | 250.000 L |
Package Weight (Metric) | 113.400 kg |
How to Install the A90PM78BG Panel
This guide provides step-by-step instructions for installing the A90PM78BG panel in a suitable enclosure.
Estimated time: 45m
Tools needed:
Screwdriver, Drill, Level
Supplies needed:
Mounting screws, Sealing washers
- Prepare the installation site
Ensure the installation area is clean and free of debris. Verify that the enclosure is suitable for the A90PM78BG panel.
- Mount the panel
Align the A90PM78BG panel with the mounting holes in the enclosure. Secure the panel using the provided mounting screws, ensuring it is level.
- Seal the installation
Install sealing washers around the screws to maintain the enclosure's integrity and prevent moisture ingress.
- Connect wiring
Connect the necessary wiring to the terminals on the A90PM78BG panel according to the wiring diagram provided in the documentation.
- Verify connections
Use a multimeter to check the connections for continuity and ensure that all connections are secure.
- Calibrate the panel
Follow the calibration procedure outlined in the user manual to ensure the panel operates correctly.
