Contact for Pricing
Overview

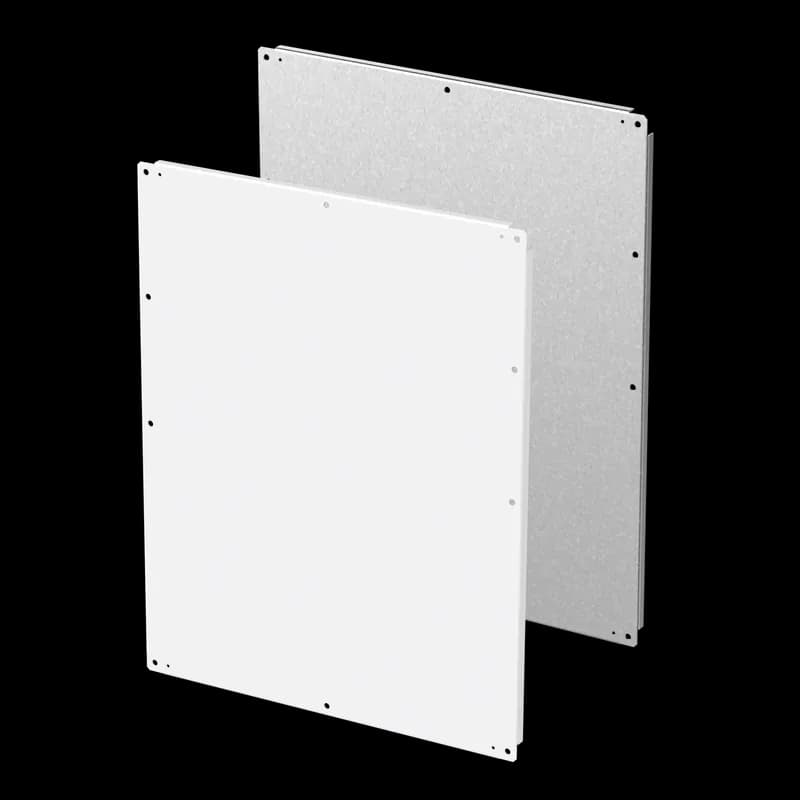

- Panel mounting hardware is furnished with all enclosures which accept these panels
- Precisely sized at 33.00x21.00 inches for optimal fit.
- Compatible with nVent Type 3R, 4, 4X, 12, and 13 enclosures.
- Suitable for both Wall-Mount and Free-stand/Floor-Mount applications.
- Provides a stable platform for mounting internal enclosure components.
Specifications
Accessory Type | Panels and Panel Accessories |
Application | Arc Flash Safety;Controls and Drives;Corrosive Environments;Power Distribution |
Application | Corrosive Environments; Arc Flash Safety; Power Distribution; Controls and Drives |
Color | Unpainted |
Edge Flange Quantity | 2 |
Finish | Galvanized |
Gauge | 12 ga |
Height | 33 in |
Height | 838 mm |
Hole Quantity | 6 |
Material | Conductive steel;Mild Steel |
Material | Mild Steel |
Modification Services | No |
Panel Gauge | 12 ga. |
Panel Size | 33.00 x 21.00 in |
Panel Size | 838 x 533 mm |
Size | fits 36x24 in |
Thickness | 0.1 in |
Thickness | 2.66 mm |
Thickness | 51.40mm (2.024") |
Type | Industrial Panels and Panel Accessories |
Weight | 22 lb |
Width | 21 IN |
Width | 533 mm |
Works With | NEMA |
Package Dimensions (L x W x H) | 33.3 IN x 21.7 IN x 1.3 IN |
Package Dimensions (L x W x H) | 84.582 cm x 55.118 cm x 3.302 cm |
Package Weight (Imperial) | 22.000 L |
Package Weight (Metric) | 9.979 kg |
How to Install the A40P30 Panel Enclosure
This guide provides step-by-step instructions for installing and configuring the A40P30 panel enclosure for optimal performance.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Wire connectors
- Mount the enclosure
Secure the A40P30 panel enclosure to a suitable surface using the provided mounting screws. Ensure it is level and stable.
- Connect power supply
Use wire connectors to connect the power supply wires to the designated terminals inside the enclosure. Ensure all connections are tight and secure.
- Verify electrical connections
Use a multimeter to check the voltage at the terminals to ensure proper power supply. Confirm that the readings are within the specified range.
- Configure settings
Access the control panel of the A40P30 and configure the necessary settings according to your operational requirements.
- Calibrate the system
Follow the calibration procedure outlined in the user manual to ensure the system operates accurately and efficiently.
Frequently Asked Questions about nVent
What industries and applications are nVent products used for?
nVent products are engineered for critical infrastructure and industrial applications across multiple demanding sectors. Key markets include Construction, Data Centers, Defense, Healthcare, Mining, Oil & Gas Refineries, Power Plants, Rail/Transit, Renewable Energy, Security, Ship Building, Steel Mills, Telecom, and Utilities. Their solutions are designed to withstand extreme environmental conditions, with temperature ranges from -55°C to 105°C and specialized features like UV resistance, oil resistance, and flame resistance.
What environmental ratings do nVent products have?
nVent enclosures feature comprehensive environmental ratings, including UL 508A, CSA, and NEMA Type 1, 2, 3, 4, 4X, 12, and 13 certifications. They are rated IEC 60529 IP66, providing robust protection against dust, water, and corrosion in both indoor and outdoor environments. These products operate effectively in temperatures ranging from -40°F to 266°F, with enhanced UV inhibitors for outdoor weathering and oil-resistant gaskets for superior sealing.
What accessories are available for nVent products?
nVent offers a comprehensive range of accessories across multiple product lines, including EMC accessories like bonding cable clamps and strain reliefs, inline accessories such as lock inserts and mounting brackets, CONCEPT accessories including panel conversion kits and rack-mount angles, and seismic accessories for specialized mounting requirements. Key accessory categories include grounding kits, DIN rail mounting solutions, panel supports, handles, and various mounting hardware compatible with different enclosure types.
What certifications and standards do nVent products comply with?
nVent products meet critical international certifications including UL (United States), CSA (Canada), CE (European Community), and EAC (Russia). Our products are designed to comply with rigorous industrial standards such as NEMA enclosure ratings, IEC 60529 IP ratings, and international safety standards across multiple industrial markets including oil & gas, power, manufacturing, and infrastructure.
What is nVent's warranty policy?
nVent offers a standard 18-month warranty from invoicing date for most automation products, covering defects in workmanship and materials. The warranty requires proper transportation, handling, storage, and installation within specified environmental conditions. Warranty coverage includes repair or replacement at nVent's discretion, with certain conditions such as authorized service repairs and operation within designed capacity limits.
What technical support does nVent offer?
nVent offers comprehensive technical support through multiple global contact centers across North America, South America, Europe, Middle East, India, and Asia. Customers can reach technical experts by phone at regional numbers, with the North American headquarters in Minneapolis, MN providing primary support at +1.763.421.2240. Additionally, nVent provides online support resources through their website, including CAD drawing downloads and an 'Ask The Expert' feature to assist with product technical inquiries.
