Contact for Pricing
Overview

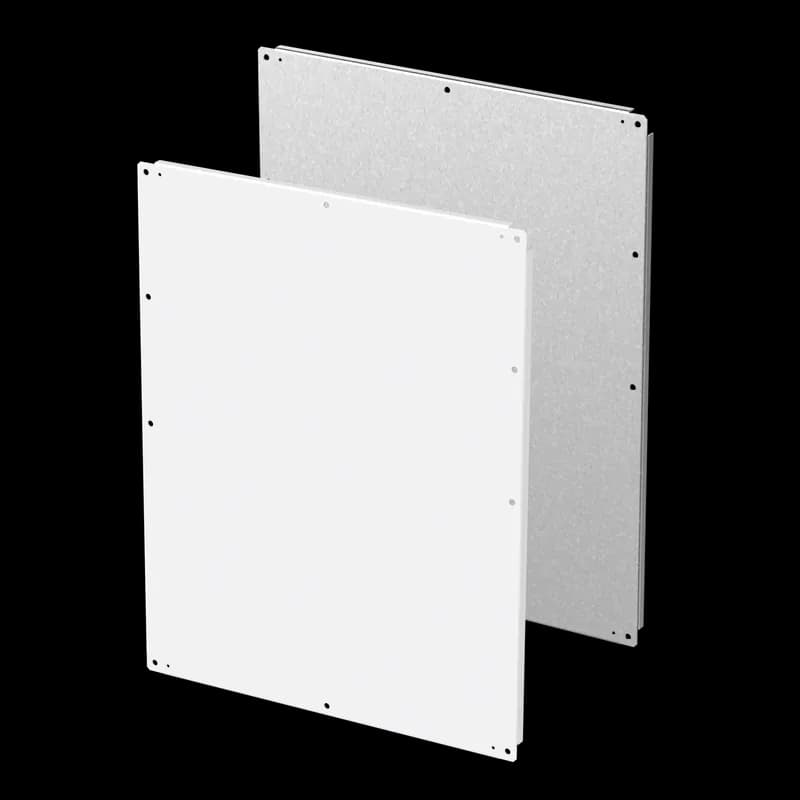

- Panel mounting hardware is furnished with all enclosures which accept these panels
- Precisely fits 30x20 inch nVent enclosures.
- Compatible with Type 3R, 4, 4X, 12, and 13 enclosure ratings.
- Provides a stable and organized mounting surface for internal components.
- Enhances interior visibility for easier installation and maintenance.
Specifications
Accessory Type | Panels and Panel Accessories |
Application | Arc Flash Safety;Controls and Drives;Corrosive Environments;Power Distribution |
Application | Corrosive Environments; Power Distribution; Controls and Drives; Arc Flash Safety |
Color | White |
Edge Flange Quantity | 2 |
Finish | Powder Coated |
Gauge | 12 ga |
Height | 27 IN |
Height | 686 mm |
Hole Quantity | 4 |
Material | Mild Steel |
Material | Mild Steel;Painted steel |
Modification Services | No |
Panel Gauge | 12 ga. |
Panel Size | 686 x 432 mm |
Panel Size | 27.00 x 17.00 in |
Size | fits 30x20 in |
Thickness | 0.1 in |
Thickness | 2.66 mm |
Thickness | 51.40mm (2.024") |
Type | Industrial Panels and Panel Accessories |
Weight | 15 lb |
Width | 432 mm |
Width | 431 mm |
Width | 17 in |
Works With | NEMA |
Package Dimensions (L x W x H) | 27 IN x 17.5 IN x 1.3 IN |
Package Dimensions (L x W x H) | 68.58 cm x 44.45 cm x 3.302 cm |
Package Weight (Imperial) | 15.000 L |
Package Weight (Metric) | 6.804 kg |
How to Install the A40P30 Panel Enclosure
This guide provides step-by-step instructions for installing and configuring the A40P30 panel enclosure for optimal performance.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Wire connectors
- Mount the enclosure
Secure the A40P30 panel enclosure to a suitable surface using the provided mounting screws. Ensure it is level and stable.
- Connect power supply
Use wire connectors to connect the power supply wires to the designated terminals inside the enclosure. Ensure all connections are tight and secure.
- Verify electrical connections
Use a multimeter to check the voltage at the terminals to ensure proper power supply. Confirm that the readings are within the specified range.
- Configure settings
Access the control panel of the A40P30 and configure the necessary settings according to your operational requirements.
- Calibrate the system
Follow the calibration procedure outlined in the user manual to ensure the system operates accurately and efficiently.
