Woodhead Y560P - 60 Amp Safeway® Pin & Sleeve Device, Exposition Plug, 4 Pole/5 Wire Grounding
Woodhead

Y560P

Alternate Item Number: 1301500283

UPC: 786788315047

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The Woodhead Y560P is a 60 Amp Safeway® Pin & Sleeve Exposition Plug designed for reliable temporary power distribution in industrial settings. This device features a 4-pole, 5-wire grounding configuration, adhering to IEC 309-1 and 309-2 standards for safe and compliant power connections. Constructed with a durable Type G nylon housing and contact carrier, and brass pins, the Y560P ensures longevity in demanding environments. Its Safeway® design includes a latching mechanism to prevent accidental disengagement and a keyway for accurate alignment. Internal and external strain relief features protect the cable from bending stress. The plug is IP44 rated, offering protection against solid objects larger than 1mm and splashing water. Ideal for temporary power systems, power disconnects for portable processing equipment, and machinery intended for export or use with foreign-built equipment, the Y560P provides a secure, weather-resistant connection. Its self-adjusting split contact sleeves maintain constant pressure for electrical continuity and grounding, while large, identified terminals and an "onion ring" neoprene bushing accommodate a wide range of cable sizes. SKU: Y560P.
  • 60 Amp, 4 Pole/5 Wire Grounding Safeway® Pin & Sleeve Exposition Plug
  • Durable Type G nylon housing and contact carrier with brass pins
  • IP44 rated for protection against solid objects and splashing water
  • Latching mechanism and keyway for secure, accurate connections
  • Internal and external strain relief for cable protection

Specifications

Amperage Rating
60 A
Brand Name
Woodhead
Connection Type
Pin & Sleeve
Current Rating
60 A
Environmental Conditions
None
IP Rating
IP66
Material
Metal
Number Of Poles
4-pole/5-wire
Number of Poles
4
Poles
4P/5W
Series
Safeway®
Sub Brand
Safeway
Type
Plug
Voltage Rating
277V / 480V
Package Weight (Imperial)
1.375 L
Package Weight (Metric)
0.624 kg
Safeway® Plug with Locking Blade, 4 Pole/5 Wire, Non-NEMA, 600V Grounding Tab, Cord Grip Body Size F4

26T10

Safeway® Plug with Locking Blade, 4 Pole/5 Wire, Non-NEMA, 600V Grounding Tab, Cord Grip Body Size F4
DB 4P MSPG ORANGE 1' CHAIN

43302

DB 4P MSPG ORANGE 1' CHAIN
Super-Safeway® Plug with Locking Blade, 2 Pole/2 Wire, NEMA L2-20, 250V

2607

Super-Safeway® Plug with Locking Blade, 2 Pole/2 Wire, NEMA L2-20, 250V

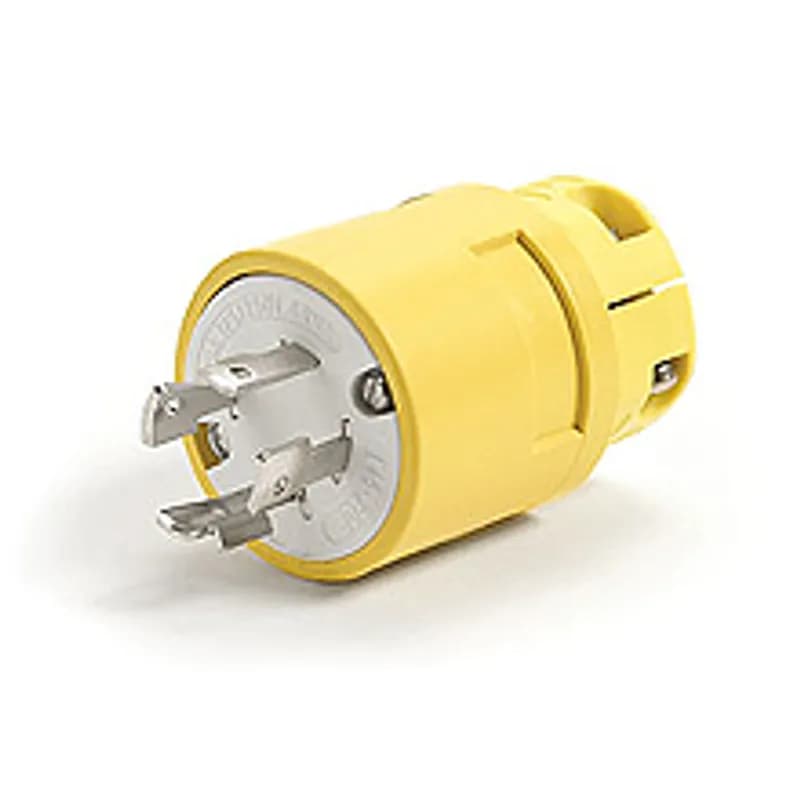

Super-Safeway® Plug with Locking Blade, 3 Pole/4 Wire, NEMA L14-20, 250V

2674

Super-Safeway® Plug with Locking Blade, 3 Pole/4 Wire, NEMA L14-20, 250V
Safeway® Connector, 2 Pole/3 Wire, NEMA 6-20, 250V

5469

Safeway® Connector, 2 Pole/3 Wire, NEMA 6-20, 250V
100 Amp Watertite® Pin & Sleeve Plug, 3 Pole/4 Wire, 3ø 250V, Blue

4100P9W

100 Amp Watertite® Pin & Sleeve Plug, 3 Pole/4 Wire, 3ø 250V, Blue

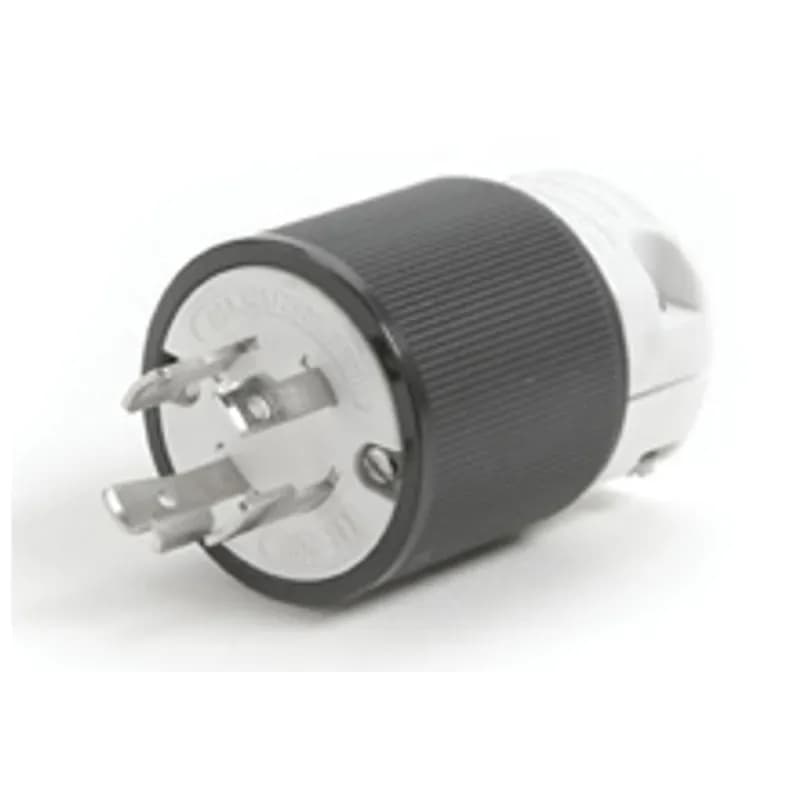

Safeway® Plug with Locking Blade, 3 Pole/4 Wire, NEMA L14-20, 250V

26T74

Safeway® Plug with Locking Blade, 3 Pole/4 Wire, NEMA L14-20, 250V

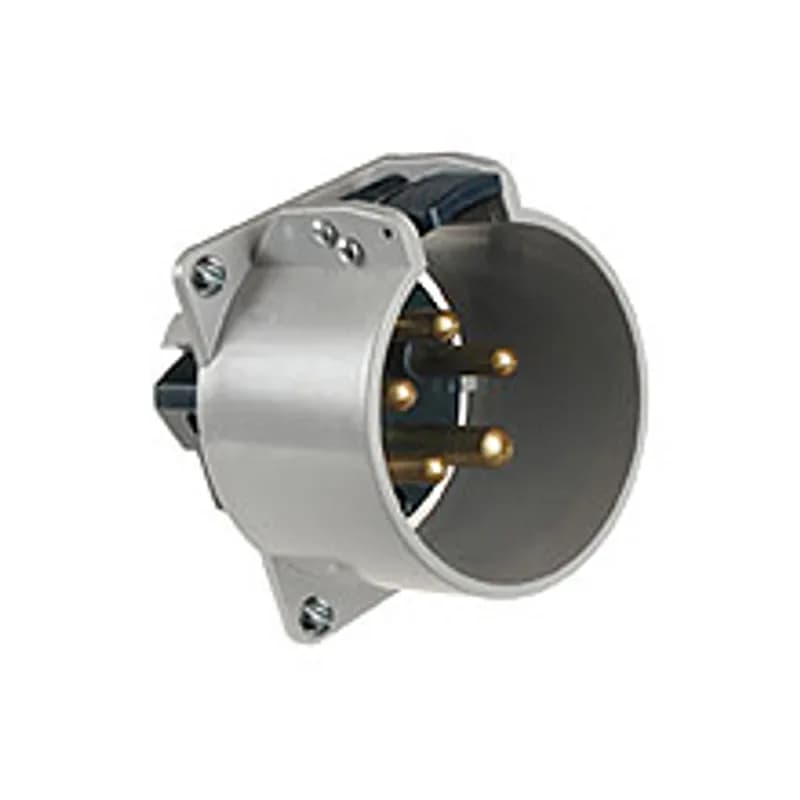

60 Amp Safeway® Pin & Sleeve Device, Exposition Inlet, 4 Pole/5 Wire Grounding

Y560B

60 Amp Safeway® Pin & Sleeve Device, Exposition Inlet, 4 Pole/5 Wire Grounding
60 Amp Safeway® Pin & Sleeve Device, Exposition Plug, 4 Pole/5 Wire Grounding with Flat Cable

Y560PF

60 Amp Safeway® Pin & Sleeve Device, Exposition Plug, 4 Pole/5 Wire Grounding with Flat Cable

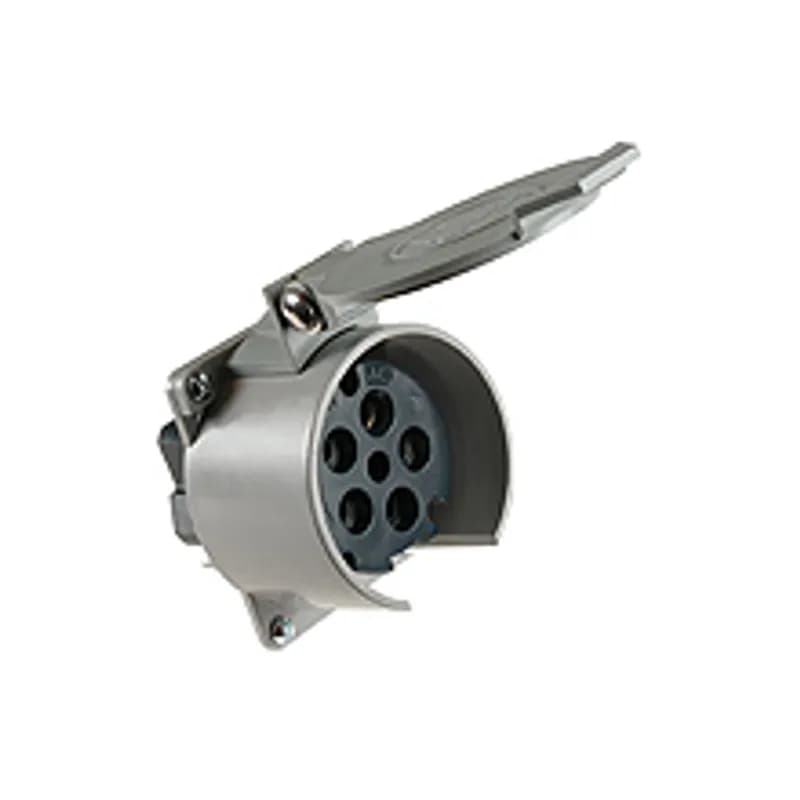

60 Amp Safeway® Pin & Sleeve Device, Exposition Receptacle with Flip Lid, with Flip Lid, 4 Pole/5 Wire Grounding

Y561R

60 Amp Safeway® Pin & Sleeve Device, Exposition Receptacle with Flip Lid, with Flip Lid, 4 Pole/5 Wire Grounding

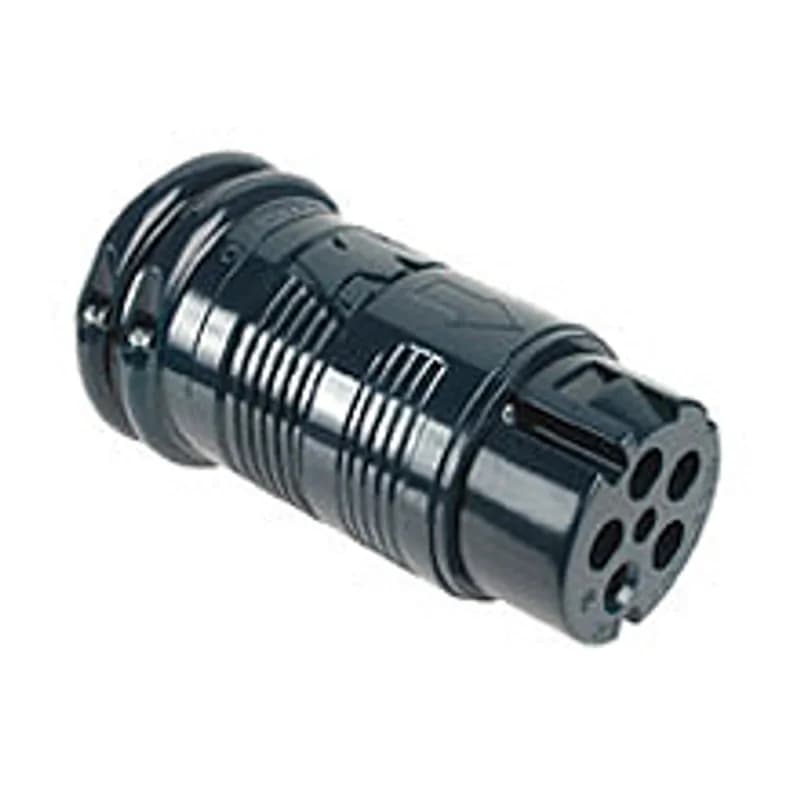

60 Amp Safeway® Pin & Sleeve Device, Exposition Connector, 4 Pole/5 Wire Grounding with Flat Cable
