Woodhead 9358-1547 - Woodhead® POW-R-MITE® Industrial Duty Cable Reel, 14/3 SOW, 15.24m (50.0' ) Cord Length with 15A Connector and Ball Stop
Woodhead

9358-1547

Alternate Item Number: 1300830252

UPC: 786788351076

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The Woodhead® POW-R-MITE® Industrial Duty Cable Reel (SKU 9358-1547) offers superior cable management for demanding industrial settings. This robust reel features a 14/3 SOW, 600V rated cable extending to 15.24 meters (50.0 feet), equipped with a 15A connector and a ball stop to prevent tangling. Its rugged cast aluminum housing with a yellow powder-coat finish and NEMA 4 rating ensures protection against dust and water, making it suitable for indoor and outdoor use. The reel's design includes an easily adjustable tension mechanism and a containerized, replaceable main spring for simplified maintenance. The four-roller cable guide is adjustable over a 270° arc in 5° increments for precise configuration, minimizing cable wear. This reel is ideal for manufacturing, construction, automotive repair, and maintenance operations, providing organized and safe power distribution. Woodhead's POW-R-MITE series is known for heavy-duty performance, ensuring reliability and longevity in rigorous applications. The reel's construction prioritizes user convenience and safety, featuring a large, easy-access junction box and a ratchet lock that can be easily disengaged. The collector ring is rated for 30A. UL File No. E22769 and CSA File No. LR29921.
  • 15.24m (50.0') 14/3 SOW, 600V rated cable with 15A connector and ball stop
  • Rugged cast aluminum construction with yellow powder-coat finish
  • NEMA 4 rated for protection against dust and water (reel only)
  • Adjustable four-roller cable guide (270° arc, 5° increments)
  • Containerized, replaceable main spring for safe and simple maintenance

Specifications

Brand Name
Woodhead
Cable Type
14/3 SOW
Color
Yellow
Connection Type
15A Connector
Current Rating
15 A
Duty
Industrial
Ip Rating
IP4
Material
Cast Aluminum
Nema Rating
NEMA 4
Series
POW-R-MITE
Size
15.24 m (50.0 ft)
Special Features
Applications: Vertical Lift, Drag, Recovery and Horizontal Stretch with 10% Sag.
Standard
Ratchet
Sub Brand
POW-R-MITE
Type
Cable Reel
Voltage Rating
120V
Package Weight (Imperial)
41.000 L
Package Weight (Metric)
18.598 kg
Woodhead® POW-R-MITE® Industrial Duty Cable Reel, 12/3 SOW, 15.27m (50.0') Cord Length with 20A Pendant Outlet Box and Ball Stop

92433-3080

Woodhead® POW-R-MITE® Industrial Duty Cable Reel, 12/3 SOW, 15.27m (50.0') Cord Length with 20A Pendant Outlet Box and Ball Stop
Woodhead® Super-Safeway™ Heavy Duty Hand Wind Reel, 14/3 SOW, 30.48m (100.0' ) Cord Length

930D143

Woodhead® Super-Safeway™ Heavy Duty Hand Wind Reel, 14/3 SOW, 30.48m (100.0' ) Cord Length
Woodhead® Super-Safeway™ Heavy Duty Hand Wind Reel with 3 Conductor Slip Ring

932

Woodhead® Super-Safeway™ Heavy Duty Hand Wind Reel with 3 Conductor Slip Ring
CORD REEL - INDUSTRIAL DUTY #AM095106210

095106210

CORD REEL - INDUSTRIAL DUTY #AM095106210
Woodhead® POW-R-MITE® Industrial Duty Cable Reel, 12/3 SOW, 7.62m (25.0' ) Cord Length

9383

Woodhead® POW-R-MITE® Industrial Duty Cable Reel, 12/3 SOW, 7.62m (25.0' ) Cord Length
Woodhead® POW-R-MITE® Industrial Duty Cable Reel, 12/6 SOW, 9.14m (30.0' ) Cord Length

92463

Woodhead® POW-R-MITE® Industrial Duty Cable Reel, 12/6 SOW, 9.14m (30.0' ) Cord Length
30A 3C 600V SC 7/8IN

SR203

30A 3C 600V SC 7/8IN
Woodhead® Super-Safeway™ Heavy Duty Hand Wind Reel

915

Woodhead® Super-Safeway™ Heavy Duty Hand Wind Reel
Woodhead® Super-Safeway™ Heavy Duty Hand Wind Reel with 14/3 SOW, 60.96m (200.0' ) Cord Length and (4) NEMA 5-15 Receptacles

910T143

Woodhead® Super-Safeway™ Heavy Duty Hand Wind Reel with 14/3 SOW, 60.96m (200.0' ) Cord Length and (4) NEMA 5-15 Receptacles
Woodhead® Super-Safeway™ Heavy Duty Hand Wind Reel with 12/3 SOW, 30.48m (100.0' ) Cord Length and (4) NEMA 5-15 Receptacles

910D123

Woodhead® Super-Safeway™ Heavy Duty Hand Wind Reel with 12/3 SOW, 30.48m (100.0' ) Cord Length and (4) NEMA 5-15 Receptacles

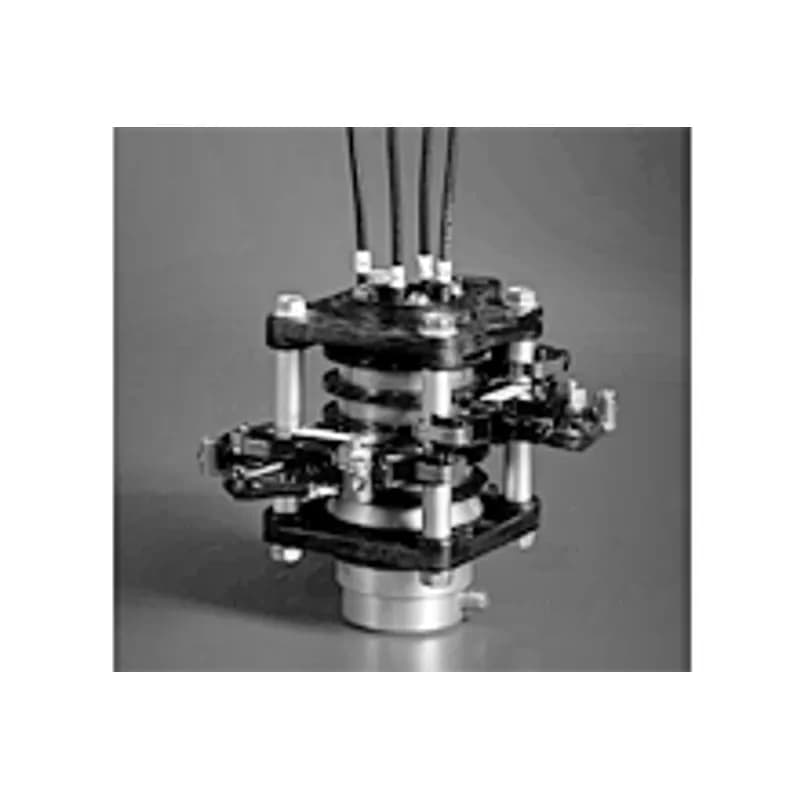

Aero-Motive® Self-Contained Slip Ring, 30A, 12 AWG, 8 Conductors, Bore Size 22.23mm (.875") Diameter
