Woodhead 610-RT - Super-Safeway 45° Right Turn Cable Protector, 5-Channel, Black with Orange Lid
Woodhead

610-RT

Alternate Item Number: 1301380119

UPC: 781725509435

Documents & Media
Technical DrawingSpecification Sheet

Contact for Pricing

Overview

The Woodhead Super-Safeway 610-RT is a 5-channel, 45° right-turn cable protector designed for robust cable management and safety in industrial environments. Constructed with a durable polyurethane base and a UV-stabilized polyurethane lid, this protector is built to withstand heavy loads, supporting up to 16,300 lbs per tire and 32,600 lbs per axle at 70°F. Its 5-channel design accommodates cables and connections up to 1.25 inches (3.175 cm) in diameter, with a center channel width of 1.625 inches and other channels at 1.25 inches. The bright orange, hinged lid enhances visibility, reducing tripping hazards and complying with ANSI Z535.3 safety standards, while the exclusive tread design provides excellent traction. Operating within a temperature range of -40°C to +48°C, the 610-RT is suitable for indoor and sheltered outdoor use. Its slip-notch connector design eases mating and unmating, and the integrated carrying handle simplifies transport. The protector's dimensions are 19.75" width, 2.0" height, and it weighs 15.5 lbs. This modular system cross-mates with other protective brands, offering scalable solutions for warehouses, manufacturing floors, construction sites, and event venues.
  • 5-channel design accommodates cables up to 1.25-inch diameter
  • 45° right turn configuration for directional cable routing
  • High load capacity: 16,300 lbs per tire, 32,600 lbs per axle
  • Durable polyurethane construction with UV-stabilization
  • High-visibility orange hinged lid for safety and easy access

Specifications

Brand Name
Woodhead
Color
Black, Orange
Color
Black with Orange Lid
Height
50.80mm
Length
0.52m
Material
Polyurethane
Material
Polymer
Mounting Type
Snap-fit, tool-free
Poles
5-Channel
Series
Super-Safeway
Sub Brand
Super-Safeway
Type
Cable Protector
Width
0.50m

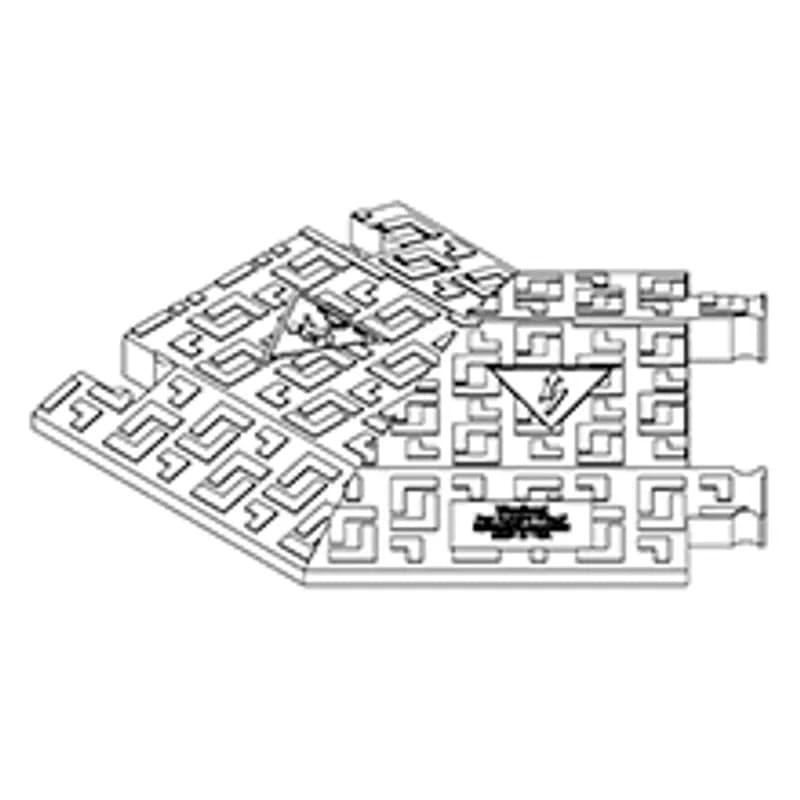

Super-Safeway 45° Left Turn Cable Protector, 5-Channel, Black with Orange Lid

610-LT

Super-Safeway 45° Left Turn Cable Protector, 5-Channel, Black with Orange Lid
Super-Safeway Cable Protector, 5-Channel, 0.90m (36.0") Length, Black with Safety Orange Flip Lid

610-MAIN

Super-Safeway Cable Protector, 5-Channel, 0.90m (36.0") Length, Black with Safety Orange Flip Lid

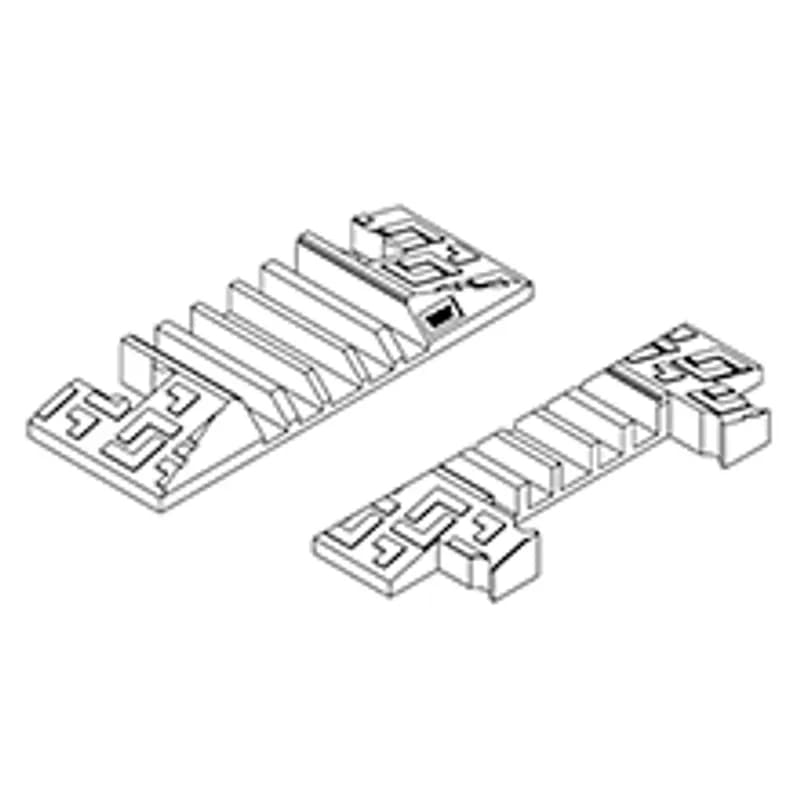

Super-Safeway Cable Protector End Caps, 5-Channel, Male and Female, Black
