Woodhead 5550 - MAX-LOC® Strain Relief Cord-Sealing Grip, 1" NPT, Straight Male, Cable Diameter 14.27-17.45mm (.562-.687")
Woodhead

5550

Alternate Item Number: 1300980139

UPC: 786788721305

Documents & Media
Specification Sheet

Contact for Pricing

Minimum Qty: 10

Multiplier: 1

*Contact for lower quantities*

Overview

The Woodhead MAX-LOC® Strain Relief Cord-Sealing Grip (SKU: 5550) is a precision-engineered cable management solution designed for industrial environments requiring reliable cable protection and sealing. This straight male 1" NPT threaded grip accommodates cable diameters from 14.27mm to 17.45mm (0.562" to 0.687"), providing a secure fit for medium-duty applications. Constructed with a durable nylon body and a rubber grommet, it delivers a liquid-tight seal that resists environmental hazards including moisture, dust, and chemicals. The grommet is color-coded gray for easy identification of compatible cable sizes. The compression nut, made of zinc-plated steel, ensures a tight seal while preventing cable pull-out under mechanical stress. When used with the correct NPT-sized O-ring, this grip achieves a NEMA 6P rating, making it suitable for wet and hazardous locations. Its rugged design is ideal for use in enclosures, cabinets, and control panels where cable integrity is critical. The MAX-LOC® series is trusted by engineers for its reliability in reducing maintenance costs and enhancing system longevity in harsh industrial settings.
  • 1" NPT straight male thread for secure enclosure mounting
  • Accommodates cable diameters 14.27-17.45mm (0.562-0.687")
  • Rubber grommet provides liquid-tight seal and chemical resistance
  • Zinc-plated steel compression nut prevents cable pull-out
  • NEMA 6P rated when used with correct NPT-sized O-ring

Specifications

_Body Style
Straight
Brand Name
Woodhead
Color
Colorless
Connection Type
Straight Male
Material
Nylon
Material
Poly
Series
MAX-LOC®
Size
1" NPT, Cable Diameter 14.27-17.45mm (.562-.687")
Sub Brand
MAX-LOC
Type
Strain Relief
Package Weight (Imperial)
1.125 L
Package Weight (Metric)
0.510 kg
Deluxe Cord Grips Strain Relief, 3/4" NPT, Grip Body Size F3, Straight Male, Cable Diameter 12.70-15.88mm (.500-.625")

36261

Deluxe Cord Grips Strain Relief, 3/4" NPT, Grip Body Size F3, Straight Male, Cable Diameter 12.70-15.88mm (.500-.625")
Deluxe Cord Grips Strain Relief, 2" NPT, Straight Male, Cable Diameter 49.20-52.37mm (1.937-2.062")

36816

Deluxe Cord Grips Strain Relief, 2" NPT, Straight Male, Cable Diameter 49.20-52.37mm (1.937-2.062")
MAX-LOC® Strain Relief Cord-Sealing Grip, 3/4" NPT, Straight Male, Cable Diameter 17.45-20.62mm (.687-.812")

5544

MAX-LOC® Strain Relief Cord-Sealing Grip, 3/4" NPT, Straight Male, Cable Diameter 17.45-20.62mm (.687-.812")

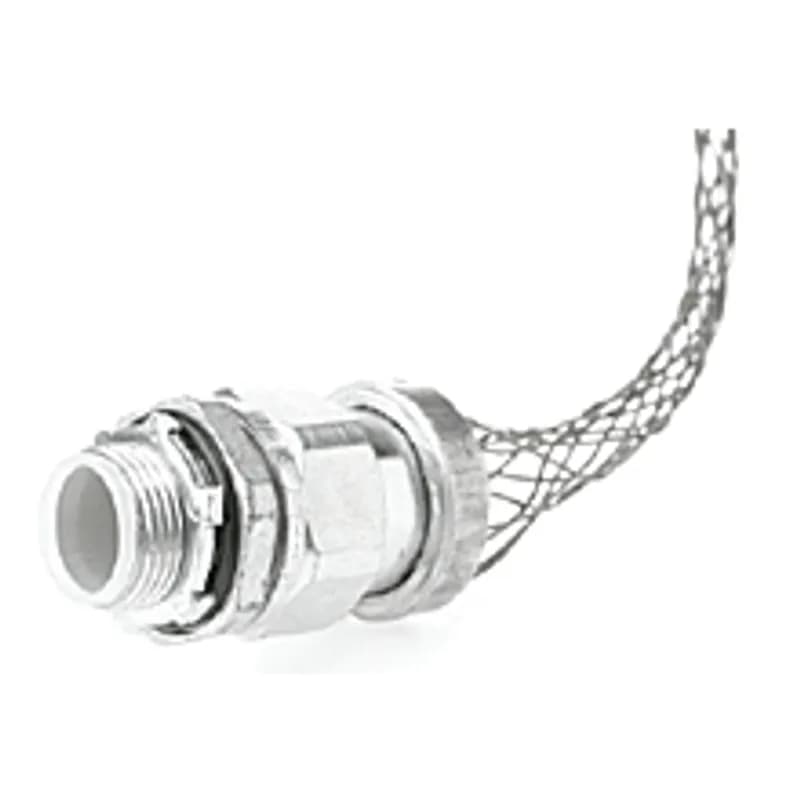

Liquid-Tight Grip Strain Relief for Non-Metallic Type A Flexible Conduit, 3/4" NPT, Straight Male, Mesh Length 0.254m (10.00")
