Woodhead 5539 - MAX-LOC® Strain Relief Cord-Sealing Grip, 3/4" NPT, 90° Angle Male, Cable Diameter 12.70-15.88mm (.500-.625")
Woodhead

5539

Alternate Item Number: 1300980109

UPC: 786788721640

Documents & Media
Specification Sheet

Contact for Pricing

Minimum Qty: 10

Multiplier: 1

*Contact for lower quantities*

Overview

The Woodhead MAX-LOC® Strain Relief Cord-Sealing Grip, SKU 5539, is engineered for secure and reliable cable entry in industrial enclosures. This 90° angle male grip features a 3/4" NPT threaded connection, designed for seamless integration into junction boxes, cabinets, and control panels. It accommodates cable diameters ranging from 12.70mm to 15.88mm (0.500" to 0.625"). The MAX-LOC® series is constructed with a durable nylon body, offering excellent resistance to impact and corrosion. The integrated rubber grommet provides a liquid-tight seal, meeting NEMA 6P ratings when used with the appropriate O-ring and locknut, effectively preventing the ingress of moisture, dust, and contaminants. This ensures the integrity of electrical connections in challenging environments. Key features include: * **Rugged Construction:** Suitable for general use enclosures, including boxes and cabinets. * **Material Durability:** Nylon body resists impact and corrosion. Rubber grommet handles a wide temperature range and resists chemicals. * **Liquid-Tight Seal:** Rubber grommet ensures a tight seal, rated NEMA 6P with O-ring/locknut. * **Strain Relief:** Reduces cord pull-out, protecting cable connections from mechanical stress. * **Color-Coded Grommets:** Facilitates easy identification (though this specific model's grommet color is not specified in the provided snippet, it's a general MAX-LOC feature). This strain relief grip is UL File No. E76954 and CSA File No. LR32159 listed. The physical components include a nylon cord grip body and compression nut, a rubber grommet, a neoprene O-ring (if used), and a zinc-plated steel nut. The weave type is half double weave, half single weave mesh, though this specific model is a cord seal without mesh, focusing on sealing capabilities. The Woodhead MAX-LOC® 5539 is an essential component for maintaining safe and reliable electrical systems in manufacturing, automation, and other industrial settings where robust cable management is critical.
  • 90° Angle Male connection with 3/4" NPT thread
  • Accommodates cable diameters from 12.70mm to 15.88mm (0.500" to 0.625")
  • Nylon body provides impact and corrosion resistance
  • Rubber grommet ensures a liquid-tight seal (NEMA 6P when used with O-ring/locknut)
  • UL File No. E76954 and CSA File No. LR32159 listed

Specifications

_Body Style
90° Angle
Brand Name
Woodhead
Color
Colorless
Connection Type
90° Angle Male
Material
Nylon
Material
Nylon/Polyamide
Mounting Type
Threaded (NPT)
Series
MAX-LOC®
Size
3/4" NPT, Cable Diameter 12.70-15.88mm (.500-.625")
Size
12.70-15.88mm (.500-.625")
Sub Brand
MAX-LOC
Type
Strain Relief
Package Weight (Imperial)
1.125 L
Package Weight (Metric)
0.510 kg
MAX-LOC® Strain Relief Cord-Sealing Grip, 1/2" NPT, 90° Angle Male, Cable Diameter 14.27-15.88mm (.562-.625")

5535

MAX-LOC® Strain Relief Cord-Sealing Grip, 1/2" NPT, 90° Angle Male, Cable Diameter 14.27-15.88mm (.562-.625")
MAX-LOC® Strain Relief Cord-Sealing Grip, 3/4" NPT, 90° Angle Male, Cable Diameter 15.88-19.05mm (.625-.750")

5543

MAX-LOC® Strain Relief Cord-Sealing Grip, 3/4" NPT, 90° Angle Male, Cable Diameter 15.88-19.05mm (.625-.750")
MAX-LOC® Strain Relief Cord-Sealing Grip, 1" NPT, 90° Angle Male with O-Ring, Cable Diameter 19.05-22.23mm (.750-.875")

5557W

MAX-LOC® Strain Relief Cord-Sealing Grip, 1" NPT, 90° Angle Male with O-Ring, Cable Diameter 19.05-22.23mm (.750-.875")
MAX-LOC® Strain Relief Cord-Sealing Grip, 1" NPT, 90° Angle Male, Cable Diameter 17.45-20.62mm (.687-.812")

5555

MAX-LOC® Strain Relief Cord-Sealing Grip, 1" NPT, 90° Angle Male, Cable Diameter 17.45-20.62mm (.687-.812")

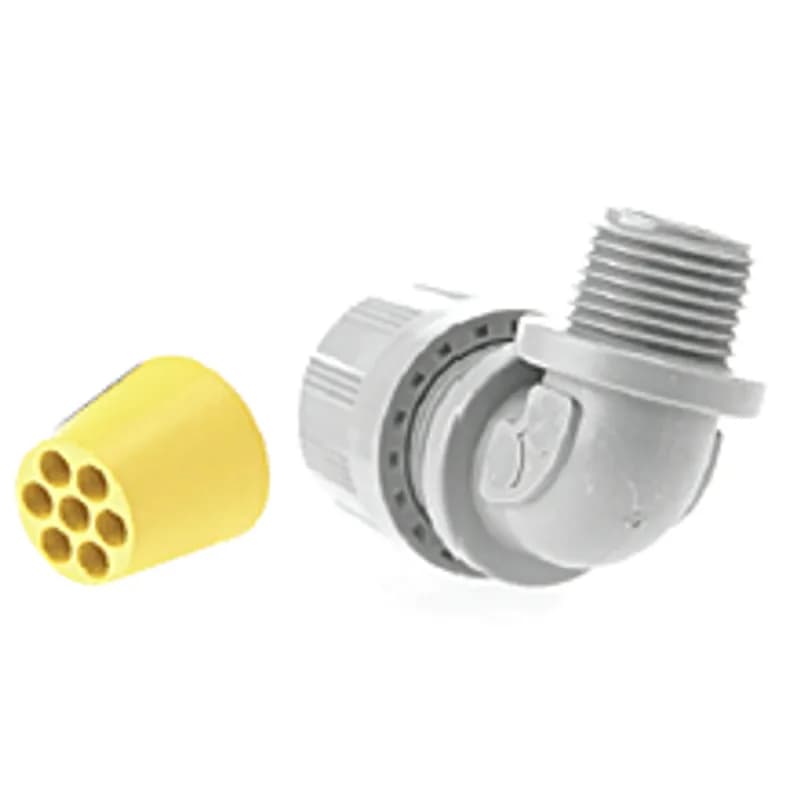

MAX-LOC® Multi-Hole Strain Relief, 1/2" NPT, 90° Angle Male, Cable Diameter 3.96mm (.156"), with O-Ring
