Woodhead 4748 - Safeway® Single Receptacle, Heavy Duty Spec Grade, 2 Pole/3 Wire, NEMA L6-20, 250V
Woodhead

4748

Alternate Item Number: 1301490068

UPC: 786788747480

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The Woodhead Safeway® Single Receptacle (SKU: 4748) is a heavy-duty, spec-grade electrical receptacle designed for demanding industrial and commercial applications. It meets NEMA L6-20 standards, offering a 250V rating and a 2-pole/3-wire configuration for reliable power distribution. Built for harsh settings like manufacturing plants and construction sites, this receptacle features a durable nylon housing resistant to impact, corrosion, and extreme temperatures (-40°C to 75°C). Nickel-plated brass contacts ensure superior conductivity, while stainless steel face screws and a brass wire saddle clamp enhance durability and ease of installation. With a maximum continuous operating temperature of 75°C and a 30°C temperature rise at full rated current, it handles sustained loads effectively. Certified by UL File No. E46237 and CSA File No. LR6837, it ensures compliance with stringent safety standards. Typical applications include powering industrial machinery like CNC machines and welders, as well as heavy-duty commercial equipment in server rooms and laboratories. The NEMA L6-20 configuration is ideal for 240V single-phase applications. Its field-attachable design allows for straightforward installation, compatible with Safeway and Super-Safeway plugs and connectors for flexible integration and reduced downtime.
  • NEMA L6-20 configuration for 20A, 250V, 2-Pole/3-Wire applications
  • Durable nylon housing for impact and corrosion resistance
  • Nickel-plated brass contacts for superior conductivity and reliability
  • Operates in extreme temperatures from -40°C to 75°C
  • UL File No. E46237 and CSA File No. LR6837 certified for safety and performance
  • Stainless steel face screws and brass wire saddle clamp for enhanced durability
  • Ideal for industrial machinery, commercial facilities, and high-power equipment
  • Field-attachable design for easy installation and retrofitting

Specifications

Amperage Rating
20 A
Brand Name
Woodhead
Environmental Conditions
None
Material
Nylon
Nema Rating
NEMA L6-20
Number Of Poles
2-pole/3-wire
Number of Poles
2
Poles
2P+G
Series
Safeway
Sub Brand
Safeway
Type
Receptacle
Voltage Rating
250 V
Package Weight (Imperial)
1.375 L
Package Weight (Metric)
0.624 kg

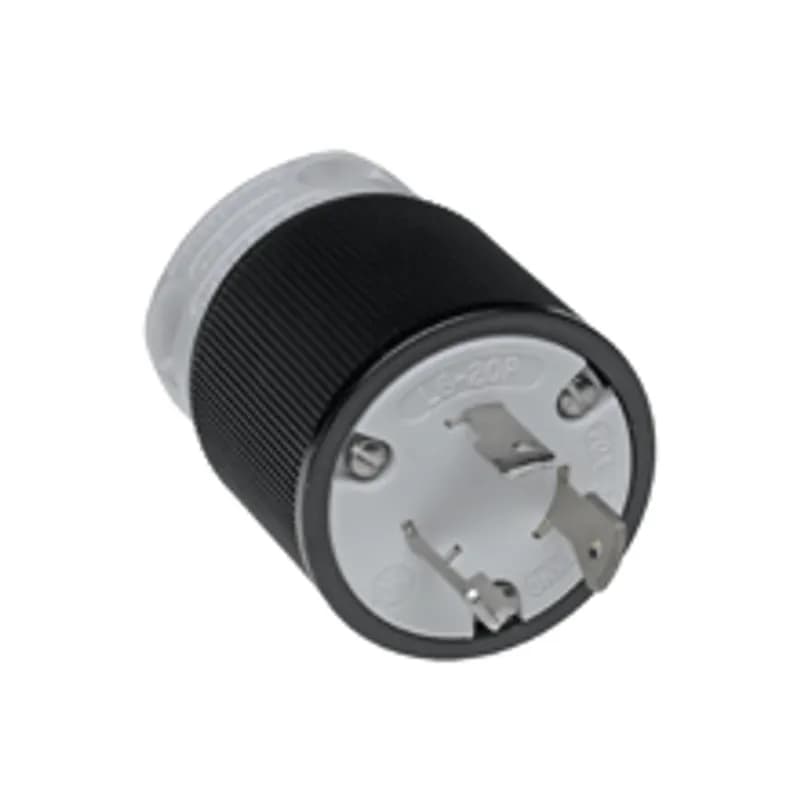

Safeway® Plug with Locking Blade, 2 Pole/3 Wire, NEMA L6-20, 250V
