Woodhead 320P4 - 20 Amp Safeway® Pin & Sleeve Plug, 2 Pole/3 Wire, 125V, Yellow
Woodhead

320P4

Alternate Item Number: 1301500049

UPC: 786788612443

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The Woodhead 320P4 is a 20 Amp, 2-pole/3-wire (2P+G) Safeway Pin & Sleeve Plug rated for 125V applications. Designed for industrial and commercial environments, this yellow-coded plug ensures safe, reliable power distribution with a durable nylon housing and nickel-plated brass contacts for corrosion resistance. The plug features a self-adjusting split contact sleeve with a nickel-plated steel spring to maintain constant pressure and electrical continuity, even under heavy load. A latching mechanism prevents accidental disengagement, while the keyway design enables fast, accurate alignment during connection. The internal strain relief includes a "swing away" feature, and the external strain relief reduces cable bending stress. The 320P4 supports a wide range of cable sizes (.335" to .640" diameter) via an onion ring neoprene bushing, accommodating flexible installation requirements. With an IP44 rating and compliance to IEC 309-1 and 309-2 standards, this plug is ideal for temporary power systems, portable processing equipment, and machinery intended for export or use with foreign-built systems. Trusted for its robust construction and long-lasting performance, the 320P4 meets UL File No. E38085 and CSA File No. LR6837, ensuring safety and reliability in demanding conditions.
  • 20 Amp, 2-pole/3-wire (2P+G) configuration for 125V applications
  • Nickel-plated brass contacts with self-adjusting split sleeves for reliable electrical continuity
  • Latching mechanism prevents accidental disengagement; keyway ensures fast, accurate alignment
  • IP44 rated for splash resistance; supports cable diameters from .335" to .640"
  • Compliant with IEC 309-1 and 309-2 standards; UL File No. E38085 and CSA File No. LR6837 certified

Specifications

Amperage Rating
20 A
Brand Name
Woodhead
Color
Yellow
Connection Type
Pin & Sleeve
Current Rating
20 A
Environmental Conditions
IP44
Material
Safeway®
Number Of Poles
2-pole/3-wire
Number of Poles
2
Poles
2P+G
Series
Safeway
Series
Safeway®
Special Features
IEC Configuration 309-1/309-2
Sub Brand
Safeway
Type
Plug
Voltage Rating
125 V
Package Weight (Imperial)
1.375 L
Package Weight (Metric)
0.624 kg
Safeway® Plug, 2 Pole/3 Wire, NEMA L5-20, 125V, Yellow

26T47YL

Safeway® Plug, 2 Pole/3 Wire, NEMA L5-20, 125V, Yellow
20 Amp Watertite® Pin & Sleeve Plug, 2 Pole/3 Wire, 125V, Yellow

320P4W

20 Amp Watertite® Pin & Sleeve Plug, 2 Pole/3 Wire, 125V, Yellow
20 Amp Watertite® Pin & Sleeve Connector with Flip Lid, 2 Pole/3 Wire, 125V, Yellow

320C4W

20 Amp Watertite® Pin & Sleeve Connector with Flip Lid, 2 Pole/3 Wire, 125V, Yellow
Super-Safeway® Ground Fault Monitoring Connector 2 Pole/3 Wire, NEMA 5-20, 125V

1533GCM

Super-Safeway® Ground Fault Monitoring Connector 2 Pole/3 Wire, NEMA 5-20, 125V
Safeway® Plug, 2 Pole/3 Wire, NEMA 5-20, 125V, Yellow

5366YL

Safeway® Plug, 2 Pole/3 Wire, NEMA 5-20, 125V, Yellow
20 Amp Safeway® Pin & Sleeve Receptacle with Flip Lid, 2 Pole/3 Wire, 125V, Yellow

320R4

20 Amp Safeway® Pin & Sleeve Receptacle with Flip Lid, 2 Pole/3 Wire, 125V, Yellow
Safeway® Right Angle Plug, NEMA 5-20, 125V, Yellow

14R33

Safeway® Right Angle Plug, NEMA 5-20, 125V, Yellow
20 Amp Watertite® Pin & Sleeve Mechanical Interlock, 2 Pole/3 Wire, 125V, Yellow

320MI4W

20 Amp Watertite® Pin & Sleeve Mechanical Interlock, 2 Pole/3 Wire, 125V, Yellow
Safeway® Individually Fused Plug, 2 Pole/3 Wire, NEMA 5-15, 125V, Yellow

14F47

Safeway® Individually Fused Plug, 2 Pole/3 Wire, NEMA 5-15, 125V, Yellow
Safeway® Connector 2 Pole/3 Wire, NEMA L5-15, 125V, Yellow

4729YL

Safeway® Connector 2 Pole/3 Wire, NEMA L5-15, 125V, Yellow
Safeway® Connector, 2 Pole/3 Wire, NEMA 5-15, 125V, Yellow

5269YL

Safeway® Connector, 2 Pole/3 Wire, NEMA 5-15, 125V, Yellow

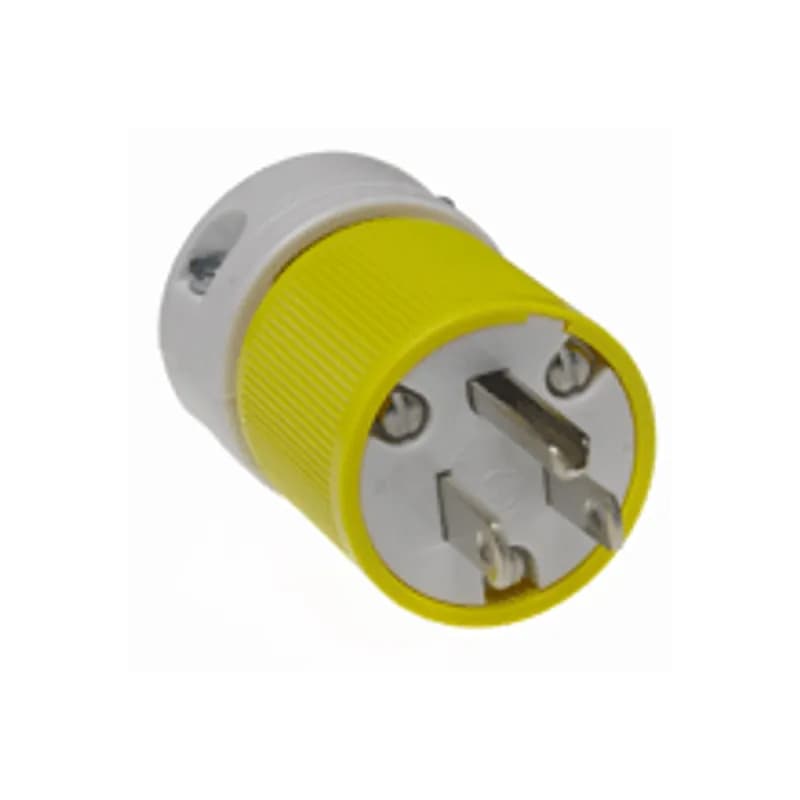

Safeway® Plug, 2 Pole/3 Wire, NEMA 5-15, 125V, Yellow
