Woodhead 29W75MB - Watertite® Connector for Male Receptacle with Locking Blade, Single Flip Coverplate, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V, F4
Woodhead

29W75MB

Alternate Item Number: 1301470107

UPC: 786788628383

Documents & Media
Technical DrawingSpecification Sheet

Contact for Pricing

Overview

The Woodhead Watertite® Connector (SKU: 29W75MB) is engineered for superior performance and reliability in demanding industrial environments, particularly in wet locations and harsh conditions. This connector is ideal for applications in the food and beverage, general-purpose industrial, and oil and gas sectors. Its NEMA L15-30 configuration ensures compatibility with standard industrial power systems, offering a 3-pole, 4-wire setup capable of handling 250V. The integrated locking blade mechanism provides a secure and dependable connection, preventing accidental disconnections and ensuring operational continuity, critical for heavy-duty machinery and power distribution. Constructed with Woodhead's Watertite® technology, this connector offers exceptional protection against moisture, dust, and corrosive elements, meeting stringent industry standards for wet location use. The single flip coverplate design facilitates easy access for connection and disconnection while maintaining a watertight seal when closed, safeguarding internal components from environmental ingress and prolonging equipment lifespan. Key features include: NEMA L15-30 Configuration for 3-phase power, 250V, and 30A applications; 3-Pole, 4-Wire Design for complex power distribution needs, including grounding; Locking Blade Mechanism for secure connections, minimizing downtime and safety risks; Watertite® Technology for superior protection against water, dust, and corrosive agents; Single Flip Coverplate for convenient access and robust protection; and Durable Construction built to withstand industrial rigors for long-term reliability. This connector is essential for professionals seeking dependable power solutions for critical infrastructure, manufacturing plants, and processing facilities where environmental resistance and secure electrical connections are paramount. Trust Woodhead's legacy of quality and innovation to power your operations safely and efficiently.
  • NEMA L15-30 Configuration: 3-phase, 250V, 30A compatibility.
  • 3-Pole, 4-Wire Design: Supports complex power distribution and grounding.
  • Locking Blade Mechanism: Ensures secure, reliable connections.
  • Watertite® Technology: Superior protection against moisture and dust.
  • Single Flip Coverplate: Easy access with a secure watertight seal.

Specifications

Amperage Rating
30 A
Brand Name
Woodhead
Environmental Conditions
IP67
Nema Rating
NEMA L15-30
Number Of Poles
3-pole/4-wire
Number of Poles
3
Poles
3P+G
Series
Watertite
Sub Brand
Watertite
Type
Connector
Voltage Rating
250 V
Voltage Rating
3Ø 250V
Package Weight (Imperial)
1.400 L
Package Weight (Metric)
0.635 kg
Watertite® Plug with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V, Cord Grip Body Size F4

28W75

Watertite® Plug with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V, Cord Grip Body Size F4
Watertite® Connector with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V, Cord Grip Body Size F4

29W75

Watertite® Connector with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V, Cord Grip Body Size F4

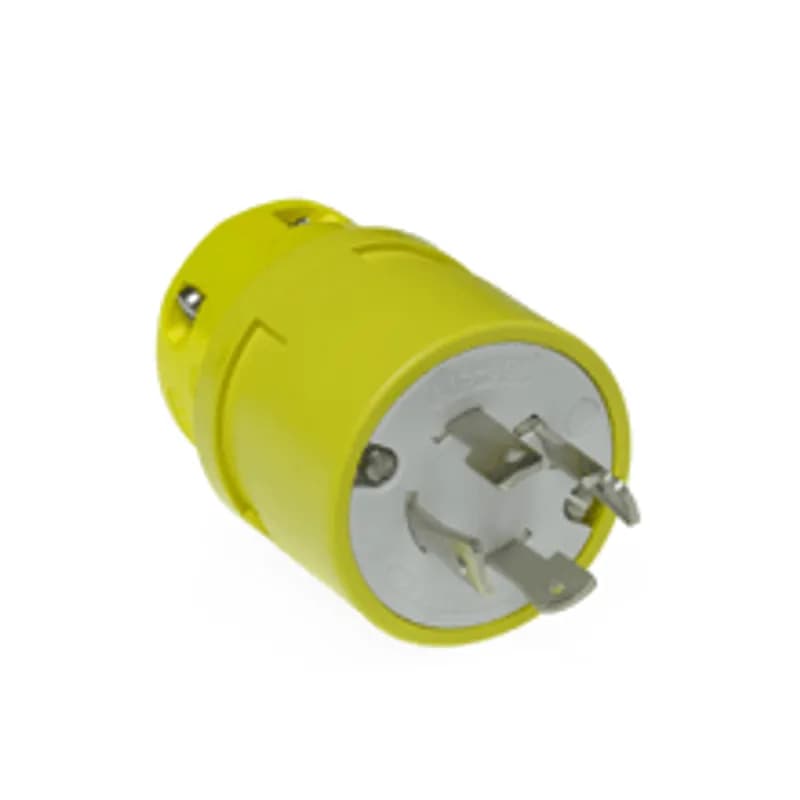

Super-Safeway® Plug with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V

2875

Super-Safeway® Plug with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V

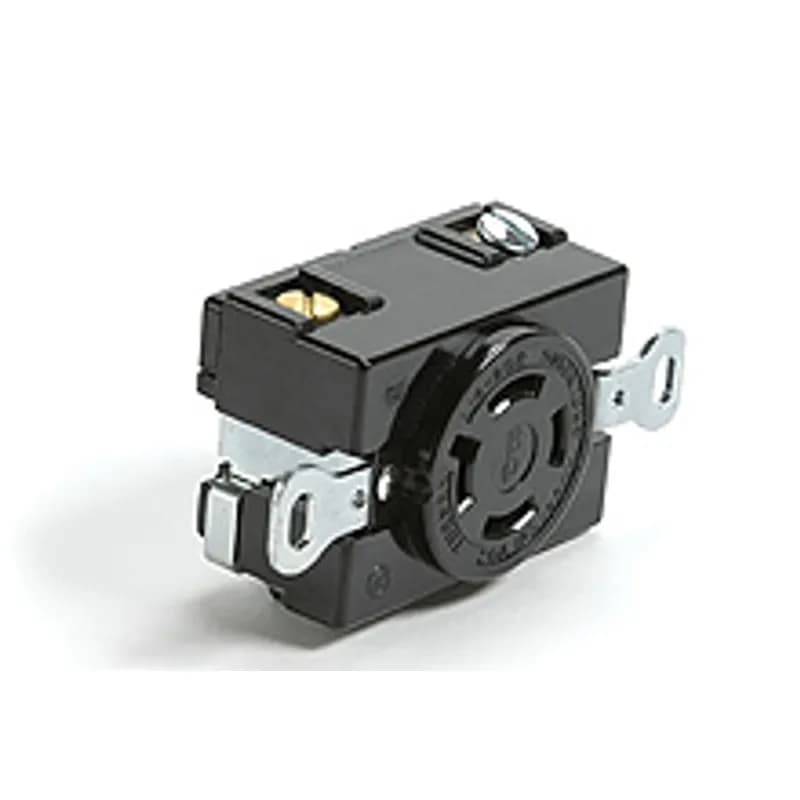

Safeway® Single Corrosion Resistant Receptacle with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V

4975CR

Safeway® Single Corrosion Resistant Receptacle with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V
Super-Safeway® Connector with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V

2975

Super-Safeway® Connector with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V
Safeway® Connector with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V

29T75

Safeway® Connector with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V
Watertite® Cordset, 10 Gauge SOOW, 3 Pole/4 Wire, Cordset, Length 7.62m (25.0' ), NEMA L15-30, 3ø 250V

28W75A104

Watertite® Cordset, 10 Gauge SOOW, 3 Pole/4 Wire, Cordset, Length 7.62m (25.0' ), NEMA L15-30, 3ø 250V
Watertite® Extra Hard Outdoor Connector with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V, Cord Grip Body Size F4, Black

29W75BLK

Watertite® Extra Hard Outdoor Connector with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V, Cord Grip Body Size F4, Black
30 Amp Watertite® Pin & Sleeve Plug, 3 Pole/4 Wire, 3ø 250V, Blue

430P9W

30 Amp Watertite® Pin & Sleeve Plug, 3 Pole/4 Wire, 3ø 250V, Blue
Safeway® Plug with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V

28T75

Safeway® Plug with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V
30 Amp Watertite® Pin & Sleeve Receptacle with Flip Lid, 3 Pole/4 Wire, 3ø 250V, Blue

430R9W

30 Amp Watertite® Pin & Sleeve Receptacle with Flip Lid, 3 Pole/4 Wire, 3ø 250V, Blue
Watertite® Extra Hard Outdoor Plug with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V, Cord Grip Body Size F4, Black

28W75BLK

Watertite® Extra Hard Outdoor Plug with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V, Cord Grip Body Size F4, Black
