Contact for Pricing
Overview
- 3-Pole, 4-Wire, NEMA L15-30 configuration for 3-phase, 250V power
- Watertite® Extreme rating for superior moisture, dust, and contaminant protection (NEMA 1, 3, 4, 4X, 5, 6, 6P, 12; IEC IP55-67)
- Locking blade mechanism ensures secure, non-disengaging connections
- F4 cord grip body size (1" diameter) provides robust strain relief
- Durable construction: NEo-TEX® Paracril OZO rubber housing, nickel-plated brass contacts, stainless steel screws
Specifications
Amperage Rating | 30 A |
Brand Name | Woodhead |
Environmental Conditions | IP67 |
Ip Rating | IP66/IP67 |
Nema Rating | NEMA L15-30 |
Number Of Poles | 3-pole/4-wire |
Number of Poles | 3 |
Poles | 3P/4W |
Series | Watertite Extreme |
Size | F4 |
Sub Brand | Watertite |
Type | Connector |
Voltage Rating | 250 V |
Voltage Rating | 3Ø 250V |
Package Weight (Imperial) | 1.000 L |
Package Weight (Metric) | 0.454 kg |
29W75BLK
Watertite® Extra Hard Outdoor Connector with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V, Cord Grip Body Size F4, Black
29W74
Watertite® Connector with Locking Blade, 3 Pole/4 Wire, NEMA L14-30, 125V/250V, Cord Grip Body Size F426W75BLK
Watertite® Extra Hard Outdoor Plug With Locking Blade, 3 Pole/4 Wire, NEMA L15-20, 3ø 250V, Cord Grip Body Size F3, Black

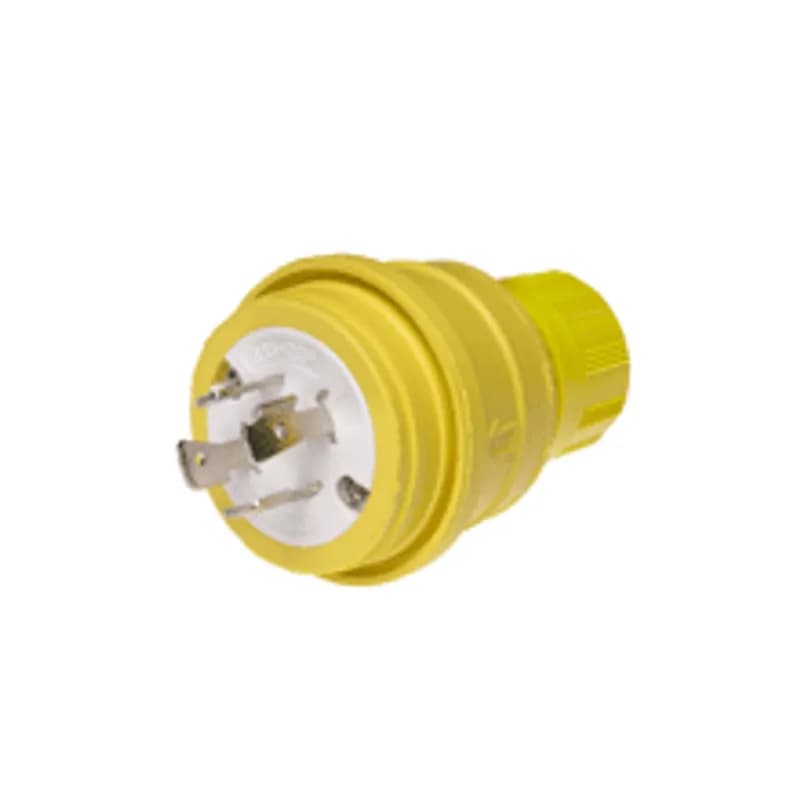

26W75
Watertite® Plug with Locking Blade, 3 Pole/4 Wire, NEMA L15-20, 3ø 250V, Cord Grip Body Size F3
27W75
Watertite® Connector with Locking Blade, 3 Pole/4 Wire, NEMA L15-20, 3ø 250V, Cord Grip Body Size F3
27W74
Watertite® Connector with Locking Blade, 3 Pole/4 Wire, NEMA L14-20, 250V, Cord Grip Body Size F3
29W76
Watertite® Connector with Locking Blade, 3 Pole/4 Wire, NEMA L16-30, 3ø 480V, Cord Grip Body Size F4
28W75
Watertite® Plug with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V, Cord Grip Body Size F4
29W75MB
Watertite® Connector for Male Receptacle with Locking Blade, Single Flip Coverplate, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V, F4
4975CR
Safeway® Single Corrosion Resistant Receptacle with Locking Blade, 3 Pole/4 Wire, NEMA L15-30, 3ø 250V
