Woodhead 28T09 - Safeway® Plug with Locking Blade, 4 Pole/4 Wire, Non-NEMA, 208V
Woodhead

28T09

Alternate Item Number: 1301450046

UPC: 786788796198

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The Woodhead Safeway® Plug with Locking Blade, SKU 28T09, provides robust and reliable power connections for industrial applications. This 4-pole, 4-wire configuration is designed for non-NEMA applications, offering flexibility for specialized power distribution needs. Rated for 208V, this industrial-grade plug ensures consistent power delivery for critical machinery. Constructed with NEo-TEX® Paracril OZO rubber for superior abrasion and chemical resistance, and a Nylon face for durability. The plug features nickel-plated brass contacts for optimal electrical conductivity. Its locking blade mechanism ensures a secure connection, preventing accidental disconnections, which is crucial in environments with vibration or movement. The tri-drive wire screw terminals accommodate straight blade, Phillips, and square-drive screwdrivers for easy wiring. Floating blade construction provides self-alignment for improved mechanical and electrical connections, minimizing wear and heat generation. A transparent wiring guide aids in verifying wire placement before securing. The captive, stainless steel speed screw ensures long life and easy assembly. A two-piece cord-clamp strain relief with tri-drive screws firmly secures the cord. Operating temperature range is -40°C to 75°C continuous.
  • 4-Pole/4-Wire, Non-NEMA Locking Blade Configuration
  • 208V Voltage Rating for Industrial Power
  • Durable NEo-TEX® Paracril OZO rubber body for abrasion and chemical resistance
  • Nickel-plated brass contacts for reliable electrical connection
  • Tri-drive terminals and captive stainless steel speed screw for easy assembly

Specifications

Amperage Rating
30 A
Brand Name
Woodhead
Environmental Conditions
None
Number Of Poles
4-pole/4-wire
Number of Poles
4
Sub Brand
Safeway
Type
Plug
Voltage Rating
208V
Package Weight (Imperial)
1.312 L
Package Weight (Metric)
0.595 kg
Safeway® Connector with Locking Blade, 4 Pole/5 Wire, NEMA L21-30, 3ø 208V

29T81

Safeway® Connector with Locking Blade, 4 Pole/5 Wire, NEMA L21-30, 3ø 208V
Safeway® Connector with Locking Blade, 4Pole/4 Wire, Non-NEMA, 208V

29T09

Safeway® Connector with Locking Blade, 4Pole/4 Wire, Non-NEMA, 208V

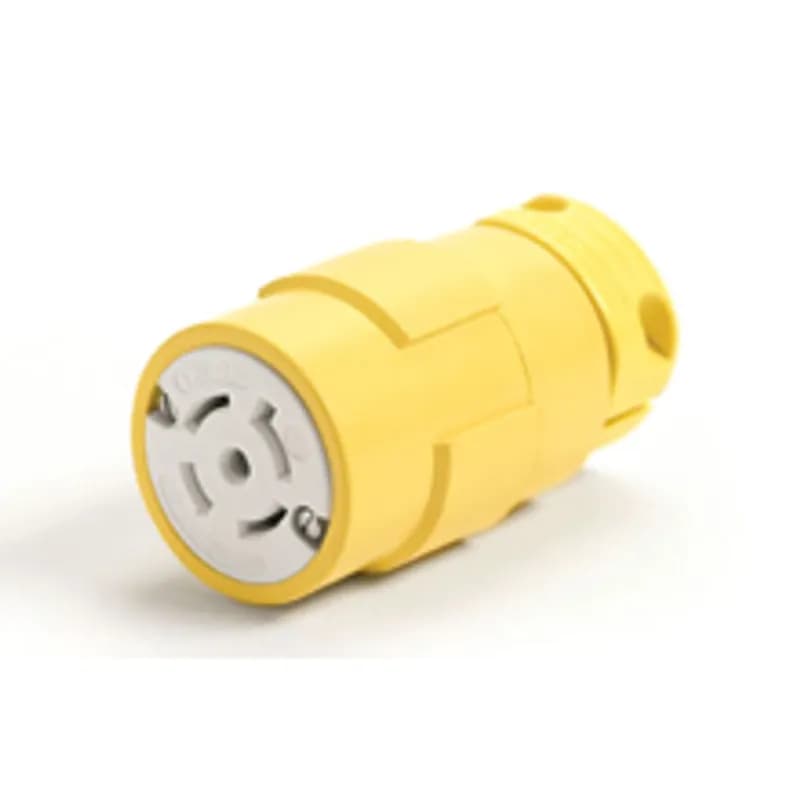

Super-Safeway® Connector with Locking Blade, 4 Pole/5 Wire, NEMA L21-30, 3ø 208V

2981

Super-Safeway® Connector with Locking Blade, 4 Pole/5 Wire, NEMA L21-30, 3ø 208V
Super-Safeway® Connector with Locking Blade, 4 Pole/4 Wire, Non-NEMA, 208V

2909

Super-Safeway® Connector with Locking Blade, 4 Pole/4 Wire, Non-NEMA, 208V
Super-Safeway® Plug with Locking Blade, 4 Pole/4 Wire, Non-NEMA, 208V

2809

Super-Safeway® Plug with Locking Blade, 4 Pole/4 Wire, Non-NEMA, 208V

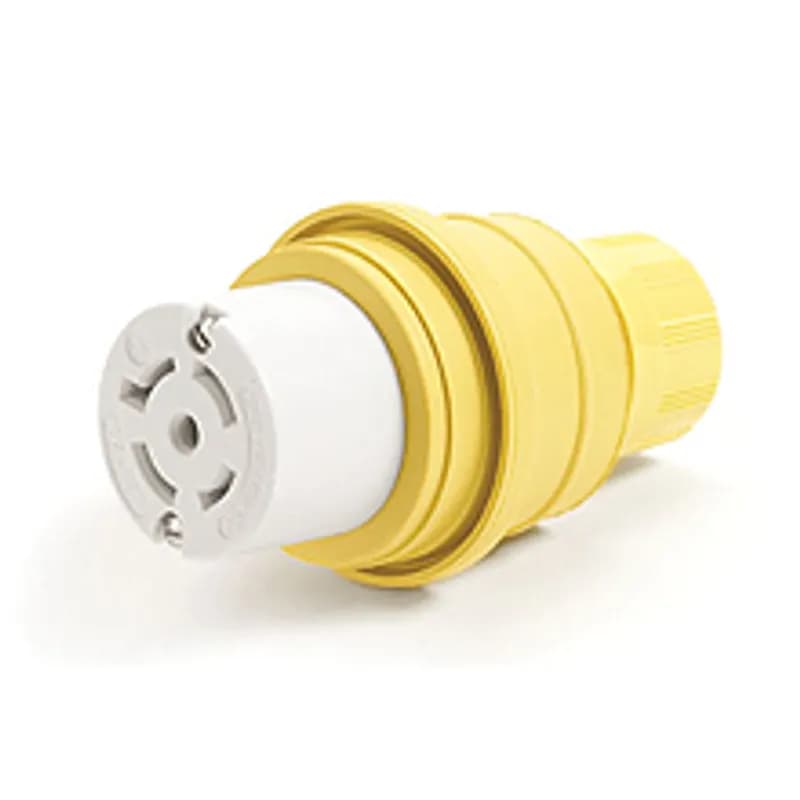

Watertite® Connector for Male Receptacle with Locking Blade, Single Flip Coverplate, 4 Pole/5 Wire, Neman L21-30, 3ø 208V, F4

29W81MB

Watertite® Connector for Male Receptacle with Locking Blade, Single Flip Coverplate, 4 Pole/5 Wire, Neman L21-30, 3ø 208V, F4
30 Amp Safeway® Pin & Sleeve Receptacle with Flip Lid, 4 Pole/5 Wire, 3ø 208V, Blue

530R9

30 Amp Safeway® Pin & Sleeve Receptacle with Flip Lid, 4 Pole/5 Wire, 3ø 208V, Blue
30 Amp Watertite® Pin & Sleeve Receptacle with Flip Lid, 4 Pole/5 Wire, 3øY 208V, Blue

530R9W

30 Amp Watertite® Pin & Sleeve Receptacle with Flip Lid, 4 Pole/5 Wire, 3øY 208V, Blue

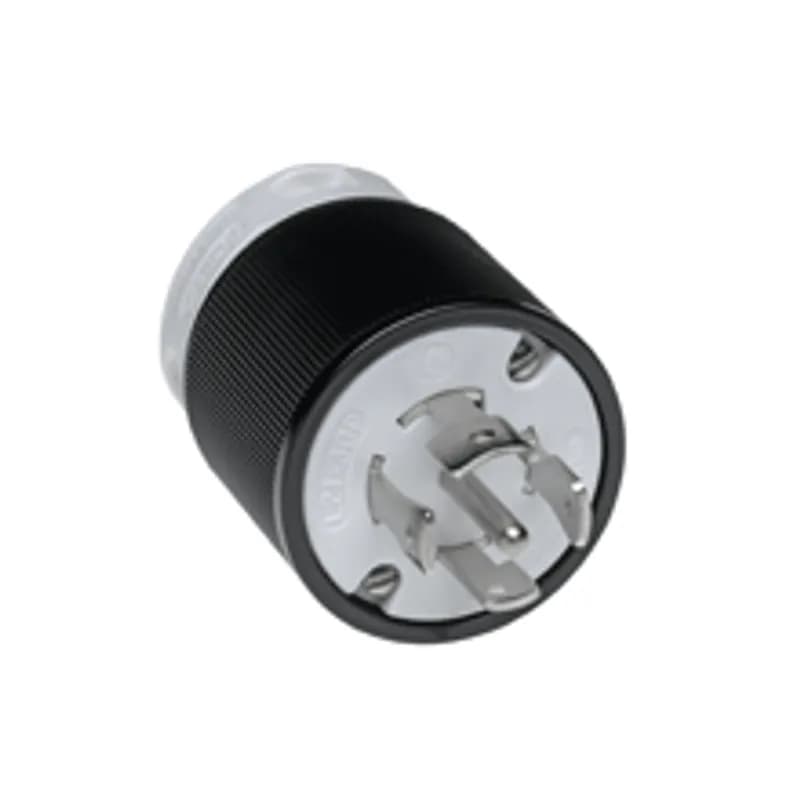

Safeway® Plug with Locking Blade, 4 Pole/5 Wire, NEMA L21-30, 3ø 208V

28T81

Safeway® Plug with Locking Blade, 4 Pole/5 Wire, NEMA L21-30, 3ø 208V
30 Amp Safeway® Pin & Sleeve Plug, 4 Pole/5 Wire, 3øY 208V, Blue

530P9

30 Amp Safeway® Pin & Sleeve Plug, 4 Pole/5 Wire, 3øY 208V, Blue

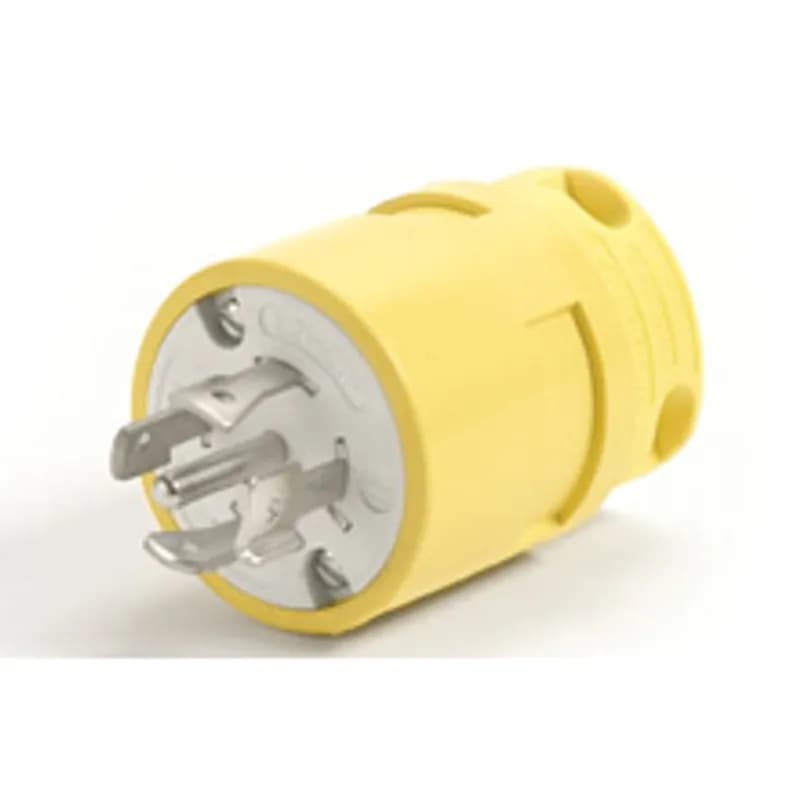

Super-Safeway® Plug with Locking Blade, 4 Pole/5 Wire, NEMA L21-30, 3ø 208V

2881

Super-Safeway® Plug with Locking Blade, 4 Pole/5 Wire, NEMA L21-30, 3ø 208V

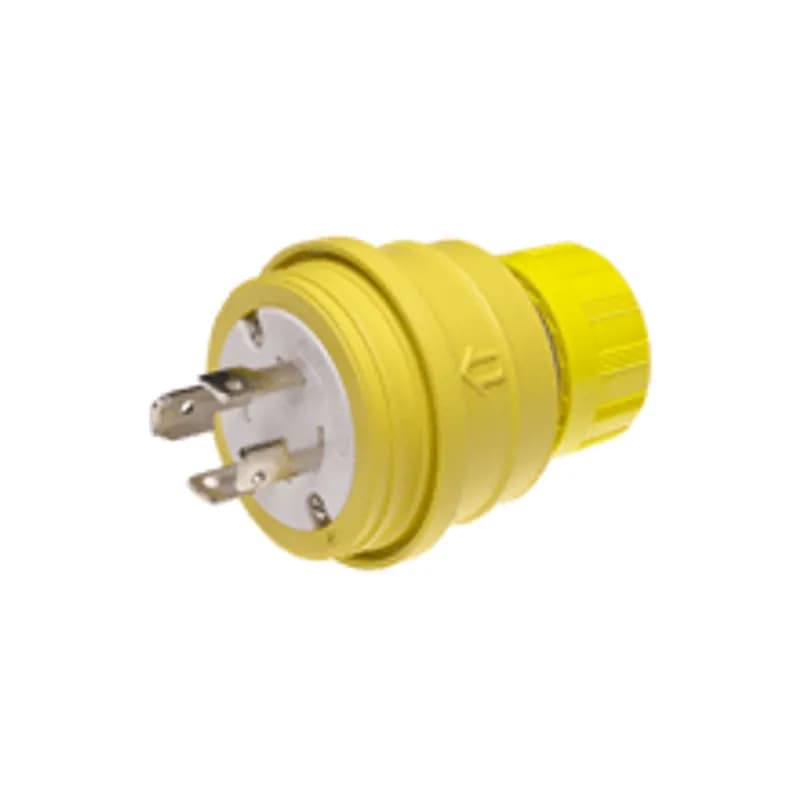

Watertite® Plug with Locking Blade, 4 Pole/4 Wire, Non-NEMA, 250V, Cord Grip Body Size F4
