Woodhead 27T10 - Safeway® Connector with Locking Blade, 4 Pole/5 Wire, Non-NEMA, 600V Grounding Tab, Cord Grip Body Size F4
Woodhead

27T10

Alternate Item Number: 1301450029

UPC: 786788706685

Documents & Media
Technical DrawingSpecification Sheet

Contact for Pricing

Overview

The Woodhead Safeway® Connector with Locking Blade, SKU 27T10, is engineered for robust and reliable electrical connections in industrial settings. This 4-pole, 5-wire configuration supports a maximum continuous operating voltage of 600V, making it suitable for a broad spectrum of power distribution and machinery applications. Its Non-NEMA rating ensures compatibility across various international standards, while the F4 cord grip body size accommodates cable diameters from .425" to 1.150", providing a secure and durable connection. The locking blade mechanism enhances safety by preventing accidental disconnections, a critical feature in high-vibration or dynamic environments. Constructed with a NEo-TEX® Paracril OZO rubber outer housing and grommet, this connector offers superior resistance to abrasion, chemical exposure, and extreme temperatures, operating effectively between -40°C and 75°C. Nickel-plated brass is used for plug blades and connector contacts, ensuring excellent conductivity and corrosion resistance. Face screws are stainless steel for longevity, and the wire saddle clamp is brass. The internal floating blade construction promotes self-alignment, leading to better mechanical and electrical connections and minimizing wear and heat generation. A transparent wiring guide facilitates proper wire placement before securing, and captive, tri-drive head stainless steel speed screws simplify assembly and ensure long service life. The three-piece strain relief design seals the cord without causing damage. This connector meets stringent environmental standards with IEC ratings up to IP67 and NEMA ratings up to NEMA 6P, making it suitable for wet locations and high-pressure washdowns. The grounding tab ensures essential safety grounding. UL File No. E10176, CSA File No. LR6837.
  • 4 Pole / 5 Wire Configuration
  • 600V Maximum Operating Voltage
  • Non-NEMA Rated for International Compatibility
  • F4 Cord Grip Body Size (fits .425" to 1.150" cable)
  • Locking Blade Mechanism for Secure Connection

Specifications

Amperage Rating
10 A
Brand Name
Woodhead
Environmental Conditions
None
Number Of Poles
4-pole/5-wire
Number of Poles
4
Sub Brand
Safeway
Type
Connector
Voltage Rating
600V
Package Weight (Imperial)
1.437 L
Package Weight (Metric)
0.652 kg
MC/MIC 4P M/MFE 1M ST/ST18/4AWG YEL. TPE

1300090457

MC/MIC 4P M/MFE 1M ST/ST18/4AWG YEL. TPE
Safeway® Plug with Locking Blade, 4 Pole/5 Wire, Non-NEMA, 600V Grounding Tab, Cord Grip Body Size F4

26T10

Safeway® Plug with Locking Blade, 4 Pole/5 Wire, Non-NEMA, 600V Grounding Tab, Cord Grip Body Size F4
Watertite® Connector with Locking Blade, 4 Pole/5 Wire, Non-NEMA, 600V Grounding Tab, Cord Grip Body Size F4

27W10

Watertite® Connector with Locking Blade, 4 Pole/5 Wire, Non-NEMA, 600V Grounding Tab, Cord Grip Body Size F4
Safeway® Connector with Locking Blade, 4 Pole/5 Wire, NEMA L23-20, 3ø 600V, Yellow

27T83YL

Safeway® Connector with Locking Blade, 4 Pole/5 Wire, NEMA L23-20, 3ø 600V, Yellow
Safeway® Plug with Locking Blade, 4 Pole/5 Wire, NEMA L23-20, 3ø 600V, Yellow

26T83YL

Safeway® Plug with Locking Blade, 4 Pole/5 Wire, NEMA L23-20, 3ø 600V, Yellow

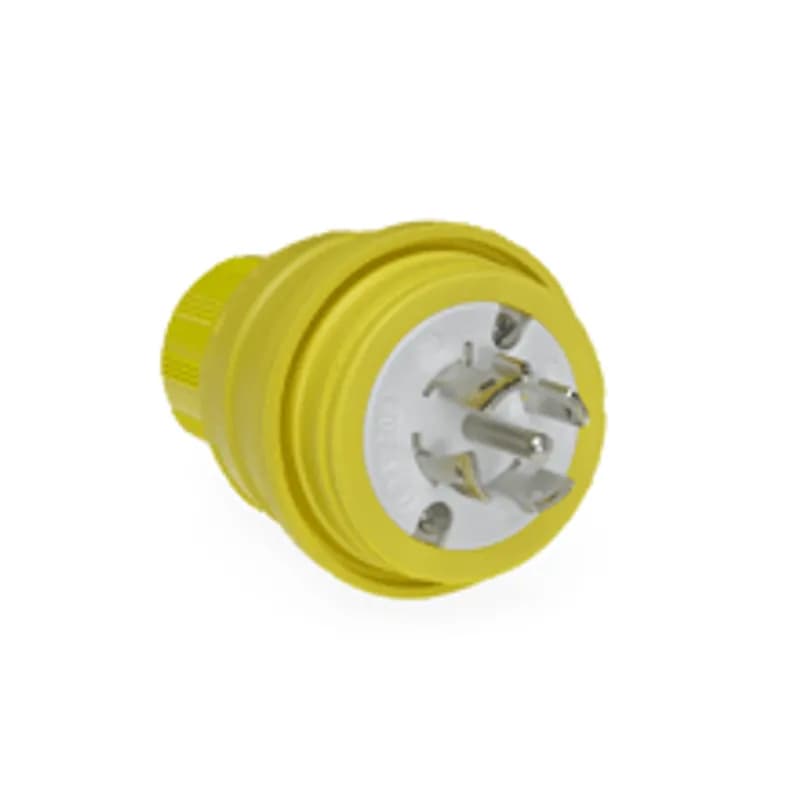

Watertite® Plug with Locking Blade, 4 Pole/5 Wire, NEMA L32-20, 3ø 600V, Cord Grip Body Size F3
