Woodhead 2748MB - Safeway® Flanged Receptacle with Locking Blade, 2 Pole/3 Wire, NEMA L6-20, 250V
Woodhead

2748MB

Alternate Item Number: 1301490040

UPC: 786788705107

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The Woodhead Safeway® Flanged Receptacle (SKU 2748MB) offers a secure and reliable power connection for industrial applications. This 2-pole, 3-wire receptacle is rated for 250V and conforms to the NEMA L6-20 standard, ensuring compatibility with locking blade plugs. Constructed with a durable nylon body, it is built to withstand demanding environments. The floating blade design promotes self-alignment, leading to improved mechanical and electrical connections while minimizing wear and heat generation. Wiring is simplified with color-coded ¼" terminal screws, pre-set in the open position, and a transparent wiring guide that confirms proper strand placement. For secure cord attachment, it features a two-piece cord-clamp strain relief with tri-drive screws. UL File No. E46237 and CSA File No. LR6837 certifications validate its adherence to safety standards. Ideal for heavy-duty machinery, control panels, and critical infrastructure requiring dependable power distribution.
  • NEMA L6-20 locking blade receptacle for secure connections
  • 2-pole, 3-wire configuration with 250V rating
  • Durable nylon body for industrial environments
  • Floating blade construction minimizes wear and heat
  • Color-coded terminal screws and transparent wiring guide for easy installation

Specifications

Amperage Rating
20 A
Brand Name
Woodhead
Environmental Conditions
None
Mounting Type
Flanged
Nema Rating
L6-20
Number Of Poles
2-pole/3-wire
Number of Poles
2
Poles
2P+G
Series
Safeway
Sub Brand
Safeway
Type
Receptacle
Voltage Rating
250 V
Package Weight (Imperial)
1.312 L
Package Weight (Metric)
0.595 kg
Safeway® Flanged Inlet with Locking Blade, 2 Pole/3 Wire, NEMA L6-30, 250V

2848MB

Safeway® Flanged Inlet with Locking Blade, 2 Pole/3 Wire, NEMA L6-30, 250V
Safeway® Flanged Inlet, 2 Pole/3 Wire, NEMA 5-20, 125V

1433MB

Safeway® Flanged Inlet, 2 Pole/3 Wire, NEMA 5-20, 125V
Safeway® Flanged Receptacle, 2 Pole/3 Wire, NEMA 5-20, 125V

1533MB

Safeway® Flanged Receptacle, 2 Pole/3 Wire, NEMA 5-20, 125V
Safeway® Flanged Inlet, 2 Pole/3 Wire, NEMA 5-15, 125V

1447MB

Safeway® Flanged Inlet, 2 Pole/3 Wire, NEMA 5-15, 125V
Safeway® Flanged Receptacle with Locking Blade, 2 Pole/3 Wire, NEMA L5-15, 125V

2547MB

Safeway® Flanged Receptacle with Locking Blade, 2 Pole/3 Wire, NEMA L5-15, 125V

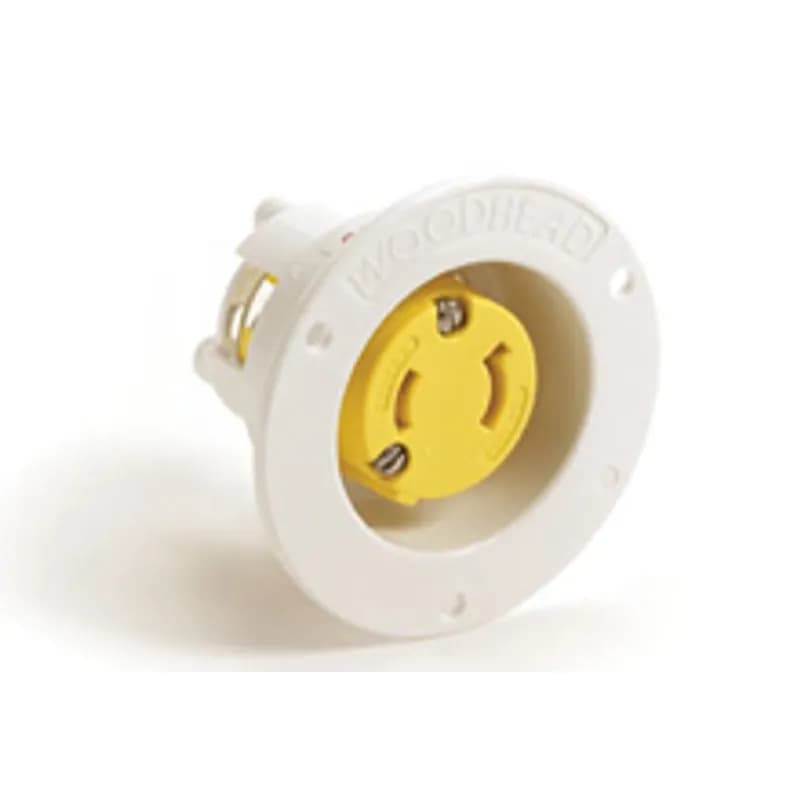

Safeway® Flanged Receptacle with Locking Blade, 2 Pole/2 Wire, NEMA L1-15, 125V
