Woodhead 2648 - Super-Safeway® Plug with Locking Blade, 2 Pole/3 Wire, NEMA L6-20, 250V
Woodhead

2648

Alternate Item Number: 1301410063

UPC: 786788704124

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The Woodhead Super-Safeway® Locking Plug (SKU 2648) is a robust electrical connector designed for secure and reliable power transfer in industrial settings. Featuring a NEMA L6-20 configuration and rated for 250V, this 2-pole, 3-wire plug ensures dependable energy delivery for high-power applications. Its NEo-TEX® Paracril OZO rubber housing offers superior resistance to abrasion, chemicals, and extreme temperatures, operating effectively between -40°C and 75°C. The locking blade mechanism prevents accidental disconnections, crucial for maintaining operational continuity and safety in environments with vibration or movement. Internal components include nickel-plated brass blades and contacts for excellent conductivity. Wiring is simplified with tri-drive screw terminals compatible with straight blade, Phillips, and square-drive screwdrivers, and a transparent wiring guide for verification. The floating blade construction ensures self-alignment for optimal mechanical and electrical connections, minimizing wear and heat generation. A captive, stainless steel speed screw facilitates easy assembly and longevity. The two-piece cord-clamp strain relief securely fastens the cord. This plug is ideal for manufacturing facilities, construction sites, industrial workshops, and critical infrastructure requiring uninterrupted power. UL File No. E10176, CSA File No. LR6837.
  • NEMA L6-20 configuration for secure locking connections
  • 250V rating for high-power industrial applications
  • 2-pole, 3-wire design with grounding for enhanced safety
  • NEo-TEX® Paracril OZO rubber housing resistant to abrasion, chemicals, and temperature extremes (-40°C to 75°C)
  • Tri-drive screw terminals and floating blade construction for easy wiring and reliable connections

Specifications

Amperage Rating
20 A
Brand Name
Woodhead
Environmental Conditions
None
Number Of Poles
2-pole/3-wire
Number of Poles
2
Sub Brand
Super-Safeway
Type
Plug
Voltage Rating
250V
Package Weight (Imperial)
1.300 L
Package Weight (Metric)
0.590 kg
Super-Safeway® Connector with Locking Blade, 2 Pole/3 Wire, NEMA L6-20, 250V

2748

Super-Safeway® Connector with Locking Blade, 2 Pole/3 Wire, NEMA L6-20, 250V
Safeway® Flanged Receptacle with Locking Blade, 2 Pole/3 Wire, NEMA L6-20, 250V

2748MB

Safeway® Flanged Receptacle with Locking Blade, 2 Pole/3 Wire, NEMA L6-20, 250V
Safeway® Plug with Locking Blade, 2 Pole/3 Wire, NEMA L6-20, 250V, Yellow

26T48YL

Safeway® Plug with Locking Blade, 2 Pole/3 Wire, NEMA L6-20, 250V, Yellow
Safeway® Connector, 2 Pole/2 Wire, NEMA L2-20, 250V

27T07

Safeway® Connector, 2 Pole/2 Wire, NEMA L2-20, 250V
Safeway® Connector with Locking Blade, 2 Pole/3 Wire, NEMA L6-20, 250V, Yellow

27T48YL

Safeway® Connector with Locking Blade, 2 Pole/3 Wire, NEMA L6-20, 250V, Yellow
Super-Safeway® Plug with Locking Blade, 2 Pole/2 Wire, NEMA L2-20, 250V

2607

Super-Safeway® Plug with Locking Blade, 2 Pole/2 Wire, NEMA L2-20, 250V
Super-Safeway® Connector with Locking Blade, 2 Pole/2 Wire, NEMA L2-20, 250V

2707

Super-Safeway® Connector with Locking Blade, 2 Pole/2 Wire, NEMA L2-20, 250V
Watertite Extreme Connector for Male Receptacle, 2 Pole/3 Wire, NEMA 6-20 250V, F2, Silicone Husk

15W48MB

Watertite Extreme Connector for Male Receptacle, 2 Pole/3 Wire, NEMA 6-20 250V, F2, Silicone Husk
Safeway® Connector, 2 Pole/3 Wire, NEMA 6-20, 250V

5469

Safeway® Connector, 2 Pole/3 Wire, NEMA 6-20, 250V
20 Amp Watertite® Pin & Sleeve Receptacle with Flip Lid, 2 Pole/3 Wire, 250V, Blue

320R6W

20 Amp Watertite® Pin & Sleeve Receptacle with Flip Lid, 2 Pole/3 Wire, 250V, Blue

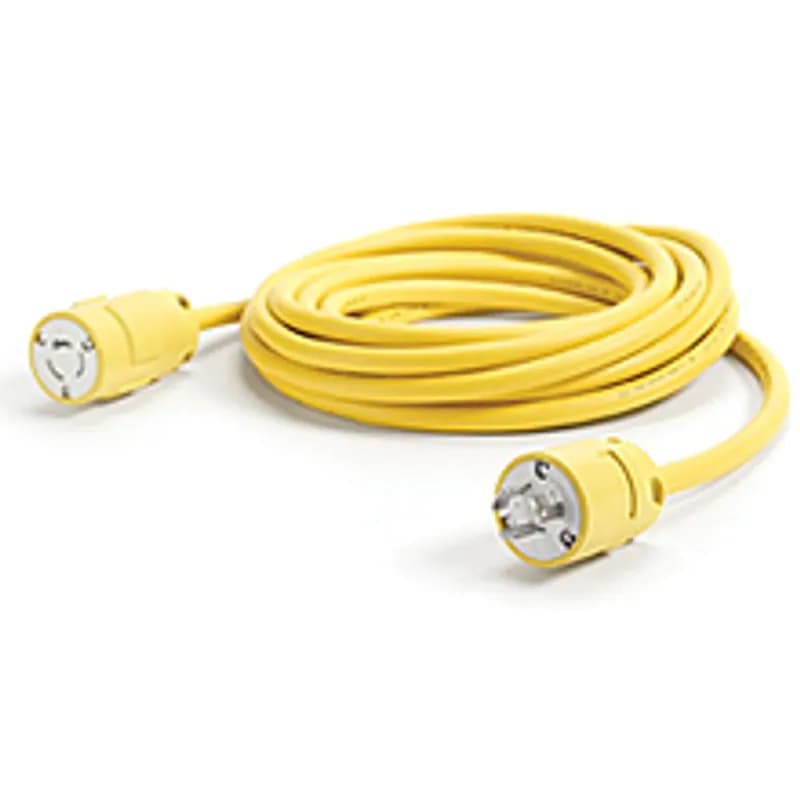

Super-Safeway® Cordset 14 Gauge SOOW, 2 Pole/3 Wire, Cordset Length 7.62m (25.0' ), NEMA L6-20, 250V
