Woodhead 1645-12 - Haztex® Incandescent Hazardous and Wet Location Hand Lamp Low Voltage for Use With Low Voltage Workstation, 75W with 12V Lamp, 14/3 SOOW Secondary Cord Type, Cord Length 15.24m (50.0' )
Woodhead

1645-12

Alternate Item Number: 1301040038

UPC: 786788007225

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The Woodhead Haztex® Incandescent Hazardous and Wet Location Hand Lamp (SKU: 1645-12) is a vital safety tool for environments classified under NEC Article 500. This low-voltage lamp operates at 12V AC, significantly reducing electrical shock hazards in wet or conductive locations, a critical advantage over higher voltage alternatives. The fixture is designed for use with low-voltage workstations, with the transformer required to remain outside conductive zones. It features a robust 75W A21 incandescent bulb, providing clear illumination for detailed work. Construction includes a durable aluminum housing and a comfortable nylon handle, ensuring resistance to corrosion and impact in harsh industrial settings. The lamp is equipped with a 15.24m (50 ft) 14/3 SOOW secondary cord, offering excellent flexibility and durability for extended reach in demanding applications. Certified for hazardous locations, it meets Class I, Division 1, Groups C & D; Class II, Division 1, Groups F & G; and Class I, Zone 1, Group IIB. The T3B temperature rating further ensures safe operation. Its NEMA 4X rating makes it suitable for dusty, wet, and corrosive conditions, ideal for oil & gas, mining, petrochemical, manufacturing, and utility industries. Applications include maintenance, inspection of confined spaces, assembly, quality control, emergency troubleshooting, and construction. Woodhead, with over a century of expertise, delivers this safety-certified lighting solution, backed by UL File No. E30252 and CSA File No. LR39801. For optimal performance, use with Woodhead's low-voltage workstation transformers (e.g., Engineering No. 1678-12) and approved 12V, 75W A21 bulbs (Order No. 130191-0031).
  • Low-voltage 12V AC operation for enhanced safety in wet/conductive areas
  • 75W A21 incandescent bulb for bright, clear illumination
  • Durable aluminum housing with nylon handle for industrial resilience
  • 15.24m (50 ft) 14/3 SOOW cord for extended reach and flexibility
  • Certified for Class I/II, Division 1 & Class I, Zone 1 hazardous locations

Specifications

Brand Name
Woodhead
Lamp Type
A21
Lumens
1000
Mounting
Hand Held
Special Features
Class I, Division 1, Groups C and D (flammable gases and vapors); Class II, Division I, Groups F and G (ignitable dust); Class I, Zone 1, Group IIB (UL)
Sub Brand
Haztex
Type
Specialty Light
Voltage Rating
12V AC/DC
Wattage
100W
Package Dimensions (L x W x H)
18.75 IN x 9.5 IN x 26 IN
Package Dimensions (L x W x H)
47.625 cm x 24.13 cm x 66.04 cm
Package Weight (Imperial)
9.000 L
Package Weight (Metric)
4.082 kg

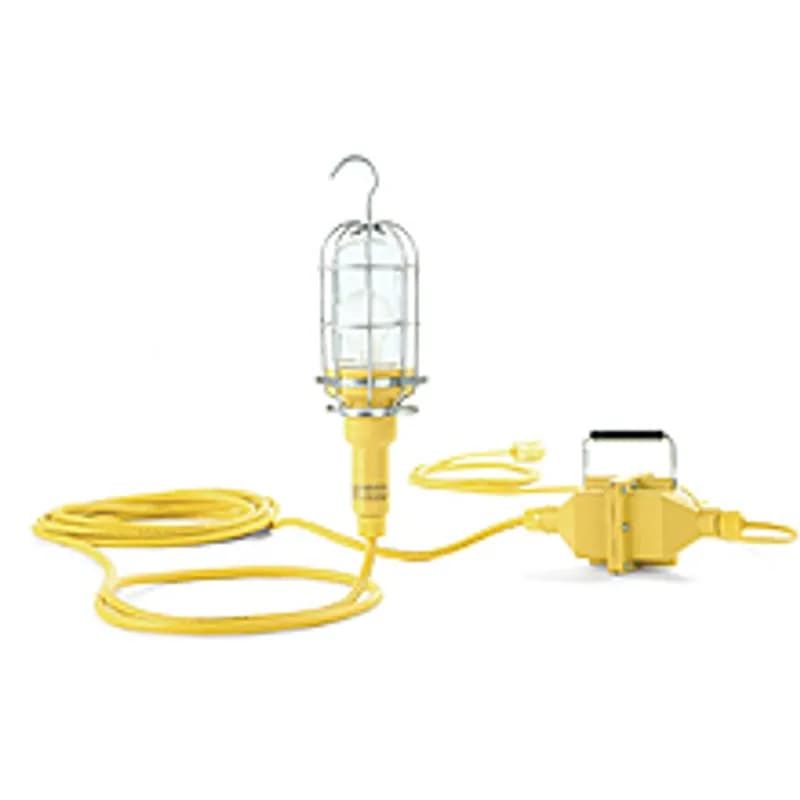

Watertite® Wet Location Incandescent Hand Lamp, 100W for use with Low Voltage Workstation with Screw Release TEFLON Guard, Cord Type 14/2 SOOW, 15.24m (50.0' ) Cord Length

1646-12

Watertite® Wet Location Incandescent Hand Lamp, 100W for use with Low Voltage Workstation with Screw Release TEFLON Guard, Cord Type 14/2 SOOW, 15.24m (50.0' ) Cord Length
Super-Safeway™ 100W 12V Halogen Floodlight Magnet Mount no Guard for use with Low voltage workstation, Cord Type 16/3 SOOW, Cord Length 7.62m (25.0' )

8500M

Super-Safeway™ 100W 12V Halogen Floodlight Magnet Mount no Guard for use with Low voltage workstation, Cord Type 16/3 SOOW, Cord Length 7.62m (25.0' )
Watertite® Wet Location Incandescent Hand Lamp, 100W with LOVOLT® In-line Transformer 230V - 12V, with Steel Screw Release Guard, Cord Type 14/2 SOOW, 15.24m (50.0') Cord Length

1621-12B-P

Watertite® Wet Location Incandescent Hand Lamp, 100W with LOVOLT® In-line Transformer 230V - 12V, with Steel Screw Release Guard, Cord Type 14/2 SOOW, 15.24m (50.0') Cord Length

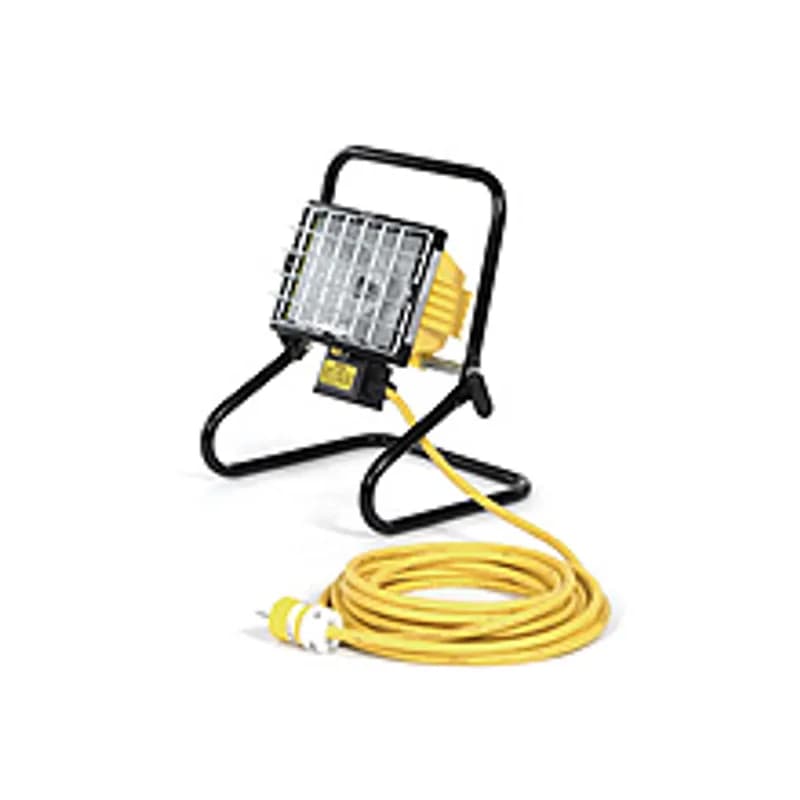

Super-Safeway™100W 12V Halogen Floodlight Stand Mount, no Guard

8500

Super-Safeway™100W 12V Halogen Floodlight Stand Mount, no Guard

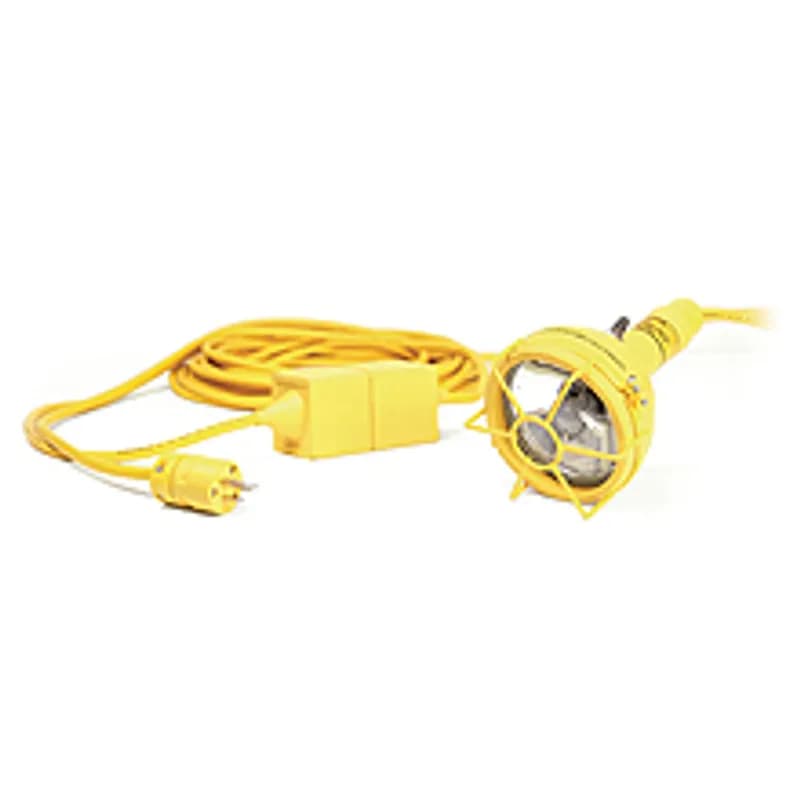

Watertite® Wet Location100W Spotlight with In-line Transformer, Switch Screw Release Guard, 14/2 SOOW, Overall Length 7.62m (50.0' )

1691-12BS

Watertite® Wet Location100W Spotlight with In-line Transformer, Switch Screw Release Guard, 14/2 SOOW, Overall Length 7.62m (50.0' )
Watertite® Wet Location Hand Lamp 12V 100W for use with Low Voltage Workstation with Screw Release Guard 14/2 SOOW Cord Type, 15.24m (50.0' ) Cord Length

1649-12

Watertite® Wet Location Hand Lamp 12V 100W for use with Low Voltage Workstation with Screw Release Guard 14/2 SOOW Cord Type, 15.24m (50.0' ) Cord Length
Super-Safeway™ Twin Tube 80W Fluorescent Work Light 12V, Cord Type 12/3 SOOW Feed Thru 1.22m (4.0' ) Cord Length

1052-PL12

Super-Safeway™ Twin Tube 80W Fluorescent Work Light 12V, Cord Type 12/3 SOOW Feed Thru 1.22m (4.0' ) Cord Length
Super-Safeway™ Twin Tube 80W Fluorescent Work Light 12V, Cord Type 12/3 SOOW 7.62m (25.0' ) Cord Length

1050-PL12

Super-Safeway™ Twin Tube 80W Fluorescent Work Light 12V, Cord Type 12/3 SOOW 7.62m (25.0' ) Cord Length
Super-Safeway™ Rubber Hand Lamp, 75W for use with Low Voltage Workstation with Screw Release Guard, Cord Type 14/2 SOOW, 15.24m (50.0' ) Cord Length

1648-12

Super-Safeway™ Rubber Hand Lamp, 75W for use with Low Voltage Workstation with Screw Release Guard, Cord Type 14/2 SOOW, 15.24m (50.0' ) Cord Length
Haztex® Hazardous and Wet Location Stringlight 100W with 5 Lamps 12/3 SOOW 19.81m (65.0' )Length

340510A

Haztex® Hazardous and Wet Location Stringlight 100W with 5 Lamps 12/3 SOOW 19.81m (65.0' )Length
Super-Safeway™ Twin Tube 64W Fluorescent Work Light 12V, Cord Type 12/3 SJOOW Feed Thru 7.62m (25.0' ) Cord Length

1051-12

Super-Safeway™ Twin Tube 64W Fluorescent Work Light 12V, Cord Type 12/3 SJOOW Feed Thru 7.62m (25.0' ) Cord Length
Super-Safeway™ Twin Tube 64W Fluorescent Work Light 12V, Cord Type 14/3 SJOOW, 7.62m (25.0' ) Cord Length

1050-12

Super-Safeway™ Twin Tube 64W Fluorescent Work Light 12V, Cord Type 14/3 SJOOW, 7.62m (25.0' ) Cord Length

Frequently Asked Questions about Woodhead

What certifications and standards do Woodhead products comply with?

Woodhead products are certified to multiple rigorous industrial standards, including UL Listed, CSA Certified, NSF Certified, and IP69K Rated. Their wiring devices meet FDA compliance requirements for food-related applications, and are tested to international standards like JIS Z2801/ISO 22196 for antimicrobial performance. These certifications demonstrate Woodhead's commitment to safety, durability, and quality across industrial, food processing, and harsh environment applications.

What industries and applications are Woodhead products used for?

Woodhead products serve a wide range of industrial applications including manufacturing, construction sites, food and beverage processing, shipyards, utility plants, and maintenance operations. Their specialized wiring devices and outlet boxes are designed for harsh environments like wet locations, petrochemical facilities, and heavy-duty industrial settings, with specific product lines for assembly stations, workstations, and portable power needs.

What are the key features of Woodhead products?

Woodhead products feature advanced industrial-grade design with key capabilities including IP69K water resistance, FDA-compliant materials, antimicrobial silicone rubber construction, and UL/CSA certifications. Their product lines span wet-location wiring devices, heavy-duty industrial connectors, portable lighting, and control solutions engineered for extreme environments like food processing, petrochemical, and manufacturing applications.

What are the main product lines offered by Woodhead?

Woodhead offers a comprehensive range of industrial connectivity solutions, including circular connectors, cordsets, and connectivity products for automation and industrial environments. Their product lines cover multiple series such as the 29W, 35, 32G, and 1000-series connectors, which are designed for robust industrial applications with various configurations and specifications.

What communication protocols do Woodhead products support?

Woodhead products support a comprehensive range of industrial communication protocols, including Modbus RTU, PROFIBUS DP, PROFINET, EtherNet/IP, CANopen, and DeviceNet. These protocols enable flexible connectivity across multiple industrial automation platforms, supporting high-speed data transmission and seamless network integration for diverse industrial applications.
