Woodhead 1635-12B - Haztex® Incandescent Hazardous and Wet Location Hand Lamp with LOVOLT® In-line Transformer, 100W, 16/3 SOOW Primary Cord Type, Cord Length 7.62m (50.0' )
Woodhead

1635-12B

Alternate Item Number: 1301050046

UPC: 786788625443

Documents & Media
Specification Sheet

Contact for Pricing

Overview

Illuminate hazardous and wet locations with the Woodhead Haztex® Incandescent Hazardous and Wet Location Hand Lamp, SKU 1635-12B. This 100W incandescent hand lamp meets NEC Article 500 requirements and is certified for Class I, Division 1, Groups C & D; Class II, Division 1, Groups F & G; and Class I, Zone 1, Group IIB, with a UL temperature rating of T3B. The LOVOLT® in-line transformer converts 120V AC primary voltage to 12V AC secondary voltage for enhanced safety in explosive or wet environments. The 100W incandescent bulb ensures strong illumination for detailed work. The aluminum housing with nylon handle and IP67 rating protects against dust and water, making it suitable for NEMA 4X environments. Durability is ensured with a 16/3 SOOW primary cord resistant to oil, water, and abrasion. The 7.62m (25.0') cord length provides extended reach for inspections and repairs. The handheld lamp features a NEMA 5-15 configuration on the primary cord. Certifications and Ratings: - Class I, Division 1, Groups C & D - Class II, Division 1, Groups F & G - Class I, Zone 1, Group IIB - UL temperature rating: T3B - IP67 rating - NEMA 4X rated Key Features: - Hazardous and wet location rated - LOVOLT® in-line transformer (120V AC to 12V AC) - 100W incandescent bulb - 16/3 SOOW cord (7.62m / 25.0') - Aluminum housing with nylon handle - NEMA 5-15 configuration
  • Hazardous Location Rated: Class I/II, Div 1, Zone 1; T3B UL Temp Rating
  • Wet Location Rated: IP67, NEMA 4X
  • LOVOLT® In-line Transformer: 120V AC Primary to 12V AC Secondary
  • 100W Incandescent Bulb for bright illumination
  • Durable 16/3 SOOW cord, 7.62m (25.0') length

Specifications

Brand Name
Woodhead
Lamp Type
A21
Lumens
750
Mounting
Hand Held
Special Features
Class I, Division I, Groups C and D (flammable gases and vapors); Class II, Division I, Groups F and G (ignitable dust); Class I, Zone I, Group IIB (UL)
Sub Brand
Haztex
Type
Specialty Light
Voltage Rating
120VAC 60 HZ
Wattage
75W
Package Dimensions (L x W x H)
4 IN x 6 IN x 2 IN
Package Dimensions (L x W x H)
10.16 cm x 15.24 cm x 5.08 cm
Package Weight (Imperial)
25.000 L
Package Weight (Metric)
11.340 kg

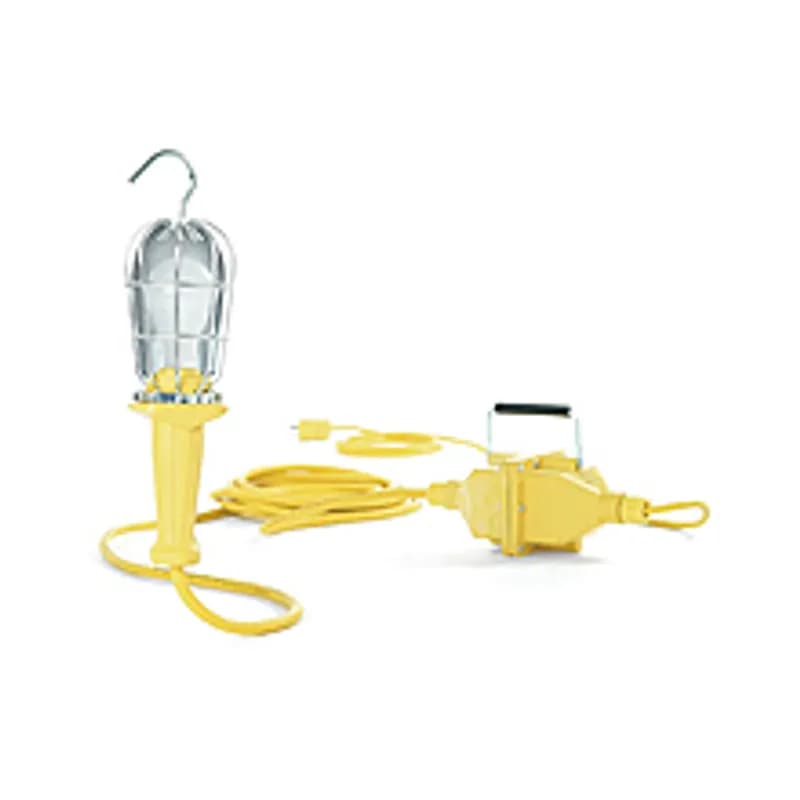

Super-Safeway™ Rubber Hand Lamp 75W with LOVOLT® In-line Transformer Screw Release Reflector Guard 14/2 SOOW Cord Type, 7.62m (50.0' ) Cord Length

1601-12B

Super-Safeway™ Rubber Hand Lamp 75W with LOVOLT® In-line Transformer Screw Release Reflector Guard 14/2 SOOW Cord Type, 7.62m (50.0' ) Cord Length
Haztex® Incandescent Hazardous and Wet Location Hand Lamp with LOVOLT® In-line Transformer 100W, 16/3 SOOW Primary Cord Type, Cord Length 7.62m (25.0' )

1635-12A

Haztex® Incandescent Hazardous and Wet Location Hand Lamp with LOVOLT® In-line Transformer 100W, 16/3 SOOW Primary Cord Type, Cord Length 7.62m (25.0' )
Haztex® Incandescent Hazardous and Wet Location Hand Lamp with LOVOLT® In-line Transformer, 100W, 16/3 SOOW Primary Cord Type, Cord Length 30.48m (100.0' )

1635-12D

Haztex® Incandescent Hazardous and Wet Location Hand Lamp with LOVOLT® In-line Transformer, 100W, 16/3 SOOW Primary Cord Type, Cord Length 30.48m (100.0' )
Super-Safeway™ Rubber Hand Lamp 75W with LOVOLT® In-line Transformer Screw Release Guard, Cord Type 14/2 SOOW, 7.62m (25.0' ) Cord Length

1600-12A

Super-Safeway™ Rubber Hand Lamp 75W with LOVOLT® In-line Transformer Screw Release Guard, Cord Type 14/2 SOOW, 7.62m (25.0' ) Cord Length
Super-Safeway™ Rubber Hand Lamp 75W with LOVOLT® In-line Transformer Screw Release Reflector Guard 14/2 SOOW Cord Type, 7.62m (25.0' ) Cord Length

1601-12A

Super-Safeway™ Rubber Hand Lamp 75W with LOVOLT® In-line Transformer Screw Release Reflector Guard 14/2 SOOW Cord Type, 7.62m (25.0' ) Cord Length
Super-Safeway™ Rubber Hand Lamp 75W with LOVOLT® In-line Transformer Screw Release Guard, Cord Type 14/2 SOOW, 7.62m (50.0' ) Cord Length

1600-12B

Super-Safeway™ Rubber Hand Lamp 75W with LOVOLT® In-line Transformer Screw Release Guard, Cord Type 14/2 SOOW, 7.62m (50.0' ) Cord Length

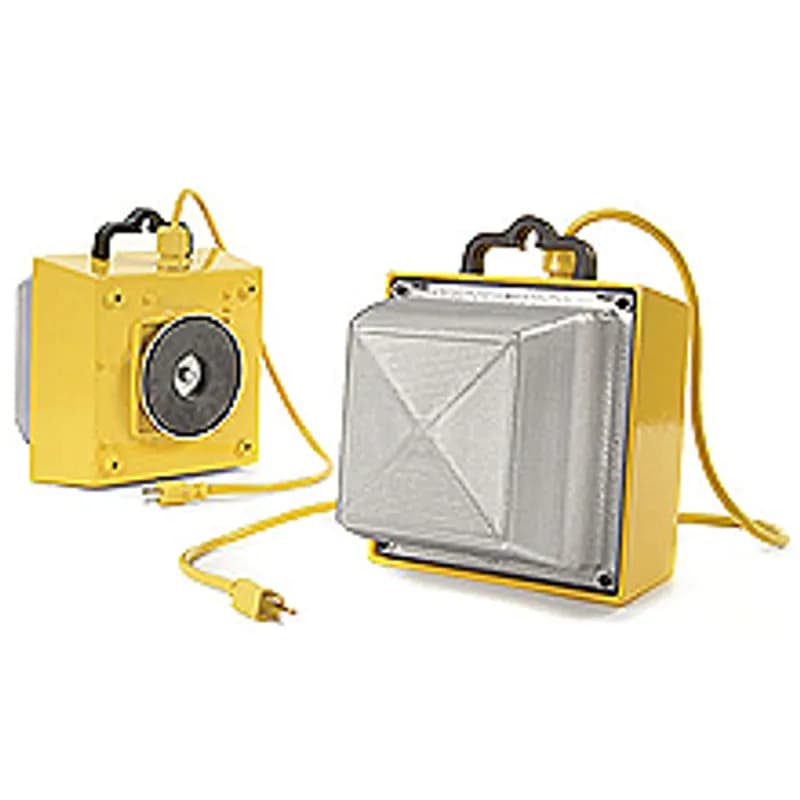

Watertite® Wet Location 70W Metal Halide Magnet Mount Area Light Molded, Cord Type 16/3 SJTOW, Cord Length 3.04m (10.0' )

8565-MH

Watertite® Wet Location 70W Metal Halide Magnet Mount Area Light Molded, Cord Type 16/3 SJTOW, Cord Length 3.04m (10.0' )
Super-Safeway™ Twin Tube 80W Fluorescent Work Light, Cord Type 16/3 SJTW 7.62m (25.0' ) Cord Length

1050-PL

Super-Safeway™ Twin Tube 80W Fluorescent Work Light, Cord Type 16/3 SJTW 7.62m (25.0' ) Cord Length
Super-Safeway™ Twin Tube 80W Fluorescent Work Light with 12/3 SJTW Feed Thru 7.62m (25.0' ) Cord Length

1051-PL

Super-Safeway™ Twin Tube 80W Fluorescent Work Light with 12/3 SJTW Feed Thru 7.62m (25.0' ) Cord Length

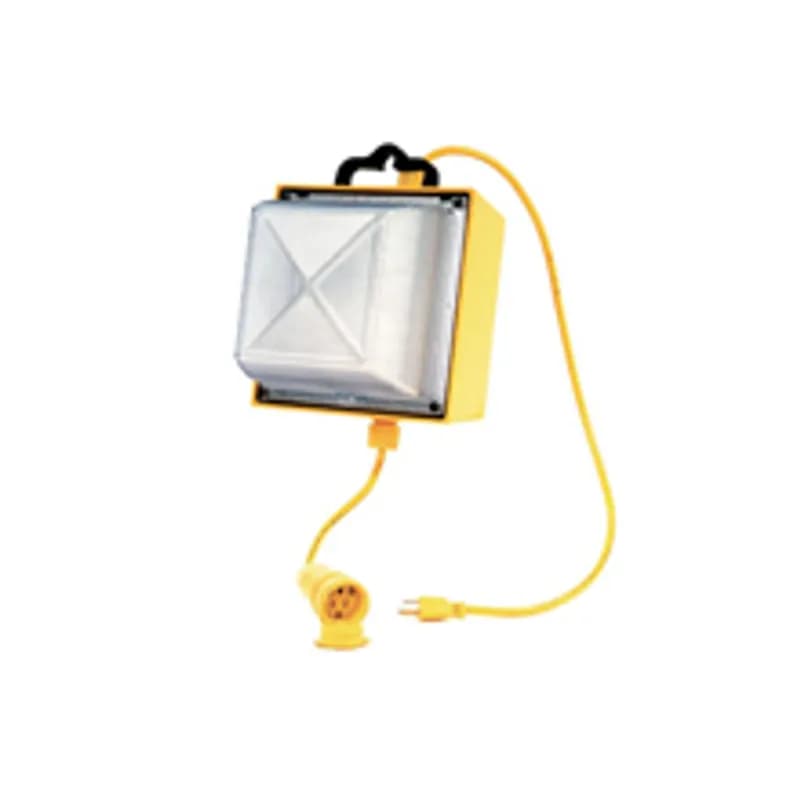

Watertite® Wet Location 100W HPS Magnet Mount Area Light with Feed Thru Molded, Cord Type 16/3 SJTOW, Cord Length 3.04m (10.0' )

8565F

Watertite® Wet Location 100W HPS Magnet Mount Area Light with Feed Thru Molded, Cord Type 16/3 SJTOW, Cord Length 3.04m (10.0' )

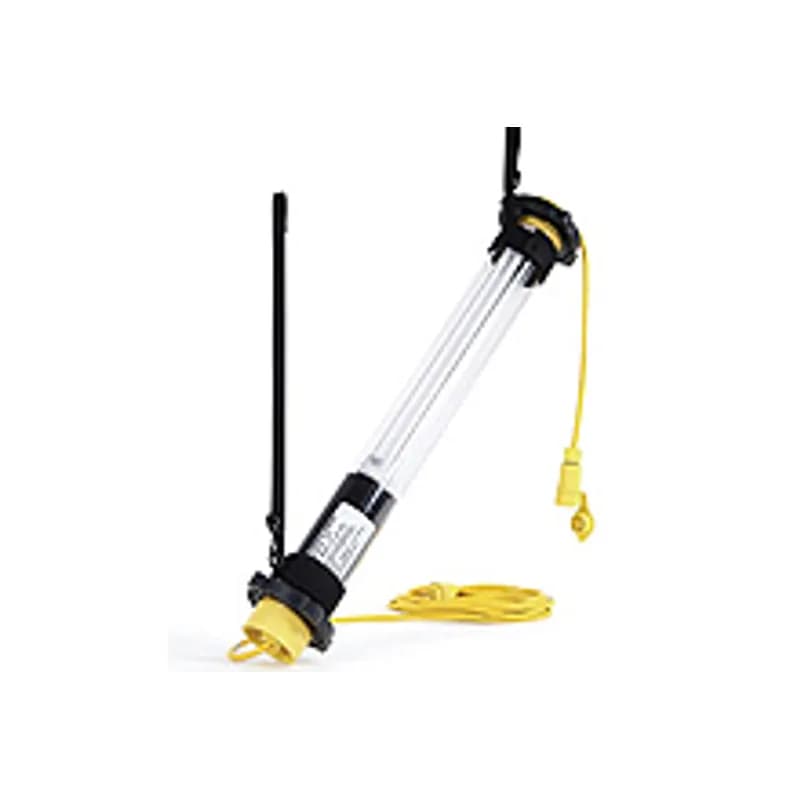

Super-Safeway™ Wet Location 80W Fluorescent Tube Light with 2 Lamps, Cord Type 16/3 SOOW, Cord Length 7.62m (25.0' )
